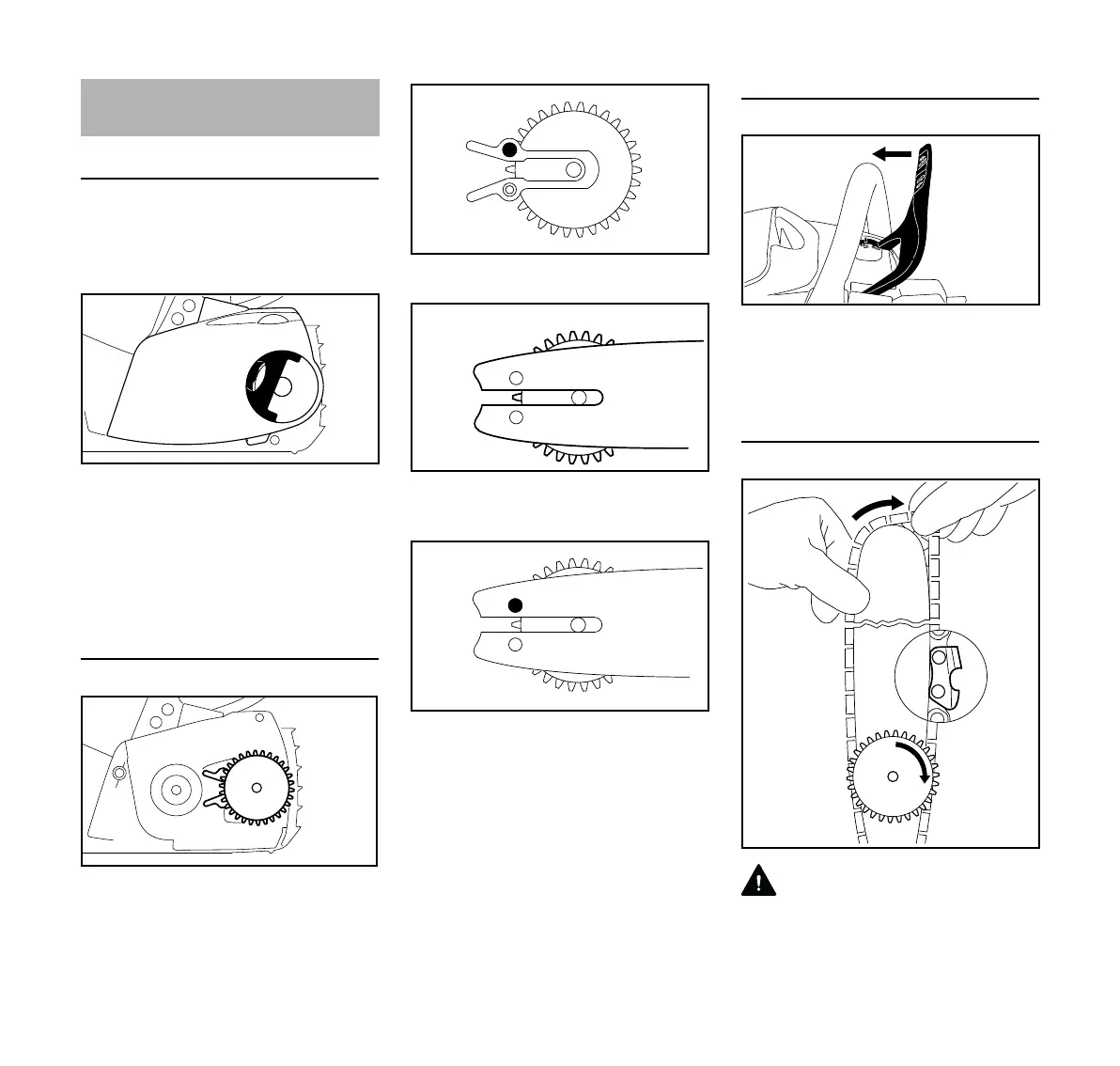

Removing the chain sprocket cover
N Set hand guard to ƒ
N Remove the battery from the
machine
N Swing grip (1) into position (until it
engages)
N Turn the wing nut (2) to the left until
it hangs loosely in the chain
sprocket cover (3)
N Remove chain sprocket cover (3)
Mounting the tensioning gear
N Remove and reverse tensioning
gear (1)
N Remove screw (2)
N Position tensioning gear (1) and
guide bar (3) relative to one another
N Insert and tighten screw (2)
Releasing the chain brake
N Pull hand guard towards the front
handle until it engages audibly and
the hand guard is in the position ‚
– chain brake is released
Fitting the saw chain
WARNING
Put on protective gloves – risk of injury
by the sharp cutters
Mounting the Bar and Chain
(quick chain tensioner)
1
3999BA001 KN
3
2
1
3999BA029 KN
2310BA015 KN
2
1
3
2310BA016 KN
2
2310BA017 KN
3999BA010 KN
1
181BA012 KN
