MSA 200 C
English
72
AL 100 charger
The charger waits with the charging
procedure until the battery has cooled
off on its own. The battery is cooled by
the heat emitted to the ambient air.
Charging finished
Once the battery is completely charged,
the charger switches off automatically,
then:
the LEDs on the battery go out
the LED on the charger goes out
the fan on the charger switches off
(if present in the charger)
Remove the charged battery from the
charger after charging.
Four light emitting diodes show the
battery's state of charge and any
problems that occur on the battery or
power tool.
N Press button (1) to activate the
display – the display goes off
automatically after 5 seconds.
The light emitting diodes can glow or
flash green or red.
During Charging Process
The light emitting diodes glow
continuously or flash to indicate the
progress of charge.
A green flashing light emitting diode
indicates the capacity that is currently
being charged.
The light emitting diodes on the battery
go off automatically when the charge
process is completed.
If the light emitting diodes on the battery
flash or glow red – see "If the red light
emitting diodes glow continuously /
flash".

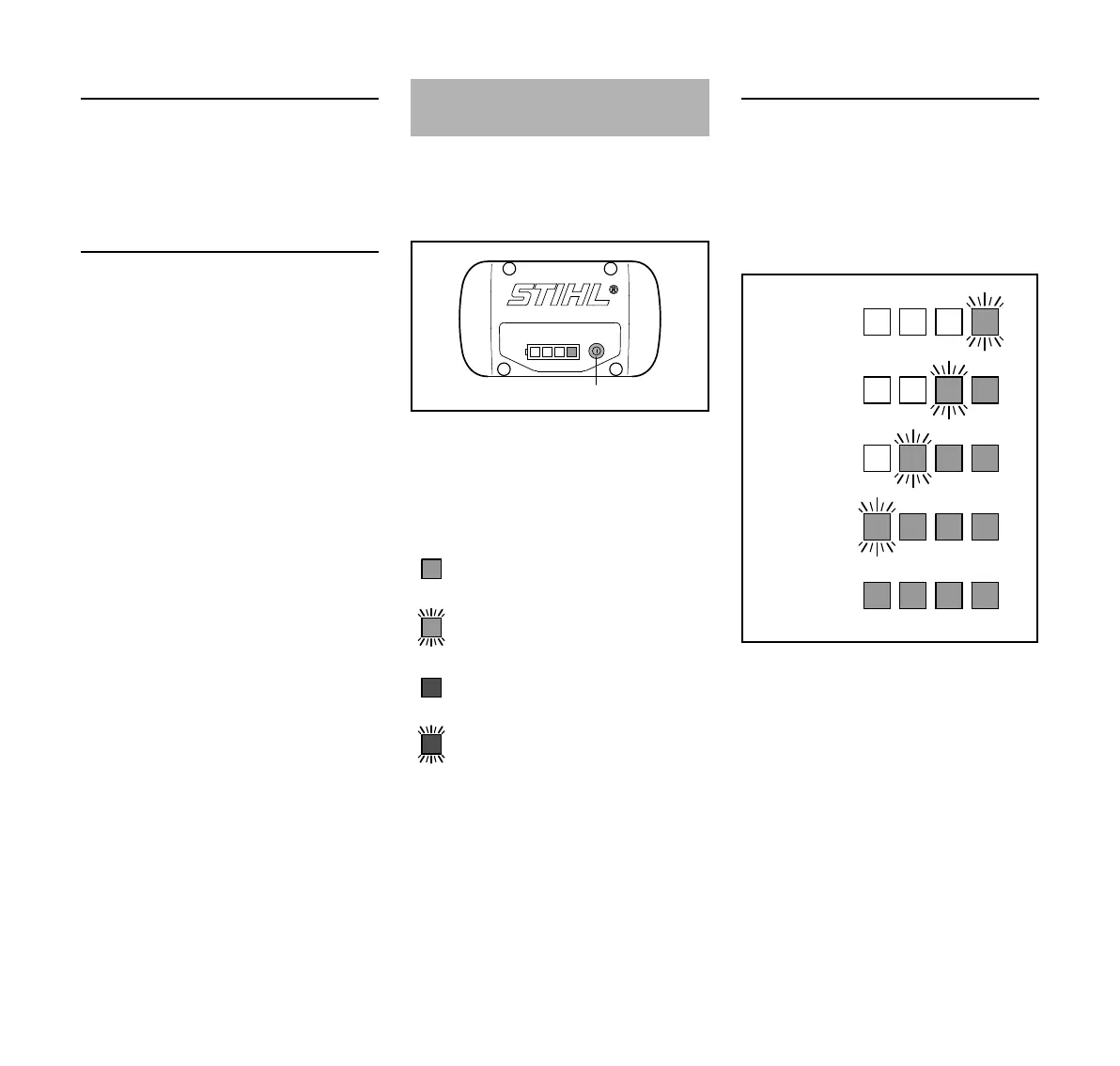

Light Emitting Diodes (LED)
on Battery
Light emitting diode glows con
-
tinuously green.
Light emitting diode flashes
green.
Light emitting diode glows con
-
tinuously red.
Light emitting diode flashes red.
1
3901BA010 KN
3901BA016 KN
80 - 100 %
60 - 80 %
40 - 60 %
20 - 40 %
0 - 20 %
