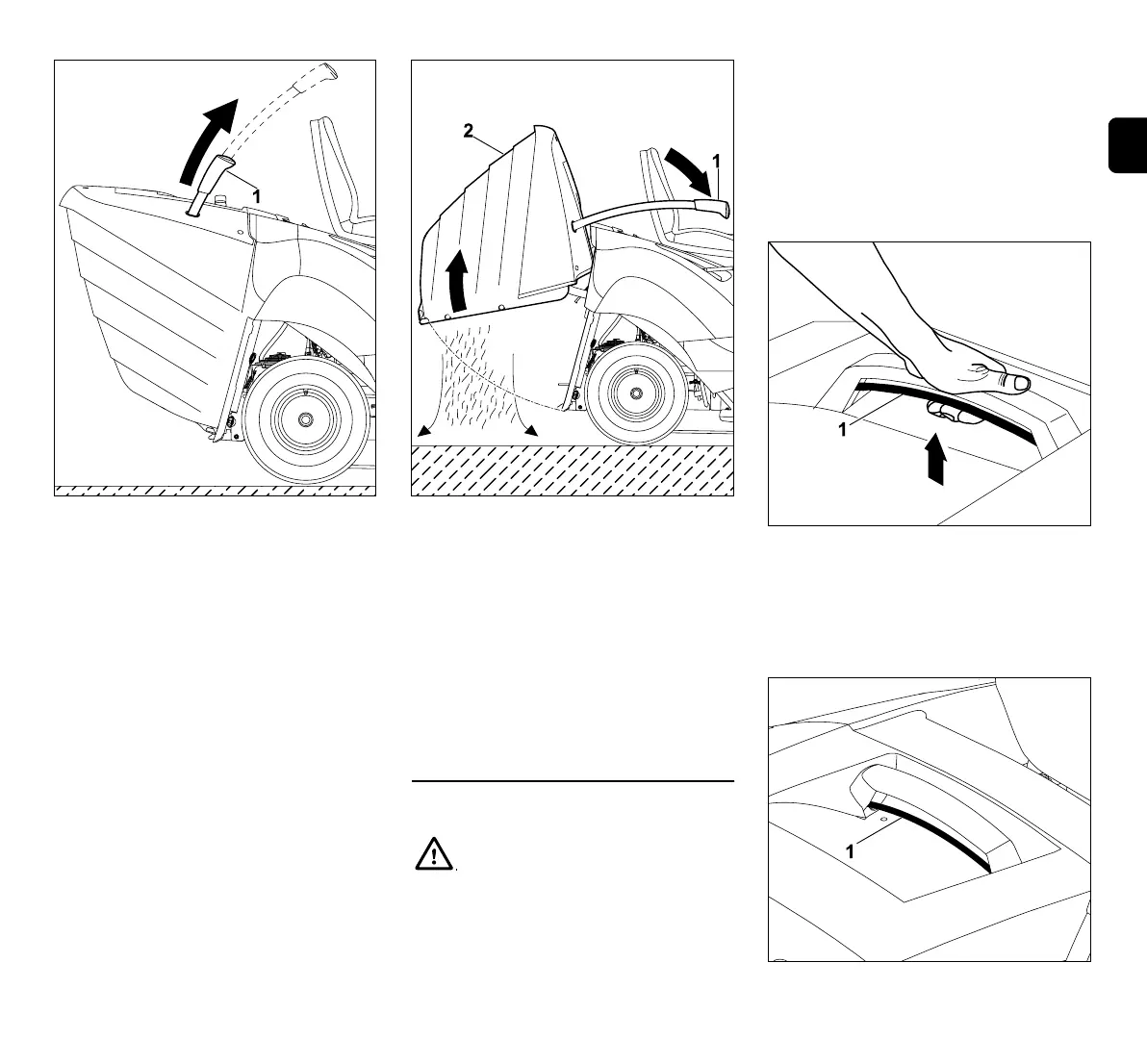

Pull the grass catcher box emptying lever
(1) upwards.
Press the grass catcher box emptying
lever (1) forward (in direction of seat). The
grass catcher box (2) swings upwards and
the clippings fall out.
Slowly move the grass catcher box
emptying lever towards the rear and
allow the grass catcher box to re-
engage with the rear panel.
Press the grass catcher box emptying
lever downwards and move to the initial
position.
8.13 Grass catcher box release lever
The grass catcher box release lever is
located underneath the grass catcher box
handle.
The grass catcher box release lever must
be pulled upwards and held before
attaching or detaching the grass catcher
box.
Releasing the grass catcher box:
Pull grass catcher box release lever (1)
fully upwards and hold.
The grass catcher box is released and
can be removed.
Locking the grass catcher box:
Warning:
Ensure that you do not pinch your
fingers when actuating the grass
catcher box release lever.
