0478 193 9905 C - EN
90

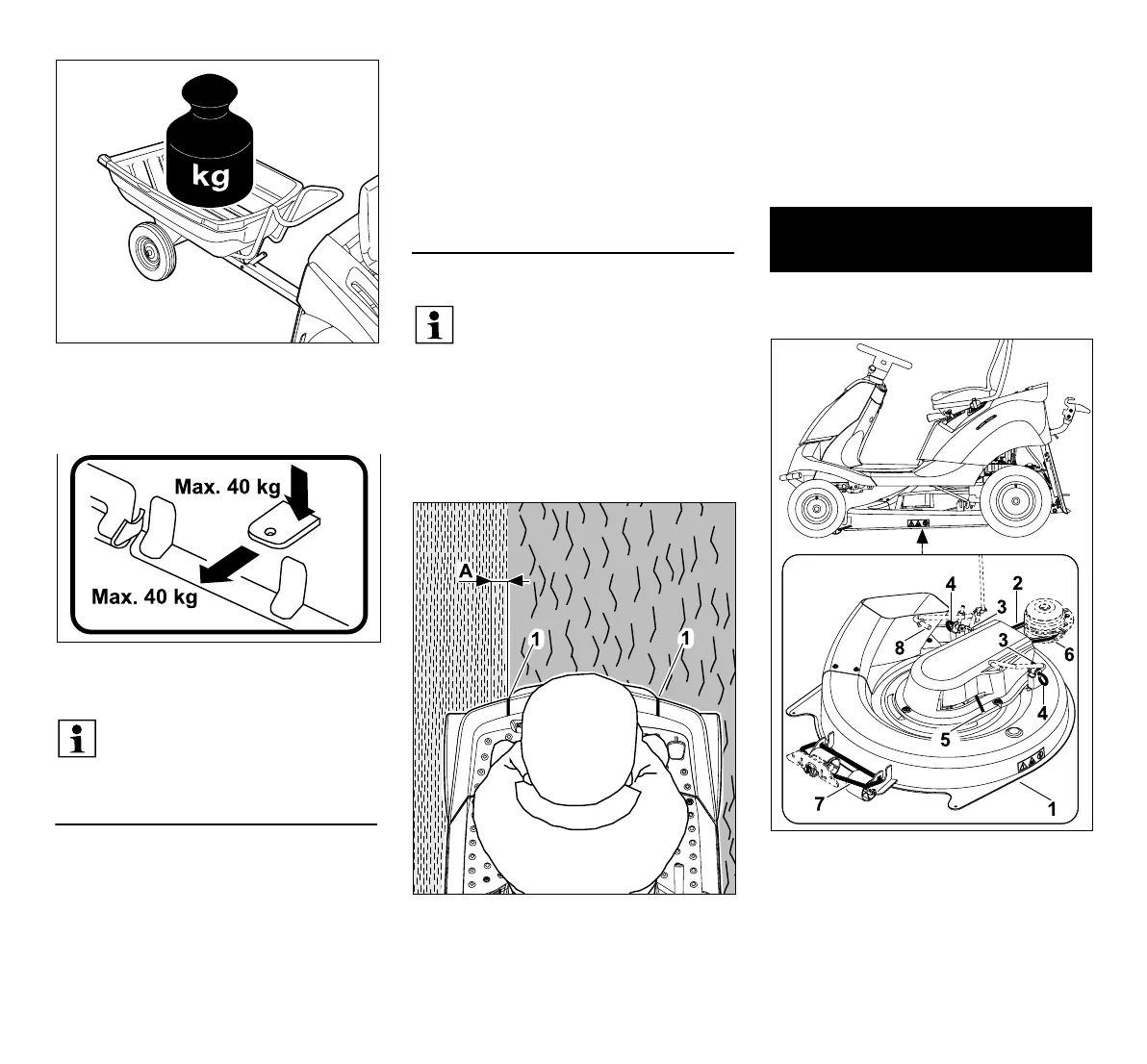

Maximum trailer weight on a level surface
= 250 kg
Maximum trailer weight on a maximum 10°
inclination = 100 kg
Maximum coupling load = 40 kg
Maximum pulled load = 40 kg
12.12 Operating on slopes
● Check the braking function before
operating the mower on slopes.
(Ö 12.5)
● Drive slopes in a longitudinal direction.
Driving transversely increases the
danger of tipping over – note the
maximum slope inclination. (Ö 4.7)
● Avoid changes of direction on slopes –
if changes of direction cannot be
avoided, they must be executed with
particular care.
12.13 Guide
In order to prevent uncut grass being left
between several mowing strips, the
machine is equipped with a guide.
● The user sits on the driver seat.
When the guide (1) is positioned precisely
at the mowing edge (transition from
already mown lawn to unmown lawn) as
seen from the driver's seat, the lawn is cut
with an overlap (A) of approx. 5 cm.
This overlap ensures that the mowing
blades cut approx. 5 cm into the already
cut mowing strip. This ensures that no
uncut grass is left between the two mowing
strips.
Overview of mowing deck components
in installed condition
1 Mowing deck
2 V-belt
3 Cotter pin
4 Retaining pin
A pulled load of 40 kg at the trailer
coupling is achieved when pulling a
trailer with a weight of 250 kg on a
level surface.
Note
The accuracy of the guide depends
on the body size of the user and on
the adjustment of the driver's seat.
13. Mowing deck
