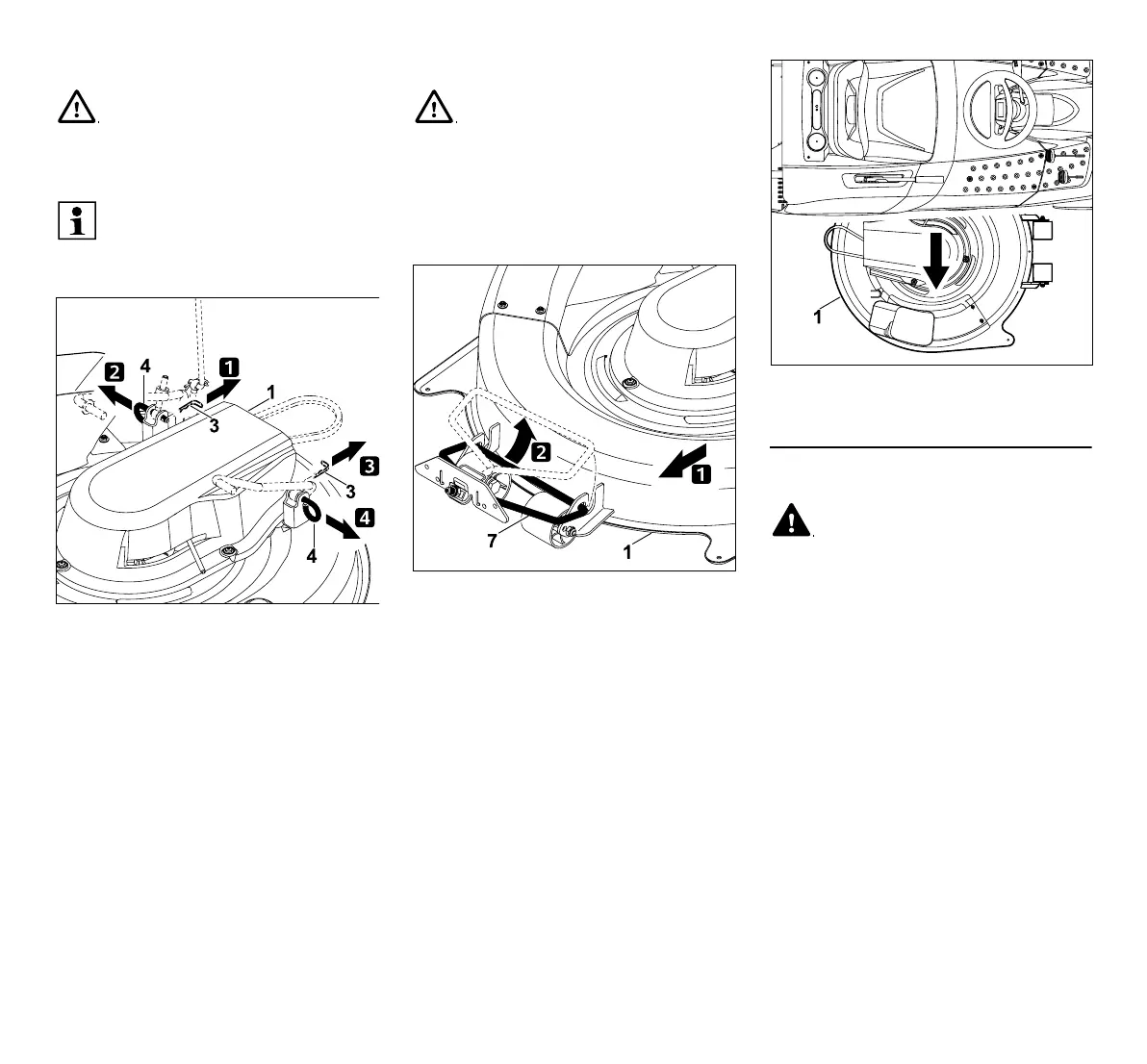

Detaching the mowing deck at the rear
Step 1:
Remove the cotter pin (3) from the
retaining pin (4).
Step 2:
Lift up the mowing deck (1) slightly and
hold. Detach and remove the retaining pin
(4).
Step 3:
Remove the cotter pin (3) from the
retaining pin (4).
Step 4:
Lift up the mowing deck (1) slightly and
hold. Detach and remove the retaining pin
(4).
● Carefully and slowly set down the
mowing deck.
Detaching the mowing deck at the front
Push mowing deck (1) forwards and
detach at front mowing deck mounting (7).
Removing the mowing deck
● Select cutting level 6.
Pull out the mowing deck (1) on the right-
hand side.
13.2 Installing the mowing deck
● Park the machine on level and solid
ground.
● Stop the engine. (Ö 12.3)
● Remove the ignition key.
● Engage the parking brake. (Ö 8.10)
● Select the highest cutting level.
● Remove the grass catcher box.
(Ö 12.10)
● Remove the discharge chute. (Ö 14.5)
Pushing in the mowing deck
● Select cutting level 6.
Danger of pinching:
Before pulling out the retaining pin,
ensure that no body parts (hands,
fingers, feet, etc.) are positioned
directly under the mowing deck.
Note
To facilitate removal, note and
carefully observe the specified
sequence.
Danger of pinching!
Before detaching, ensure that no
body parts (hands, fingers, feet,
etc.) are positioned directly under
the mowing deck.
After detaching the mowing deck,
the front mowing deck mounting
automatically swings upwards.
Risk of injury!
Prior to all operations on the
mowing deck, carefully read and
observe the section "For your
safety". (Ö 4.)
