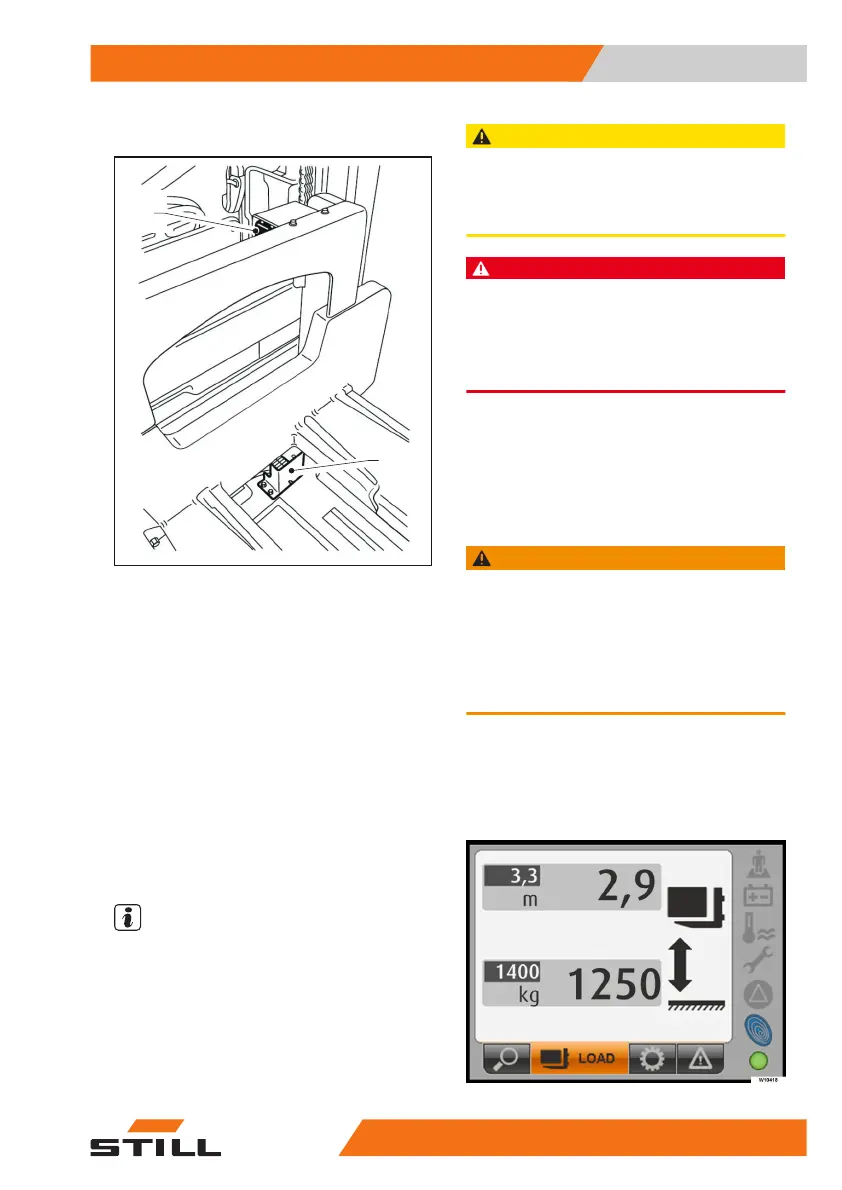

Version "DLC 3"
2395
Y
X
The "DLC 3" option allows you to:
●
Manage the residual capacity of the truck in
relation to the weight of the load and the
height of the mast.
●
Manage the truck's performance data.
This option is not compatible with the cold
store option.
The "DLC 3" option system is equipped with a
height sensor consisting of two distinct com-
ponents:
●
(X), called the slave.
●
(Y), called the master.
The components (X) and (Y) communicate
with each other using ultrasound.
NOTE
For trucks with a triple mast exceeding 4 me-
tres, the component (Y) moves. The compo-
nent (Y) is located in the lower crossmember
of the mast.
CAUTION
Risk of loss of warranty.
The unit (X) contains a battery. Only a technician au-
thorised by the service centre may replace this bat-
tery.
DANGER
The system detects the loading weight present on
the forks with a tolerance of ±50 kg.
Consider the aforementioned tolerance during truck
manoeuvers.
Never exceed the maximum capacity of the truck.
Managing residual capacity
The "DLC 3" option shows relative values for
height and load. This option is, however, only
a driving aid and the operator must remain
constantly vigilant.
WARNING
There is a risk of hitting a shelf or a load
The values displayed on the screen (height and load)
are provided for informational purposes only. Due to
the tolerance range, the values cannot be used for
precision operations.
The operator must check that the forks are at the
correct height for handling loads on a shelf.
First "DLC 3" option example: reading
the screen
– The weight of the load on the forks is
1250 kg (± 50 kg).
Overview
3
Options and variants
6745758043484 EN - 11/2021 - 08
