– The forks are at a height of 2.9 m.
– The maximum permissible height of the
forks with a load of 1250 kg is 3.3 m.
NOTE
It may be necessary to update the weight. The
update is performed automatically by the soft-
ware. The screen displays a message about
"updating the weight".

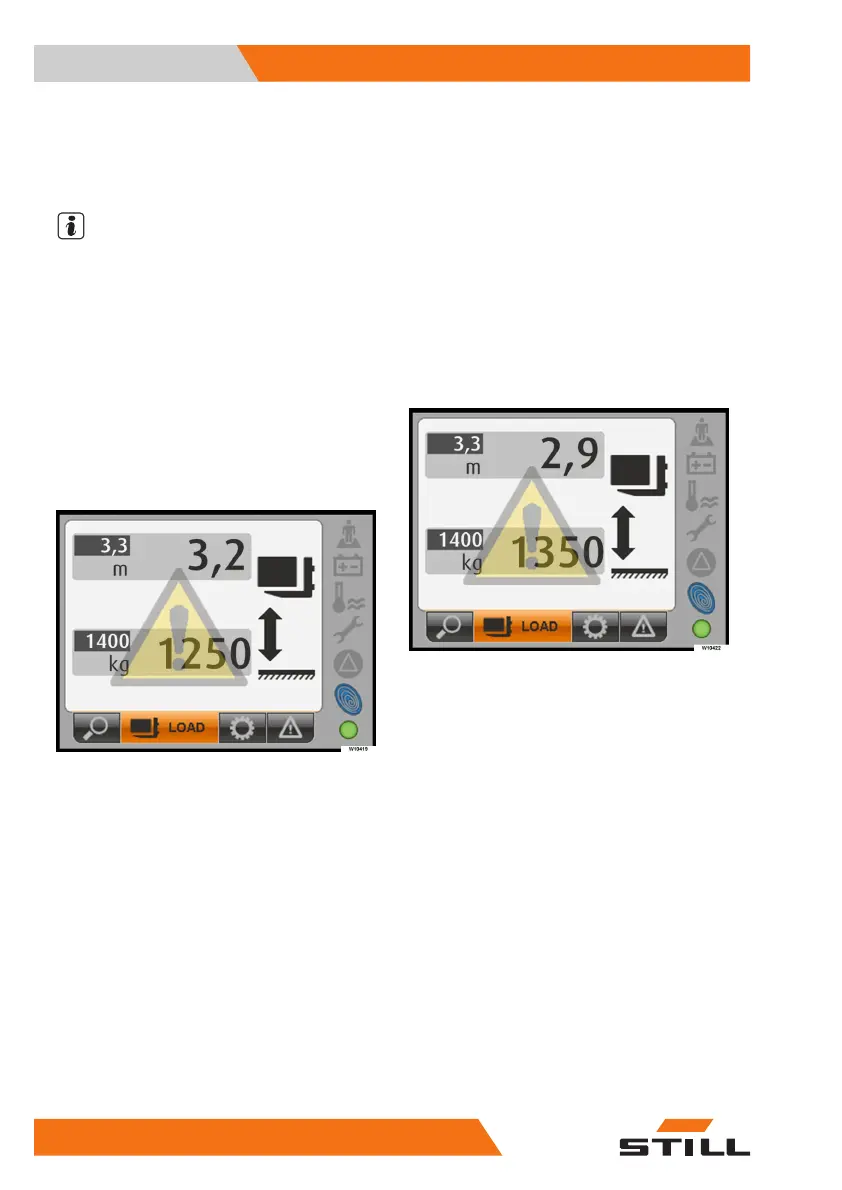

Second "DLC 3" option example: The
forks have reached a lift height very
close to the maximum permissible val-
ues.
– The maximum permissible height of the
forks is 3.3 m.
– The forks are at a height of 3.2 m.
The following signals will warn the operator
that the height of the forks
(3.2 m) is very
close to the maximum permissible lift height
(3.3 m)
:
●
The truck emits a warning sound (once).
●
At the same time, a yellow warning triangle
appears on the display.
– The arrow shown on the display indicates
that it is still possible to continue to raise or
lower the forks with due caution.
The load capacity values are NOT the cause
of the danger and warning signals:
●
The weight of the load on the forks is
1250 kg (± 50 kg).
●
The maximum permissible load on the forks
is 1400 kg.
Third "DLC 3" option example: The
weight of the load on the forks is very
close to the maximum permissible ca-
pacity.
– The weight of the load on the forks is
1350 kg (± 50 kg).
– The maximum permissible load on the forks
is 1400 kg.
The following signals will warn the operator
that the weight of the load on the forks is
(1350 kg ± 50 kg) and is very close to the
maximum permissible load on the forks
(1400 kg)
:
●
The truck emits a warning sound (once).
●
At the same time, a yellow warning triangle
appears on the display.
– The arrow shown on the display indicates
that it is still possible to continue to raise or
lower the forks with due caution.
The height of the forks is NOT the cause of
the danger and warning signals:
●
The maximum permissible height of the
forks is 3.3 m.
●
The forks are at a height of 2.9 m.
