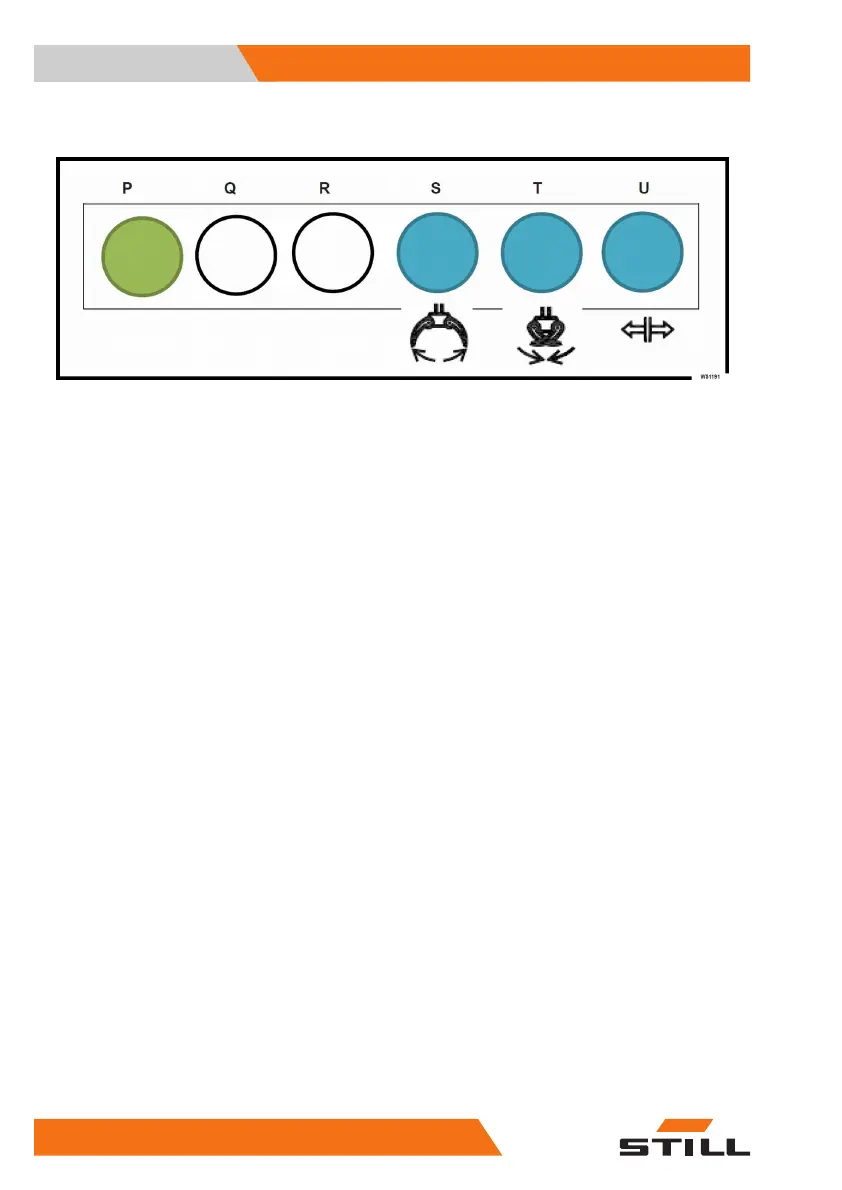

Keypad for two auxiliary hydraulic lines and clamp
The keypad has six buttons:
●
Button
P
, green on/off button To turn on the
keypad press button
P
; the button lights up
To turn off the keypad press button
P
again;
the button turns off
●
Free button
Q
, white
●
Free button
R
, white
●
Button to open the clamp
S
, blue
●
Button to close the clamp
T
, blue
●
Clamp consent button
U
, blue
●
Buttons
Q
and
R
are intended for additional
equipment, e.g. side shift or fork synchron-
iser.
To activate one of the two commands
Q
or
R
:
●
Turn on the keypad using the button
P
●
Then press the required command
Q
or
R
Use of clamp commands:
●
Turn on the keypad using the button
P
●
To open the clamp, hold down the consent
button
U
and with your other hand press the
button
S
●
To close the clamp, hold down the consent
button
U
and with your other hand, press
the button
T
Press the button
P
to turn it off, then turn off
the truck. The keypad will not work if the but-
ton
P
is illuminated (lit) when the truck is star-
ted. To restore the correct operation of the
keypad, press the button
P
to turn it off, then
switch the truck off and on again using the
key.
Observe the sequence of commands given
above.
Not respecting the sequence of commands
will lock the keypad functions
●
With button
P
illuminated, if you press one
of the two commands
Q
or
R
when the
clamp consent button
U
is pressed, the key-
pad functions will lock.
●
With button
P
illuminated, if you press one
of the two commands
Q
or
R
and then
press one of the buttons
S
,
T
or
U
, the key-
pad functions will lock.
To restore correct operation of the keypad, re-
lease all the buttons and press the button
P
to
turn it off.
