The keypad has three buttons:
●
Button to open the clamp F , blue
●
Button to close the clamp G , blue
●
Consent button H , blue
Opening the clamp
●
To open the clamp, hold down the consent
button
H and with your other hand press the
button
F .
Closing the clamp
●
To close the clamp, hold down the consent
button
H and with your other hand press the
button
G .

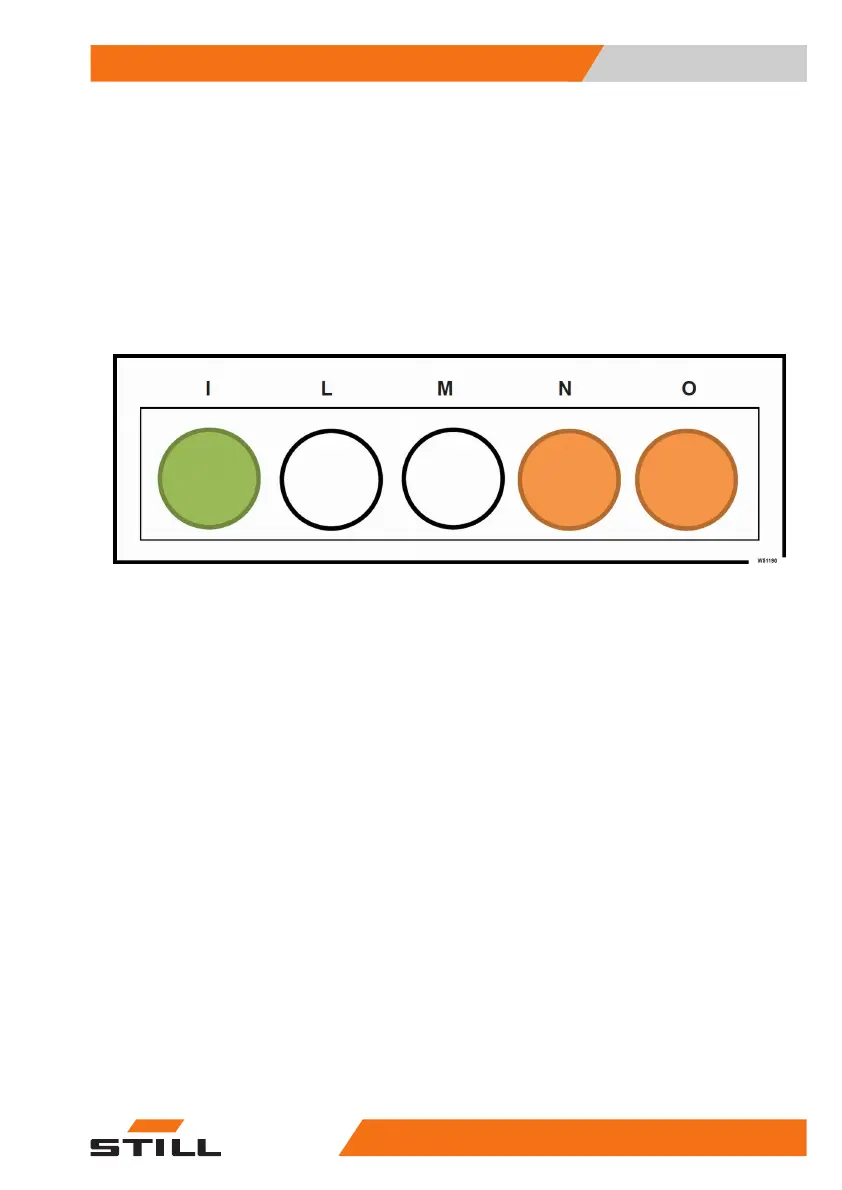

Keypad for two auxiliary hydraulic lines without clamp
The keypad has five buttons:
●
Consent button I , green
●
Free button L , white
●
Free button M , white
●
Free button N , yellow
●
Free button O , yellow
●
Buttons L , M , N and O are intended for ad-
ditional equipment, e.g. side shift or fork
synchroniser
To activate one of the commands
L , M , N or
O , hold down the green consent button I with
one hand, and with the other hand press the
required command
L , M , N or O .
Press commands
L , M , N , O one at a time to
avoid locking keypad operation. If the com-
mands become locked, release all the buttons
to restore correct operation of the keypad.
