Maintenance 6
Maintenance every 500 hours
Servicing the brake
1044_490-004
1

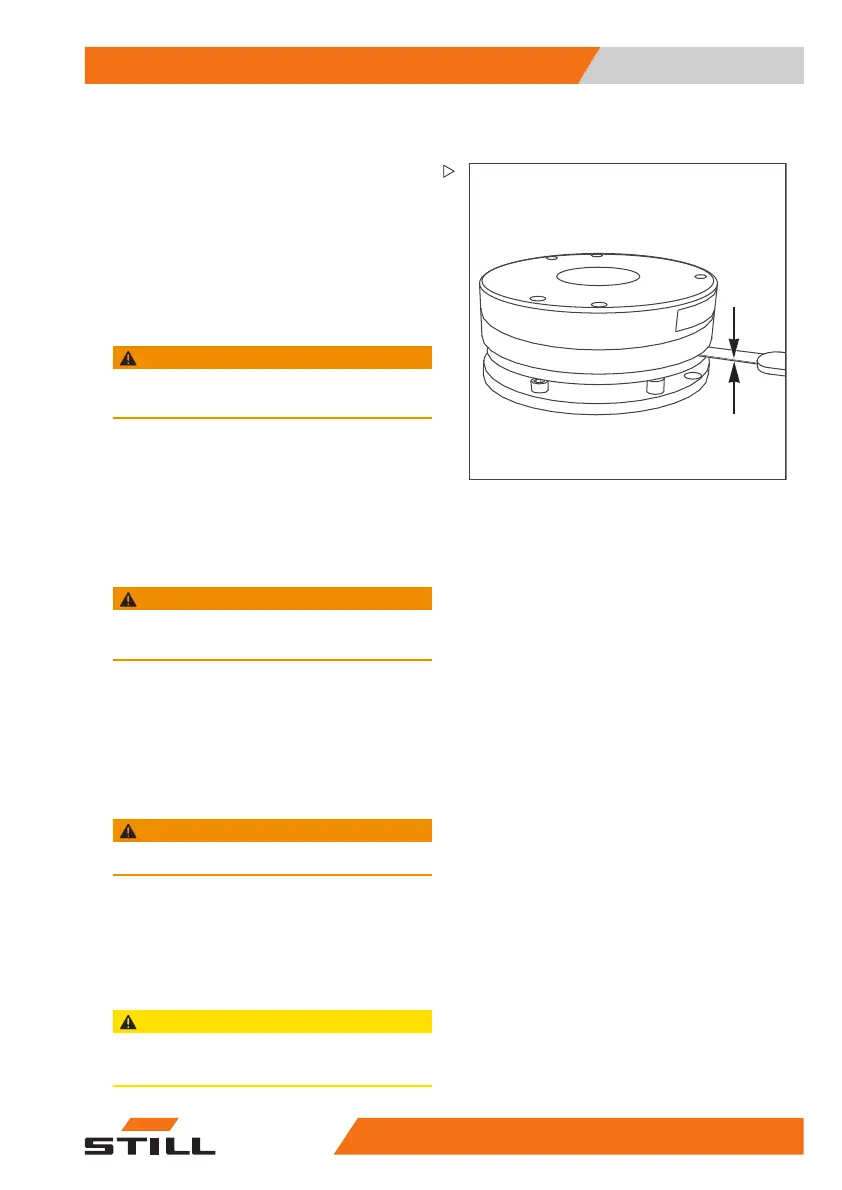

Checking the air gap
– Release the brake.
– Measure the air gap (1) with an
adjustment
shim at three different point
s separated by
120°.
Min. air gap: 0.3 mm
Max. air gap: 0.8 mm
WARNING
– If the air gap cannot be satisfactorily adjusted,
change the brake disc.
Checking the braking power
Braking must be carried out unladen (trailer
mode) in accordance with standard ISO/DIS
6292. According to this standard, industrial
tractors with 1 or 2 braked wheels travelling at
13 km/h must have a braking distance of less
than 3.91 m.
WARNING
Keep the braking path clear and ensure there is
sufficient safety distance.
– Drive the truck at 13 km/h.
– Activate the brake and measure the braking
distance.
– If the distance measured is greater than
3.91 m, the brake must be changed by our
service department.
WARNING
Never use the truck with a faulty brake.
Checking the condition of the forks
– Check that the forks show no signs of
distortion, cracks, heavy wear or fissures.
CAUTION
Damaged forks must be replaced by our service
department.
