Still KANVAN-05 - Battery Replacement

5 Operation
Handling the battery
4
1050_003-023
1
2
3
Closing
WARNING
Danger of crushing.
When closing the battery door, there should be
nothing between battery door and edge of the
frame.

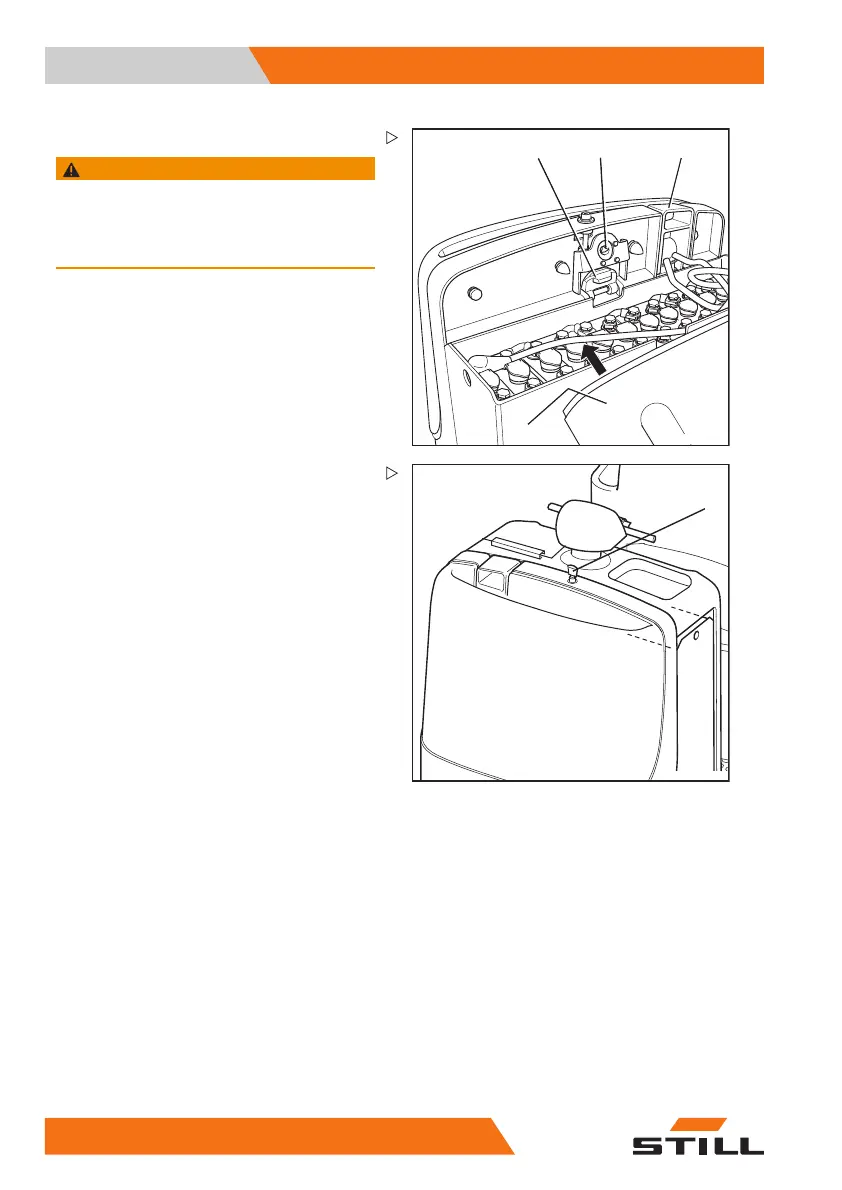

– Reconnect the female battery connector
(3).
– Lower the battery latch (1).
– Push the battery cover (4) forward until it
engages in the lock (2).
5
1044_606-015
– Turn the key (5) for the battery compartment
lock 180° and remove it.
Battery replacement
There are 2 ways of replacing the battery:
1. Vertically with a lifting tackle (all trucks)
2. With a lateral battery removal trolley
(option)
To avoid short circuits, cover batteries with
unprotected terminals or connectors with a
rubber mat.
