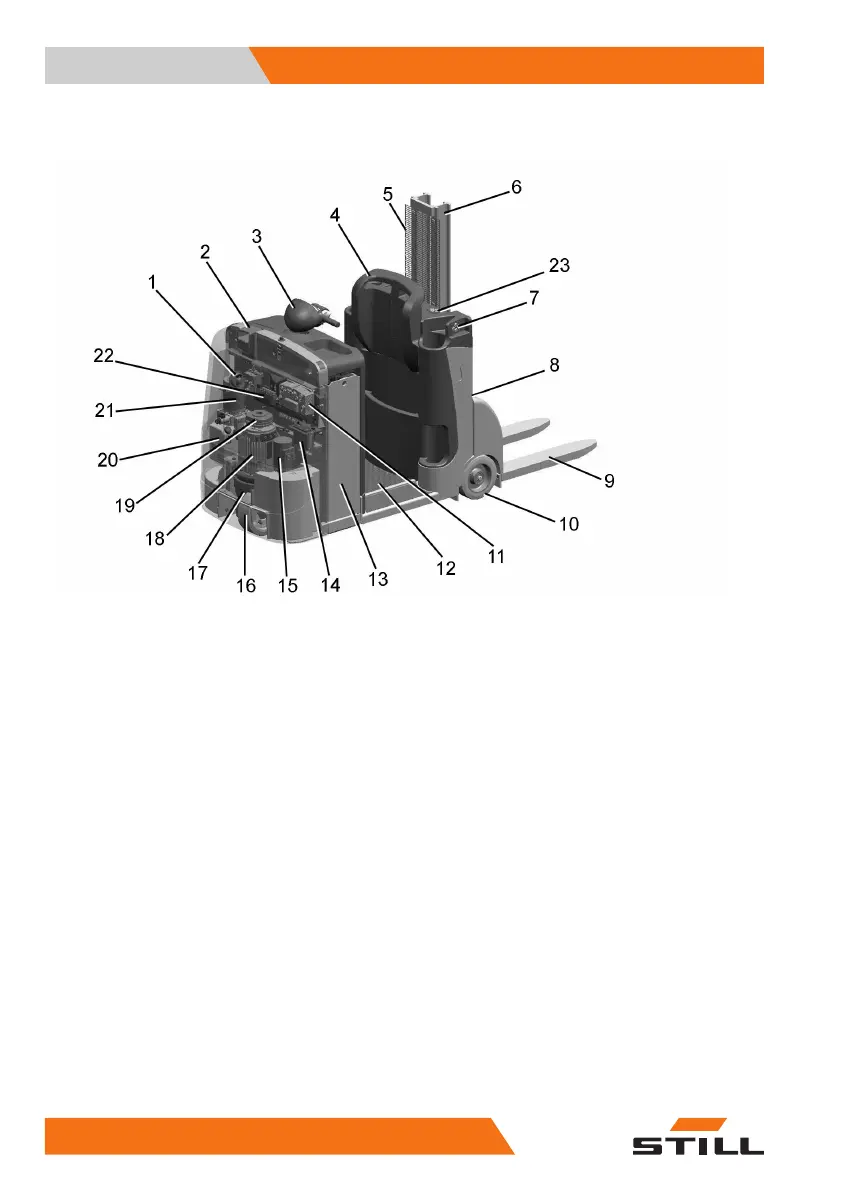

Still KANVAN-05 - Total overview

4 Overview
Total overview
Total overview
1 Warning horn
2 Battery connector
3 Cockpit
4 Backrest
5 Guard grille
6Mast
7 Accompanied operation push-button (op-
tional)
8 Tow coupling
9 Foldable forks
10 Load wheels
11 Traction controller
12 Platform
13 Battery
14 Steering controller
15 Power steering motor
16 Drive wheel
17 Reducer
18 Traction motor
19 Electromagnetic brake
20 Hydraulic tank
21 Pump motor
22 Fuses
23 Buttons for fork extension/folding
