Still KANVAN-05 - ROCKINGER Trailer Coupling

5 Operation
Handling trailers

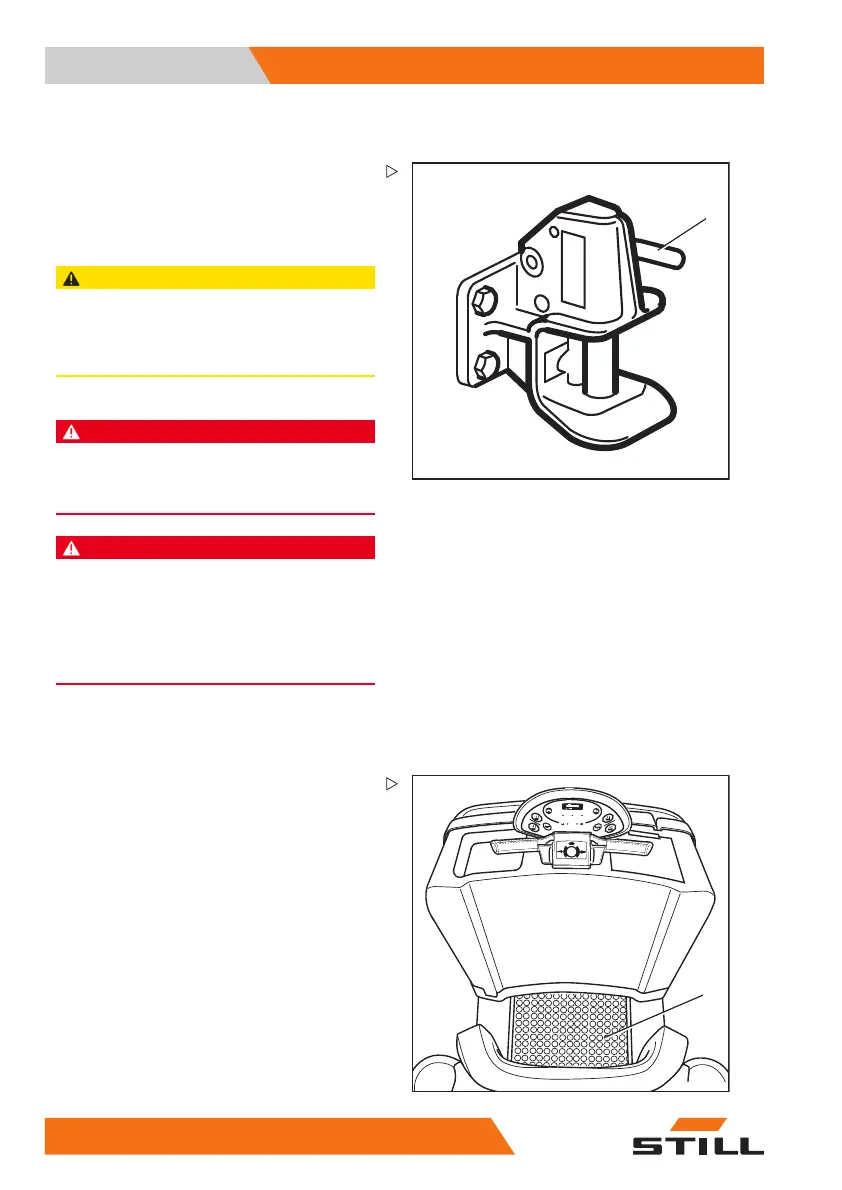

ROCKINGER trailer coupling
4
7321_003-065
Hitching up
– Swivel the lever (2) up.
– Release the brake on the front
axle of the
articulated drawbar trailer
.
CAUTION
If this is not done, the coupling jaw, drawbar eye
and support can be damaged!
The drawbar eye must hit the centre of the coupling
jawwhenhitchinguparigiddrawbartrailer.
– Reverse the tractor slowly.
DANGER
Do not allow anyone to stand between the tractor
and trailer during the coupling procedure.
Only drive the tractor to the trailer.
DANGER
Risk of accident!
– Make sure that the tow pin is in the specified
position.
If the locking system is blocked, do not intervene.
Risk of crushing your fingers! Please contact your
service centre.
– Remove the chocks at the trailer.
Unhitching
12
3
4
56
78
9
PR
G
PR
G
1
1047_003-039
– Step off the presence area (1). The tractor
will be braked.
– Secure the trailer with chocks or engage the
trailer brake.
– Swivel the lever (2) up.
– Drive the tractor slowly forward.
88
50108043033 [EN]
