Still KANVAN-05 - Single-Position or Multi-Position Trailer Coupling

5 Operation
Handling trailers
Single-position or multi-position
trailer coupling

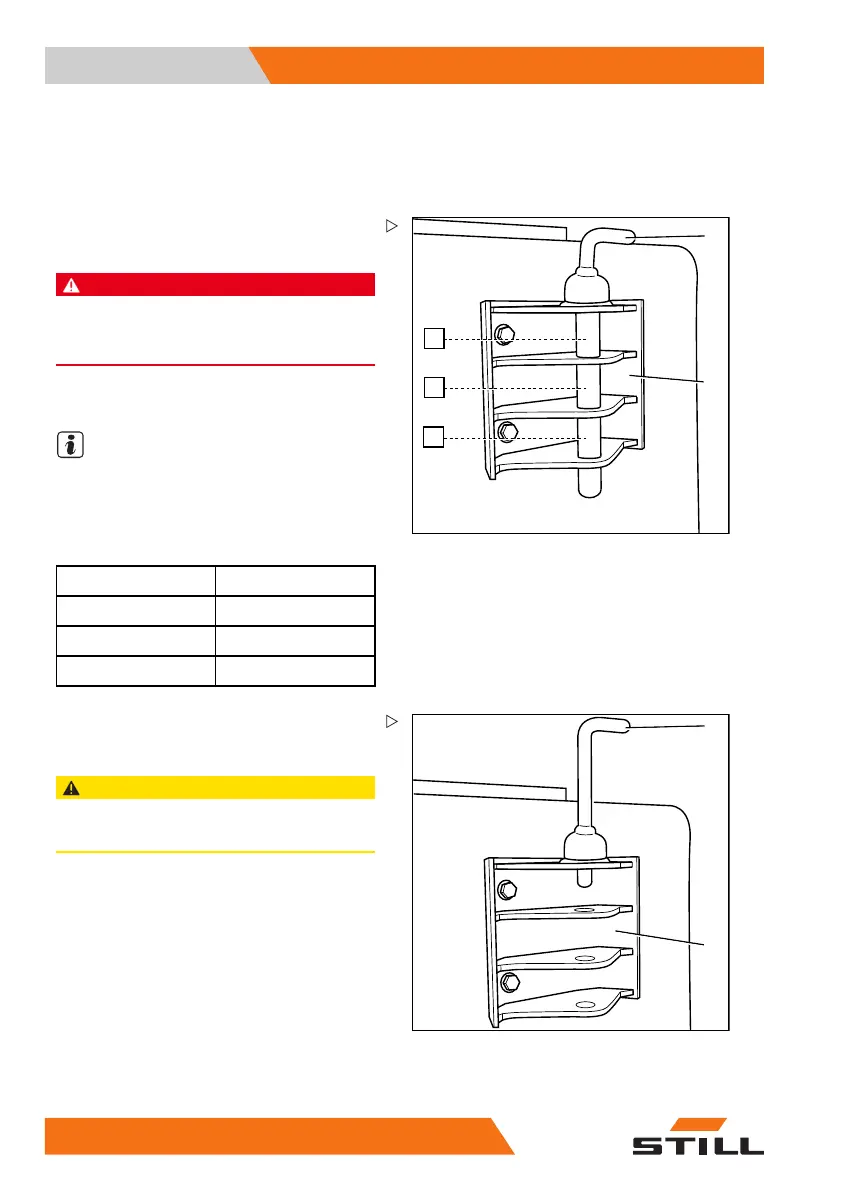

Trailer coupling
1050_003-019
2
3
C
B
A
– Pull the tow pin (2) out.
– Reverse the tractor slowly.
DANGER
Do not allow anyone to stand between the tractor
and trailer during the approach. Always drive the
trailer to the tractor.
– Introduce the hitch of the drawbar into the
coupling jaw (3) on the tractor.
NOTE
The multi-position coupling provides 3 hitch
heights. It is recommended to choose the
height at which the drawbar is horizontal:
Coupling height (distance from the ground)
Position
Height (mm)
A 300
B 355
C
410
.
1050_003-020
2
3
– Lower the tow pin (2) into the trailer coupling
(3) and rotate it 90°. The tow pin is now
secured.
CAUTION
Always make sure that the tow pin is secured after
the coupling procedure.
– Remove the chocks from the wheels of the
trailer and release the trailer brakes.
