Maintenance every 2000 hours
Maintaining the hydraulic system
1
3
4
6
7
2
0252_003-084.eps

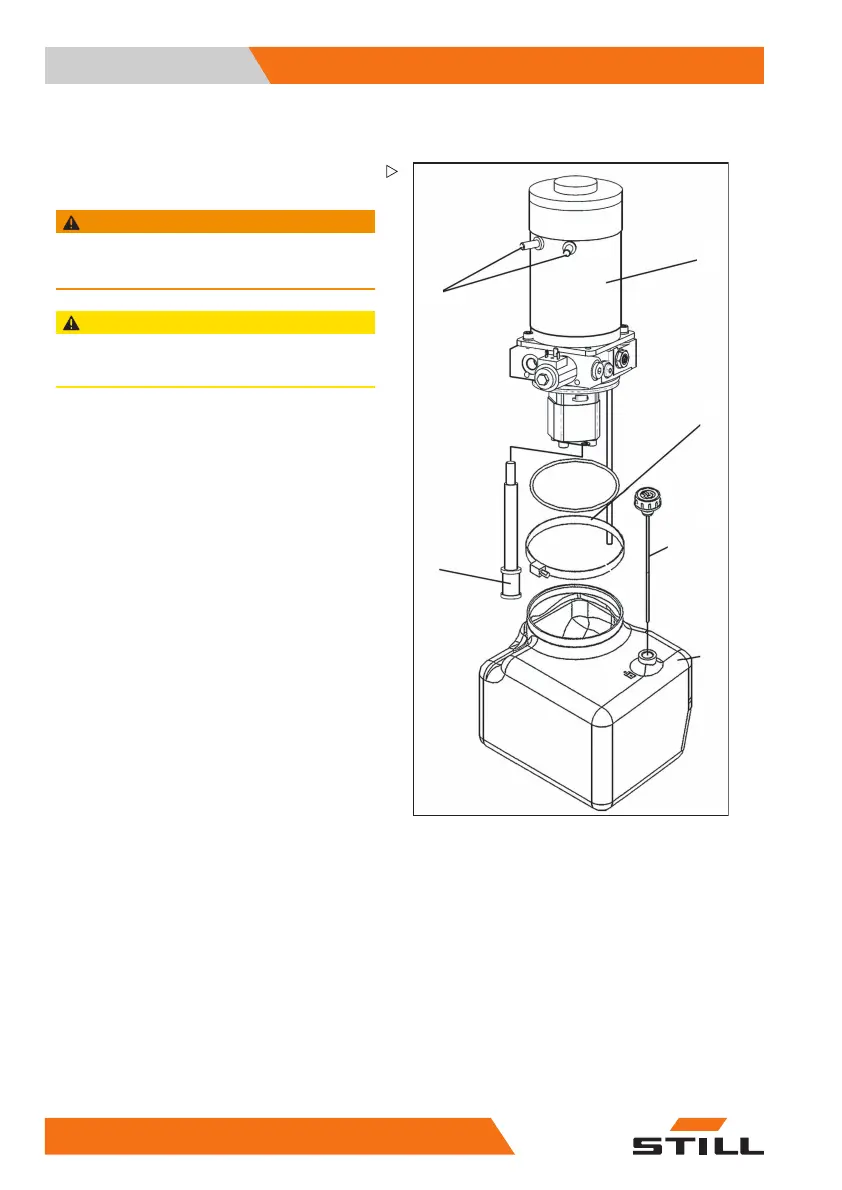

Draining the hydraulic oil and replacing
the oil filter
WARNING
Hydraulic oil can damage your health.
Follow the safety instructions for using hydraulic oil.
CAUTION
Drain off the used oil in accordance with the instruc-
tions.
– Place the truck on a horizontal surface.
– Lower the forks.
– Remove the front cover.
– Disconnect the battery connector.
– Disconnect the electrical (7) and hydraulic
connections of the pump motor (1).
– Unscrew the clip (2) and remove the pump
motor from the hydraulic oil tank (4).
– Replace the filter (6).
– Remove the tank (4).
– Recover the hydraulic oil (approx. 6 l) and
drain it.
– Refit the pump unit.
– Unscrew the gauge (3) and fill up with
fresh hydraulic oil in compliance with the
table of lubricants and ingredients until the
max. mark on the gauge is reached (filling
capacity approx. 6 l)
– Refit the parts.
Servicing the mast
– Check the condition and clearance of the
rollers.
– Check the condition and wear of the fork
carriage.
– The rollers are greased for life and do not
require any maintenance. Change them if
clearance is too great or they are worn.
