Still R70-45T User Manual

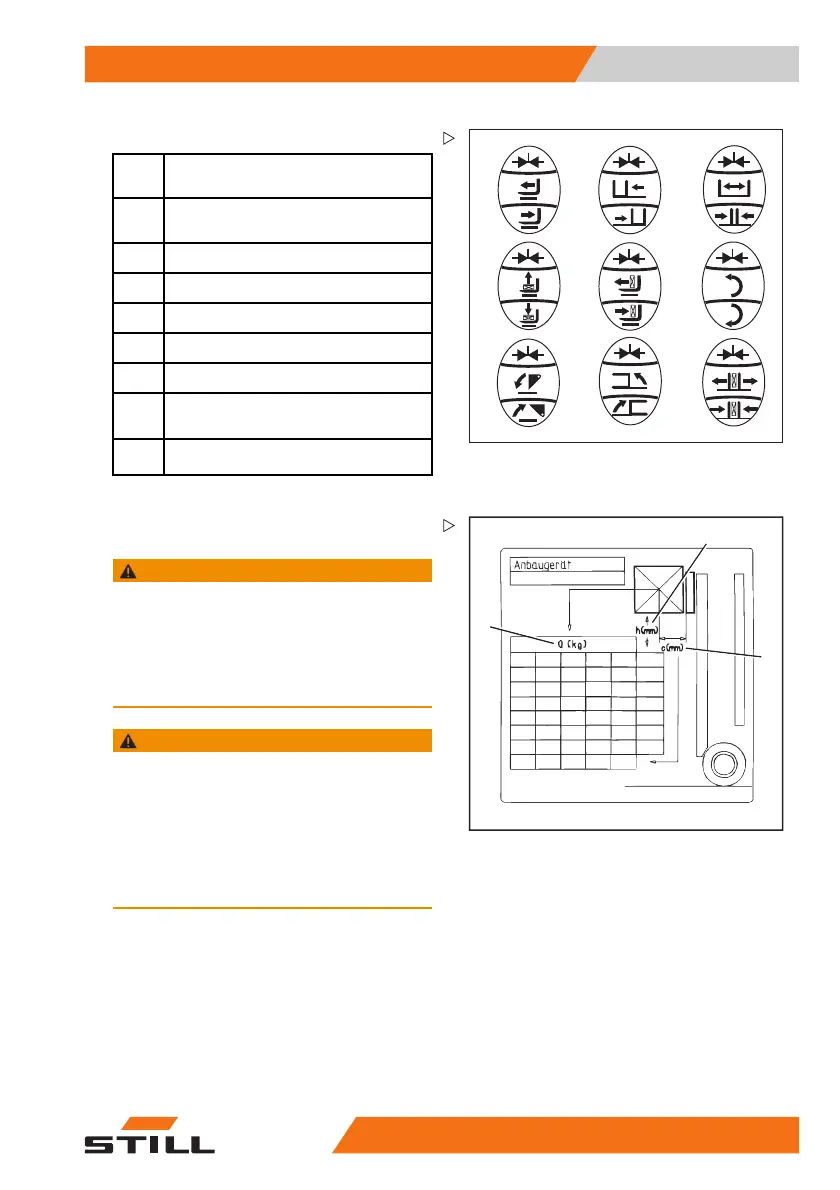

Operation 5
Workingwithattachments
7071_003-106
34
7
5
8
10
11
6
9
– Please note symbols 3 to 11!
3
Reach frame or forks forwards/back-
wards
4
Sideshift moves to the left/to the
right.
5
Adjust fork arms: open/close
6
Release/clamp load retainer
7
Raise/lower load
8
Turn to the left/to the right
9
Tip shovel over/tip shovel back
10
Tilt lift mast or forks to the left/to the
right
11
Open/close clamps
1
2
3
7090_860-002
Taking up a load using attachments
WARNING
Risk of accident!
Attachments may only be used for their intended
purpose as described in the respective operating
instructions.
Drivers must be instructed in the handling of the
attachments.
WARNING
Risk of accident!
Loads may only be picked up and transported with
attachments if they are secure. If necessary, the
load must also be secured against slipping, rolling,
falling, wobbling or tilting. Note that any change to
the position of the centre of gravity of the load will
affect the stability of the forklift truck.
Check the capacity plate for the attachments.
– There you will find the permissible values
for:
• Lifting capacity Q (kg) (1)
• Lift height h (mm) (2)
• Load distance C (mm) (3)
171673 [EN] 121
