4 Operation
Attachments
7312_003-099
35
11
7
46
13
17
19
9
12
14
10
15
18
20
16
8

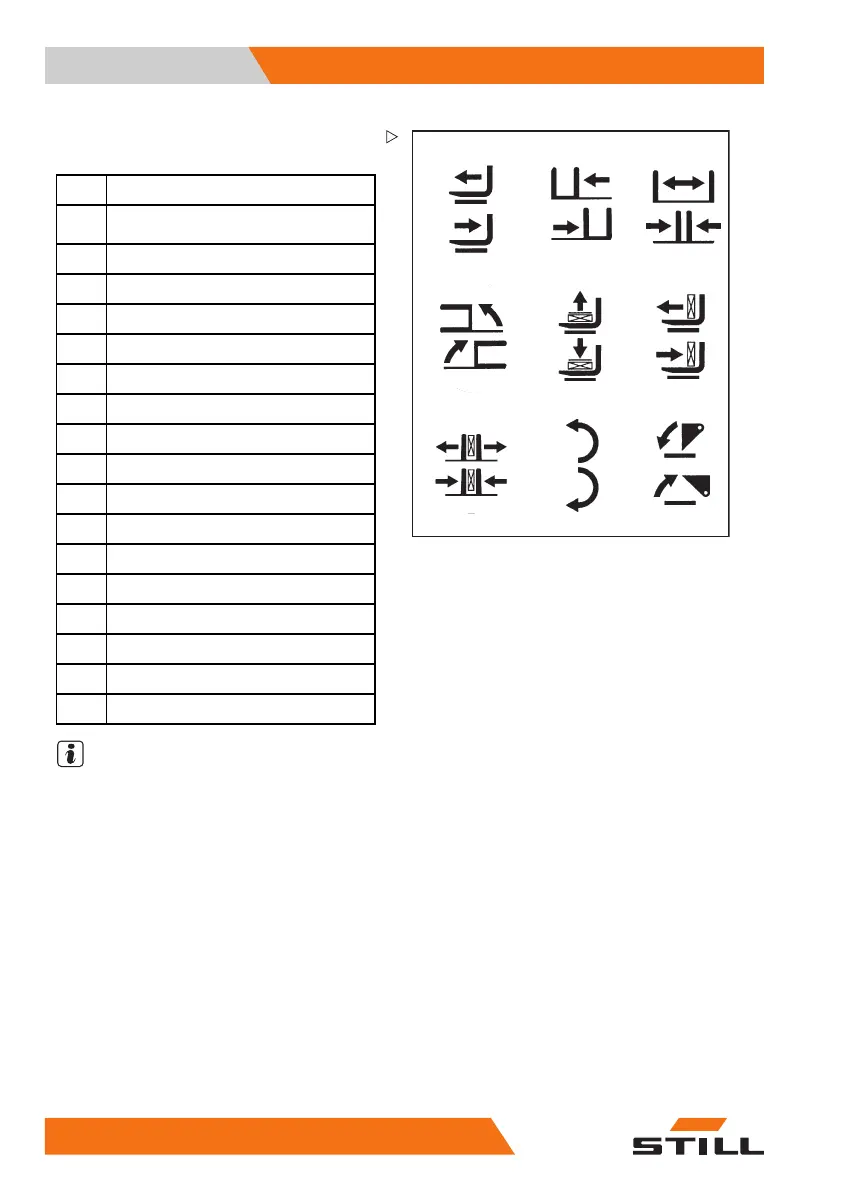

– Note the following attachment functions and
pictograms.
3
Move sideshift frame or fork forwards
4
Move sideshift frame or fork back-
wards
5
Move sideshift to the left
6
Move sideshift to the right
7
Adjust fork arms: open
8
Adjust fork arms: close
9
Swivel lift mast or fork to the left
10
Swivel lift mast or fork to the right
11 Release load retainer
12
Clamp load retaine
r
13
Push off the load
14 Pull in the load
15
Open clamps
16
Close clamps
17
Rotate to the left
18
Rotate to the right
19
Tip shovel over
20
Tip shovel back
NOTE
The pictogra
ms shown correspond to the
attachments
fitted to this truck at the factory. If
an attachmen
t with other functions is fitted, the
pictograms m
ust be checked for the correct
representat
ion and changed if necessary.
– Contact the authorised service centre if
required.
