Still RX60-45 - Controlling Attachments Using the Quadruple Mini-Lever and the 5 Th Function

Operation 4
Attachments
5060_003-119
4
1
2
5
3
E
F
5060_003-120_V2
E
F
Controlling attachments usin
gthe
quadruple mini-lever and the 5
th
function
NOTE
For technical reasons, clamping attachments
must not be controlled via the 5th function.
NOTE

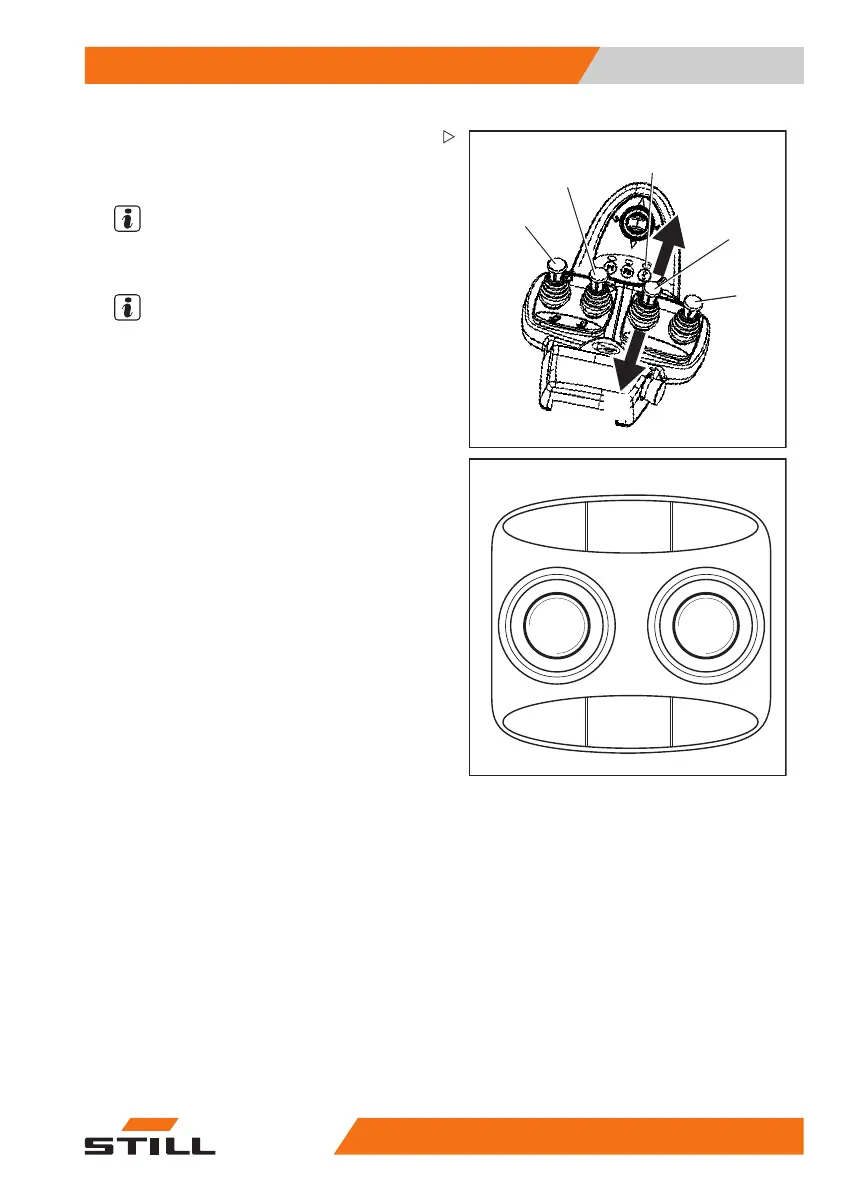

Operating levers (1) to
(4) are used to control
four hydraulic functio
ns. The designation "5th
function" refers to the
fact that the 5th hydraulic
function can be control
led with the operating
lever (3) by switchin
g the functions using the
"5th function" funct
ion key (5).
The pictograms on the operating levers show
the respective functions that are activated by
these levers.
This essentially involves the following:
– Actuate the "5th fun
ction" function key (5)
and move operating l
ever (3) towards (E).
Theattachmentmovesinaccordancewiththe
pictogram in position (E).
– Actuate the "5th function" function key (5)
and move operating lever (3) towards (F).
The attachment moves
in accordance with the
pictogram in positi
on (F).
171
533 EN - 02/2019 - 19 223
