Still RX60-45 - Controlling the Attachments with Fingertip

Operation 4
Attachments
F1
F1
F2
F2
6321_003-013
1

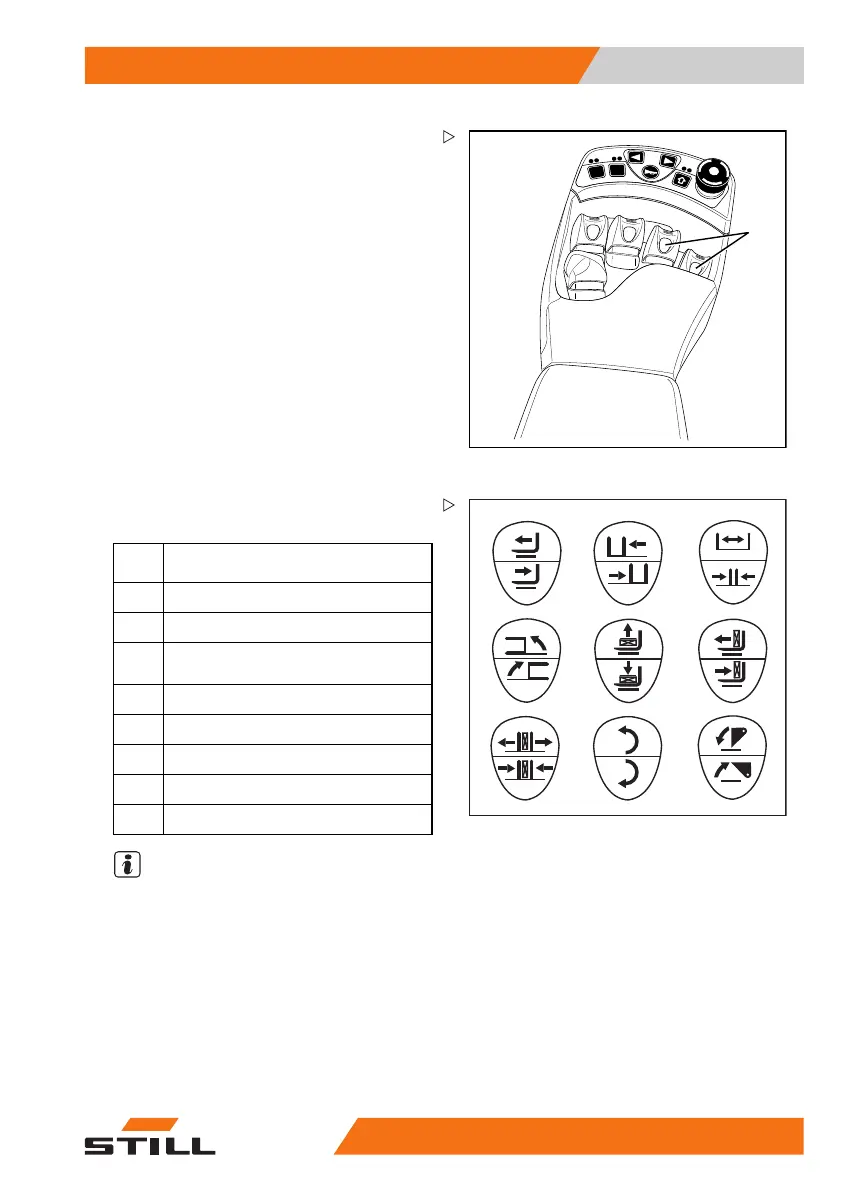

Controlling the attachments
with
fingertip
The attachments (variant) a
re controlled in
this version using the opera
ting levers (1).
The pictograms on the operating levers always
show the functions that are activated by that
lever.
– Move operating lever (1) forwards.
The attachment moves in th
e direction of
movement shown in the uppe
r part of the
pictogram.
– Move operating lever (1) backwards.
Theattachmentmovesinthedirectionof
movement shown in the lower part of the
pictogram.
6210_003-031
23
6
4
7
9
10
5
8
– Note the following attachment functions and
pictograms.
2
Move side shift frame or forks
forwards/backwards
3
Move sideshift to the
left/to the right
4
Adjust fork arms: op
en/close
5
Swivel lift mast or forks to the left/to
the right
6
Release/clamp load retainer
7
Push off/pull
in load
8
Open/close c
lamps
9
Turn to the left/to the right
10
Tip shovel over/tip shovel back
NOTE
The pictogram
s shown correspond to the
attachments fi
tted to this truck at the factory. If
an attachment
with other functions is fitted, the
pictograms mu
st be checked for the correct
representati
on and changed if necessary.
– Contact the authorised service centre if
required.
171
533 EN - 02/2019 - 19 229
