4 Operation
Attachments
F1
F1
F2
F2
6210_003-032
1
3
2
Controlling attachments wit
h finger-
tip and the 5th function
NOTE
For technical reasons, clamping attachments
must not be controlled via the 5th function.
NOTE
The designation "5th f
unction" refers to the
fact that the four oper
ating levers control
four functions, while
the "5th function" can
be controlled by switc
hing functions.

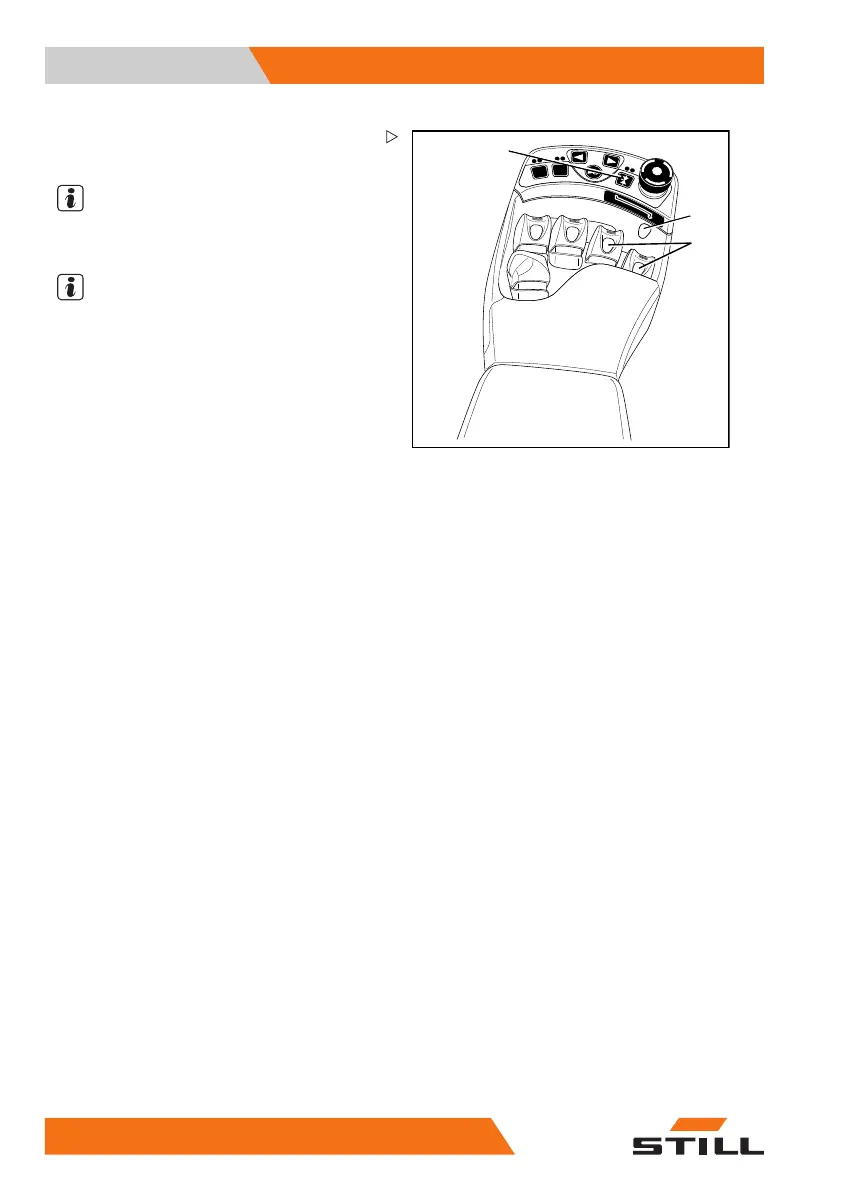

The attachments (variant) are controlled using
the operating levers (1).
You can also use the switch (2) to switch
functions, in which case the corresponding
operating lever controls the "5th function".
The pictogram (3) be
hind the operating
lever shows in the up
per and lower parts the
function that is act
ivated with this lever.
The meanings are as follows:
– Move operating lever forwards.
The attachment mov
es in the direction of
movement shown in t
he upper part of the
pictogram.
– Move operating lever back.
The attachment moves in the direction of
movement shown in the lower part of the
pictogram.
– Actuate the swi
tch (2).
The additional function of the attachment is
activated/deactivated and can be controlled
as the "5th function" using the operating lever.
230
171533 EN - 02/2019 - 19
