Operation 4
Replacing and transporting the bat
tery
6327_600-001_V4
1

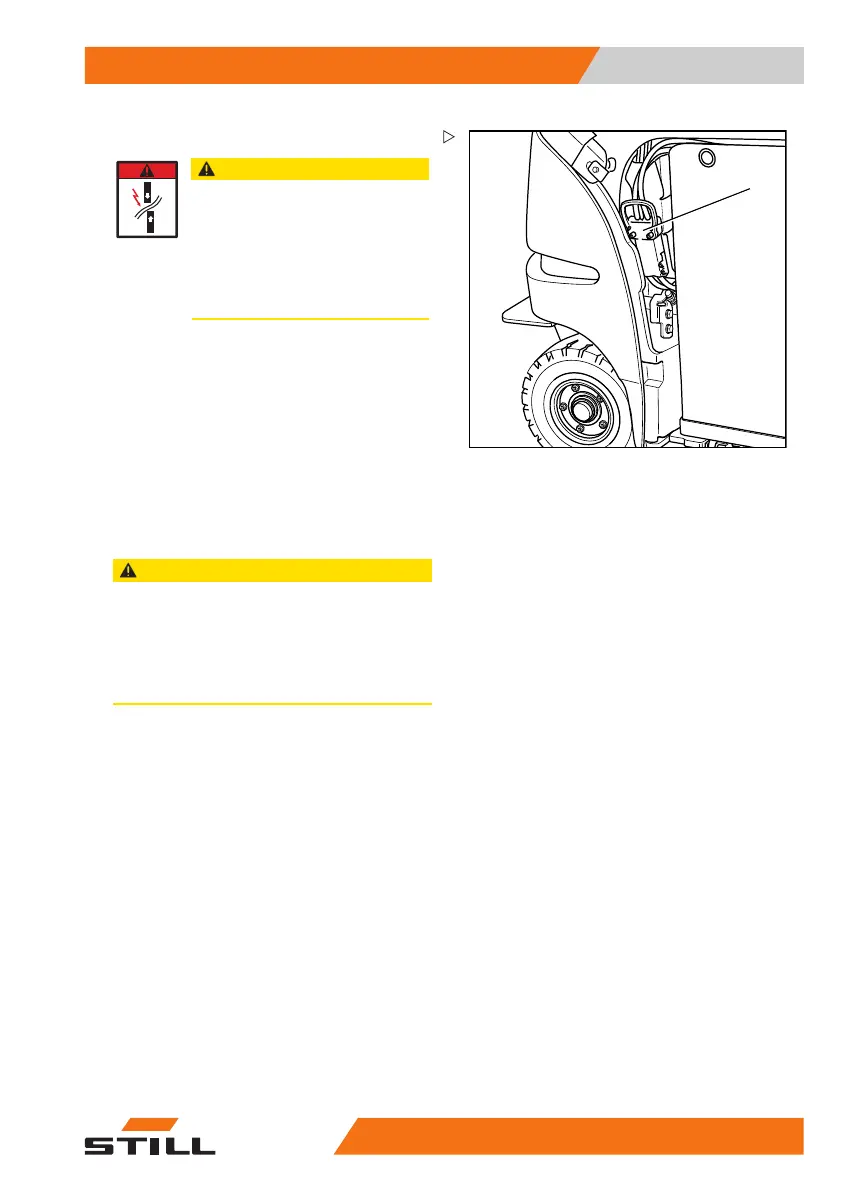

– Insert the battery male connector (1).
CAUTION
There is a risk of short circui
tifthe
cables are damaged!
Do not crush the battery cabl
ewhen
closing the battery cover.
– Ensure that the battery c
able does
not come into contact wi
th the
battery cover.
– Close the battery cover.
Replacing the battery using a change
frame (variant)
CAUTION
Risk of damage!
Place the battery change frame along with the trac-
tion battery only onto a firm surface with sufficient
load-bearing capacity.
Do not place the battery change frame with the
traction battery onto a soft surface or in a rack.
The battery change frame (variant) features
an advantageous design that allows a truck
or pallet stacker to pick up the battery quickly.
The battery along with the change frame can
be set down and charged. The change frame
fits between the battery holding fixtures in the
battery compartment of the truck. Once the
battery has been set down onto its holding
fixtures, the change frame is moved back out
of the truck.
Preparation
– Park the truck securely.
– Open the battery cover.
