Overviews 3
Shelves and cup holders
1 Parking brake lever
2 Steering wheel
3 Key switch
4 Display operating unit
5 Operating devices for hydraulic and traction
functions
6 Emergency off switch (only in this position in
multi-lever operation)
7 Storage compartment
8 Cup holder for max. 1-l bottles
9 Compartment and storage location for
operating instructions
10 Driver's seat
11 Accelerator pedal
12 Brake pedal
13 Alarm horn foot switch
14 Steering column adjustment lever
NOTE
The truck equipment may differ from the
equipment shown.
7321_003-125
1
2
3

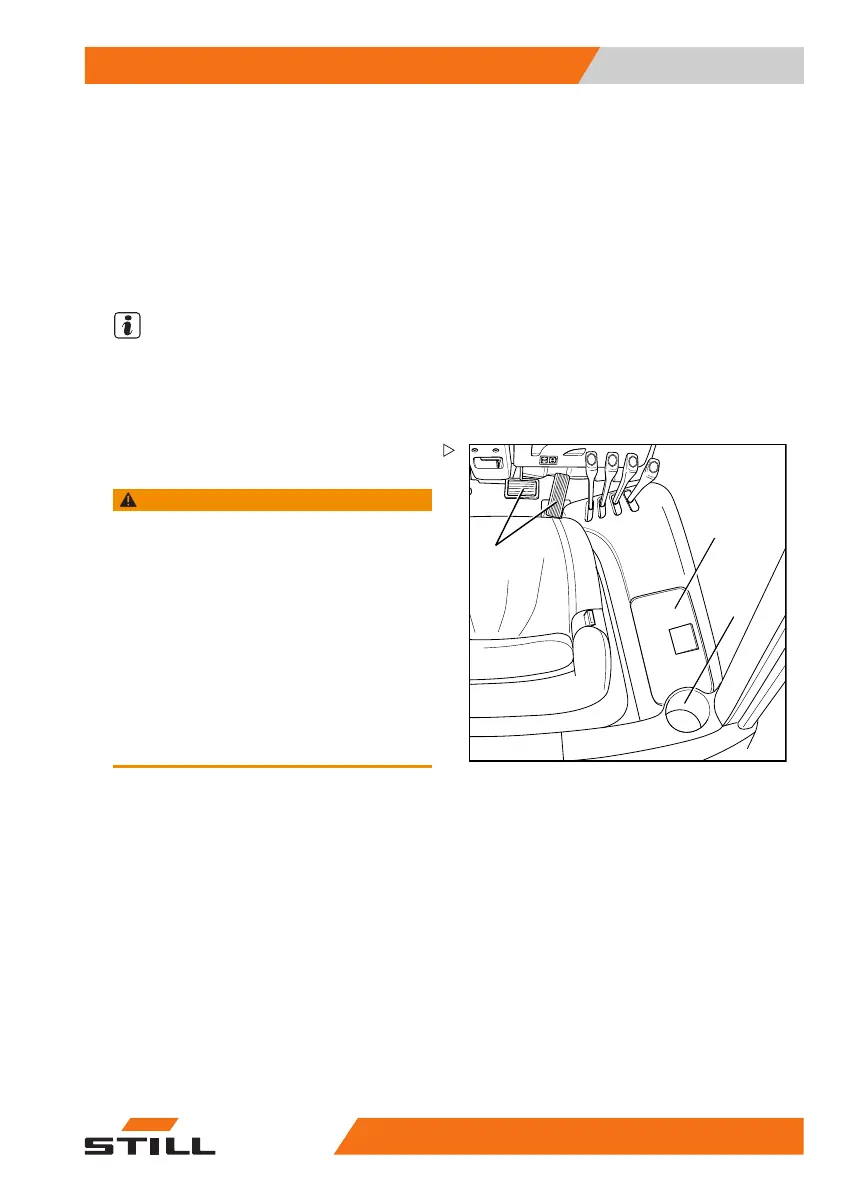

Shelves and cup holders
WARNING
Objects may fall into the footwell and obstruct the
pedals, which poses a risk of accident!
Objects to be stored must be of the correct size so
that they cannot fall from the shelf (1) or out of the
cup holder (2). Objects that fall into the footwell
during travel as a result of steering or braking may
slip between the pedals (3) and prevent them from
working correctly. It may then not be possible to
brake the truck when necessary.
– Bottles of 1 l or smaller may be stored in the cup
holder.
– Make sure that stored objects cannot fall from
the shelves when the truck is started up, steered
or braked.
171
533 EN - 02/2019 - 19 61
