STM32 ecosystem outlines AN4989
10/118 AN4989 Rev 3

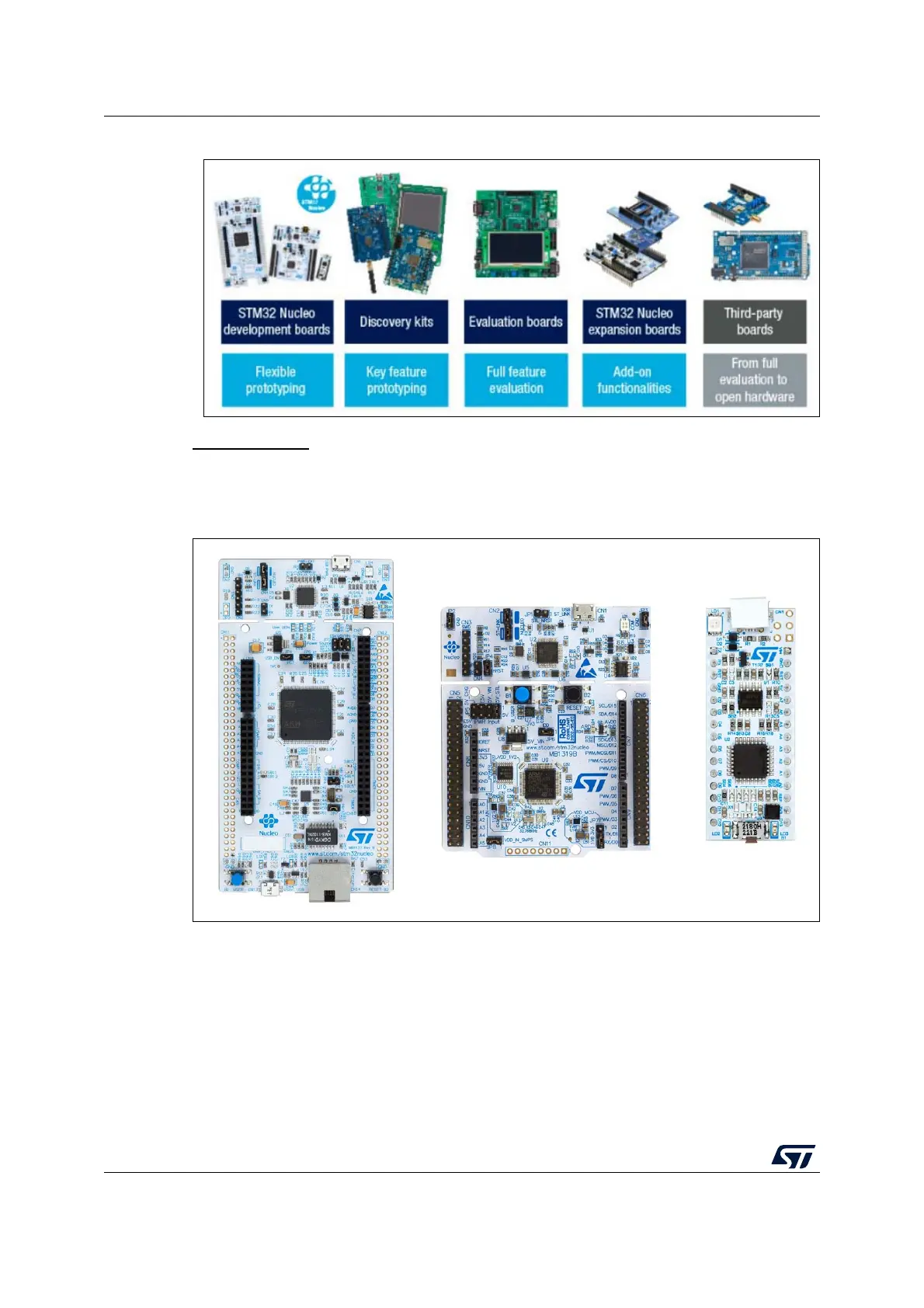

Figure 2. Development tools overview
STM32 Nucleo
STM32 Nucleo boards are affordable solutions for user willing to try out new ideas and to
quickly create prototypes based on STM32 MCU.
Figure 3. Nucleo-144, Nucleo-64 and Nucleo-32 boards
STM32 Nucleo boards feature the same connectors. They can easily be extended with a
large number of specialized application hardware add-ons.
Note: Nucleo-144 boards include ST Zio connector, which is an extension of ARDUINO
®
Uno
rev3, and ST morpho connector.
Nucleo-68 board and Nucleo-64 boards include ARDUINO
®
Uno rev3 and ST morpho
connectors.
Nucleo-32 boards include ARDUINO
®
Nano connectors.
