AN4989 Use Nucleo “cuttable” ST-LINK as stand-alone VCP
117
Any available UART of the STM32 application can be connected to the CN3 connector of
the ST-LINK part.
Figure 82 illustrates a project using NUCLEO-F302R8 is using ST-LINK part of a
NUCLEO-L476RG for connection of UART1 to the host.
UART1 RX PC5 is routed via Morpho Connector CN10 Pin 6 to CN3 TX of
NUCLEO-L476RG ST-LINK.
UART1 TX PC4 is routed via Morpho Connector CN10 Pin 34 to CN3 RX of
NUCLEO-L476RG ST-LINK.

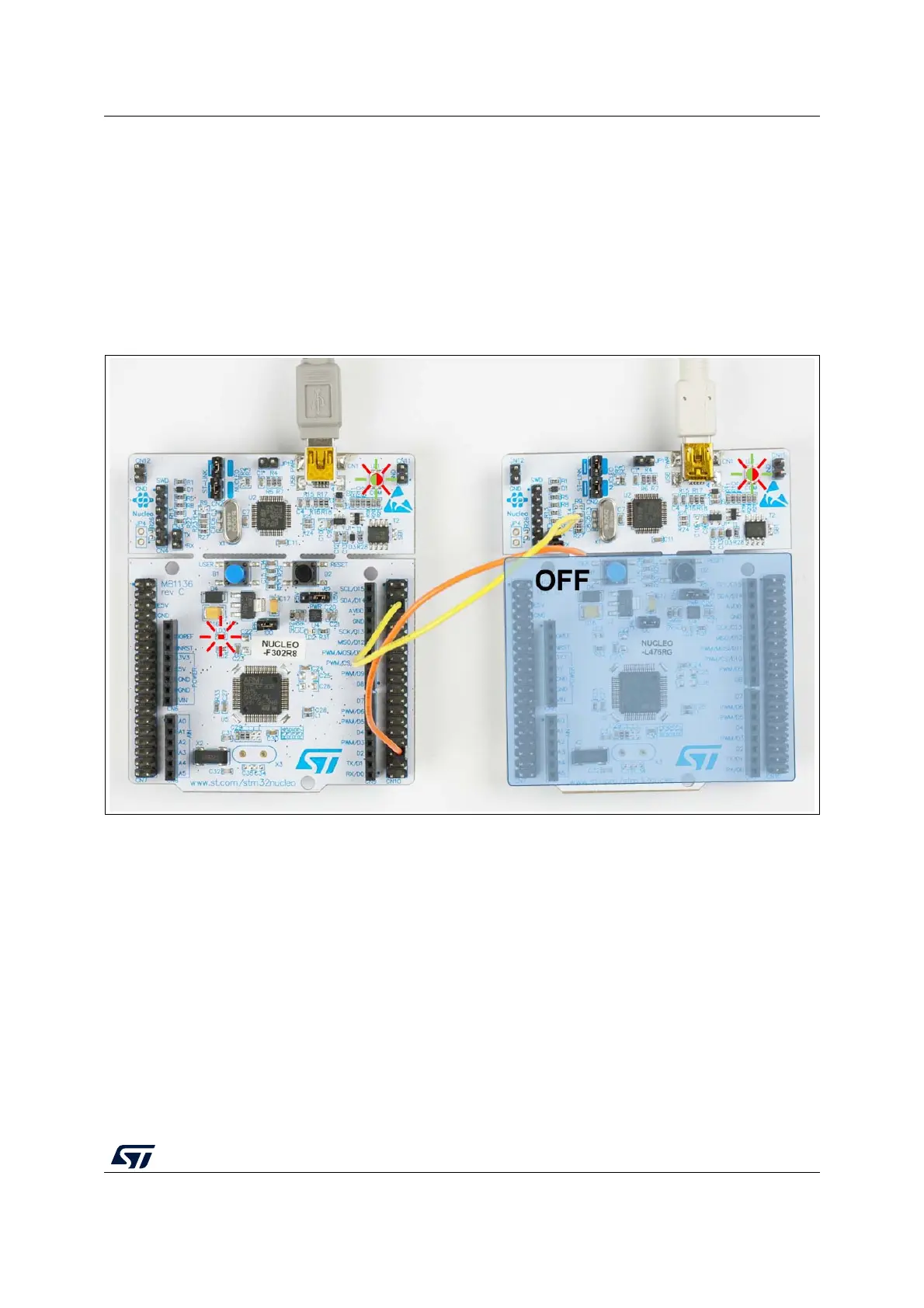

Figure 82. Using ST-LINK stand-alone part of Nucleo-L476RG as VCP
With this setup, on the PC side, two Virtual COM ports are available with potentially two
different serial channels:
1. Nucleo-F302R8 UART2 (native default VCP) to COM4
2. Nucleo-F302R8 UART1 (VCP through Nucleo-L476RG) to COM8
