2.1.2 ST-LINK probe
The ST-LINK is the JTAG/Serial Wire Debug (SWD) interface used to communicate with any
STM32 microcontroller located on an application board.
It is available as:
• Stand-alone in-circuit debugger
• Embedded in all STM32 hardware kits (Nucleo boards, Discovery kits, EVAL boards)
ST-LINK/V2 and ST-LINK-V3 are the main used versions.

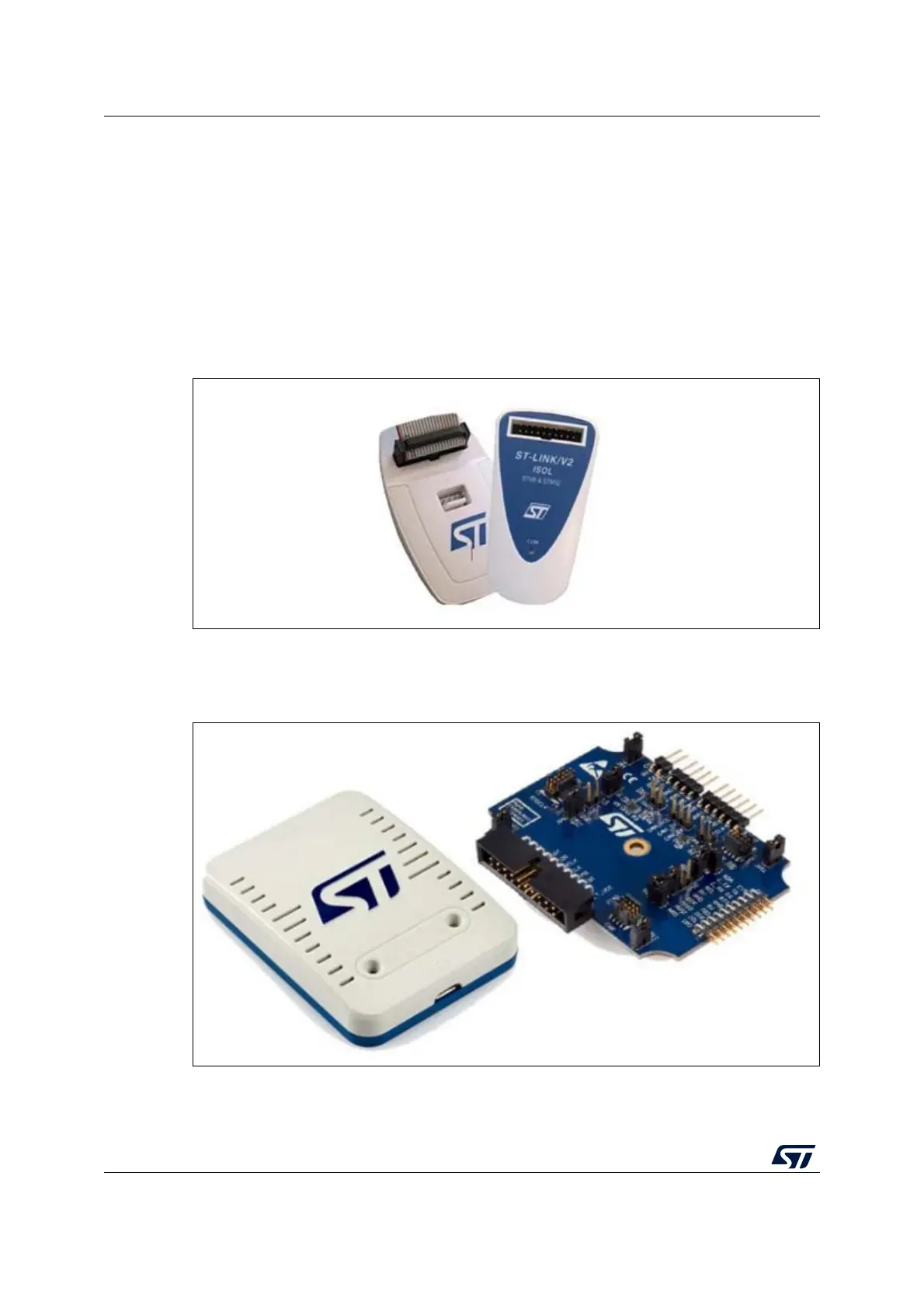

Figure 8 shows ST-LINK/V2 and ST-LINK/V2- ISOL stand-alone probes on the right.
Figure 8. ST-LINK, ST-LINK/V2, and ST-LINK/V2-ISOL stand-alone probes
Figure 9 shows the last STLINK-V3SET version.
Figure 9. STLINK-V3SET
