AN4989 Rev 3 75/118
AN4989 Printf debugging
117

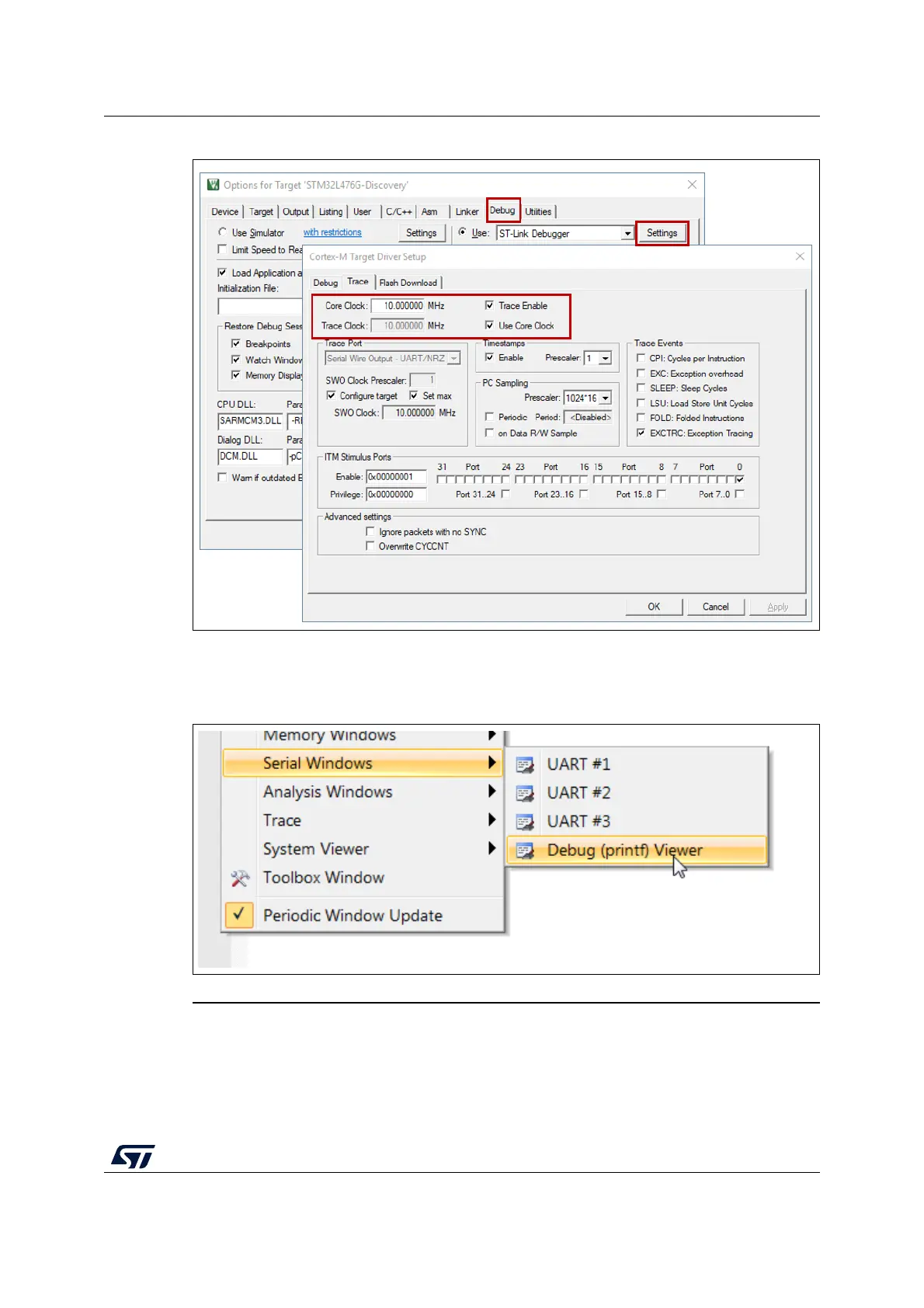

Figure 53. SWO configuration with Keil
®
SWV viewer is called “Debug (printf) Viewer” and is accessible while in debug through
View -> Serial Windows -> Debug (prinf) Viewer as shown in Figure 54.
Figure 54. Access to SWV in Keil
®
Tip: Keil
®
MDK-Arm µVISION allow to select the Stimulus to display. On the other hand
it is quite straight forward to make some clone of ITM_SendChar() function using
any of the 31 stimulus port. Can be useful in a very verbose system to set a trace
