4 Main components of the knitting machine
Front side
Main components of the knitting machine
4 Main components of the knitting
machine
Front side
4.1 Front side

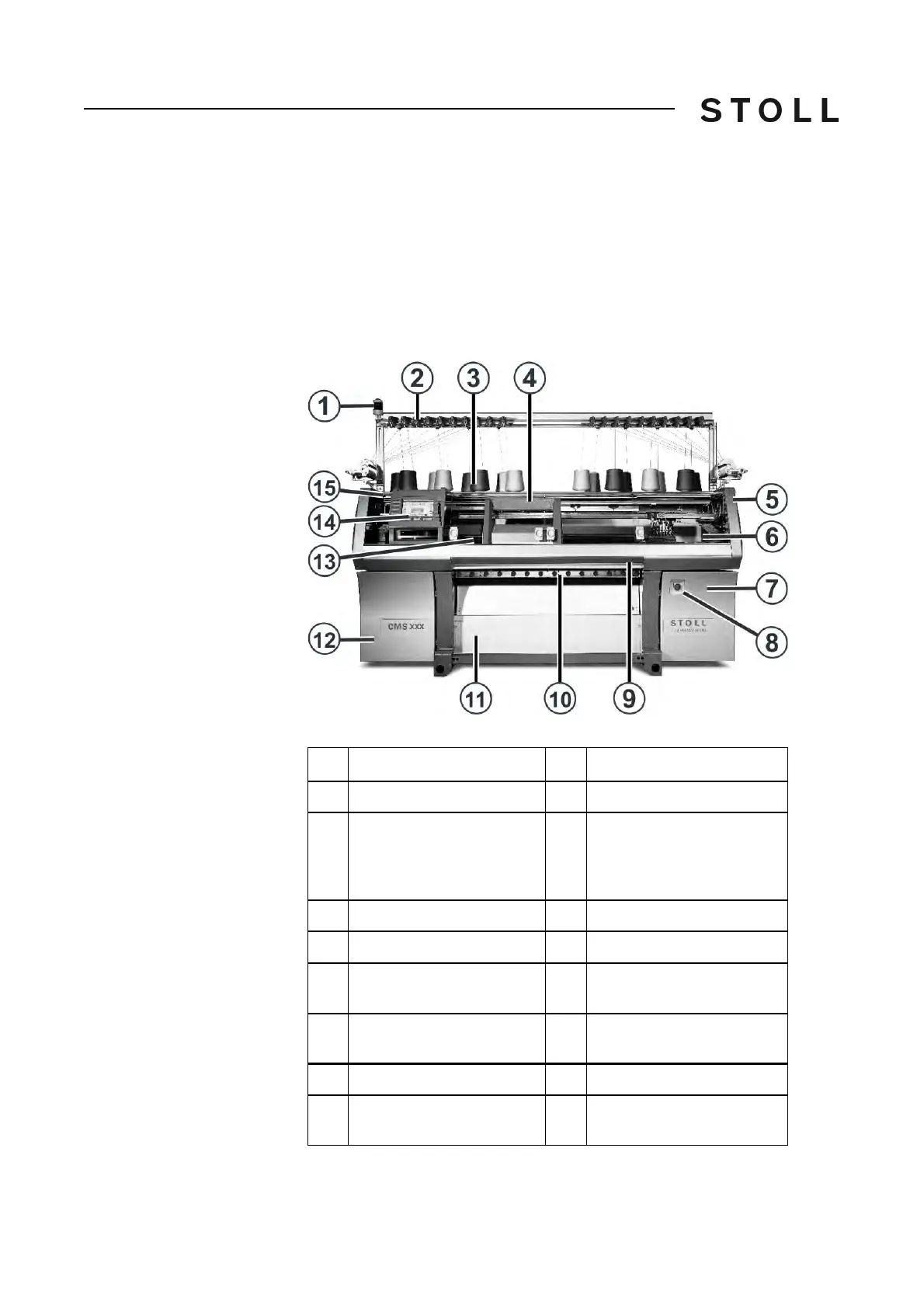

Front view of the knitting machine
Front view of the knitting machine
No.
Label
No.
Label
1
Signal light (green, yellow)
9
Engaging rod (red)
2
Yarn control units
10
Fabric take-down (main take-
down, auxiliary take-down,
comb take-down, belt take-
down)
3
Bobbin board (with bobbin)
11
Fabric collection chamber
4
Carriage
12
Left control cabinet
5
Safety door (left, right)
13
Needle and additional beds
(front)
6
Covers (over carriage and
needle bed)
14
Touch screen
7
Right control cabinet
15
USB port
8
Main switch and emergency
stop switch
