7 Assembly and setting up
Assembling machine
7.2.6 Mounting the yarn guide device
Push the supports of the yarn guide device upward
together with another mechanic to prevent the supports
from jamming.
T
he main switch is set to "0" and secured against being switched on
again.
1. Open the lateral safety doors and loosen the
screws (1) on both sides of
the machine.

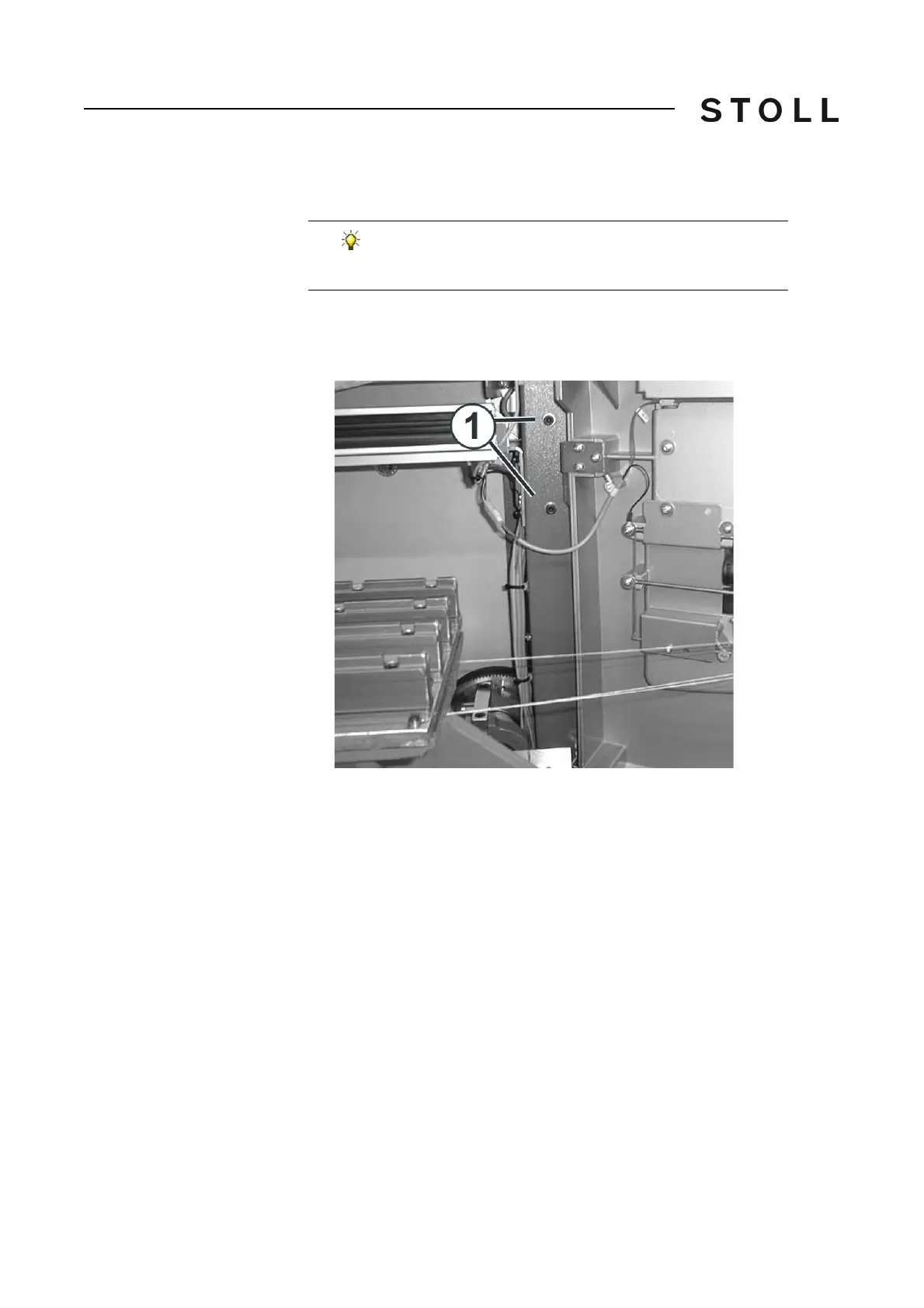

Supports for the yarn guide device
Supports for the yarn guide device
2. Push the left and right supports of the yarn guide device upward
simultaneously until the distance between the bobbin board and the yarn
guide device is 50 to 55 cm.
3. Retighten the screws (1) on both sides of the machine.
