Assembly and setting up
7
Assembling machine
Mounting the rear track of the
yarn guide device and the
additional bobbin boards
The additional equipment of your machine can deviate from this description
depending on the machine type (type of machine, scope of supply, special
equipment).

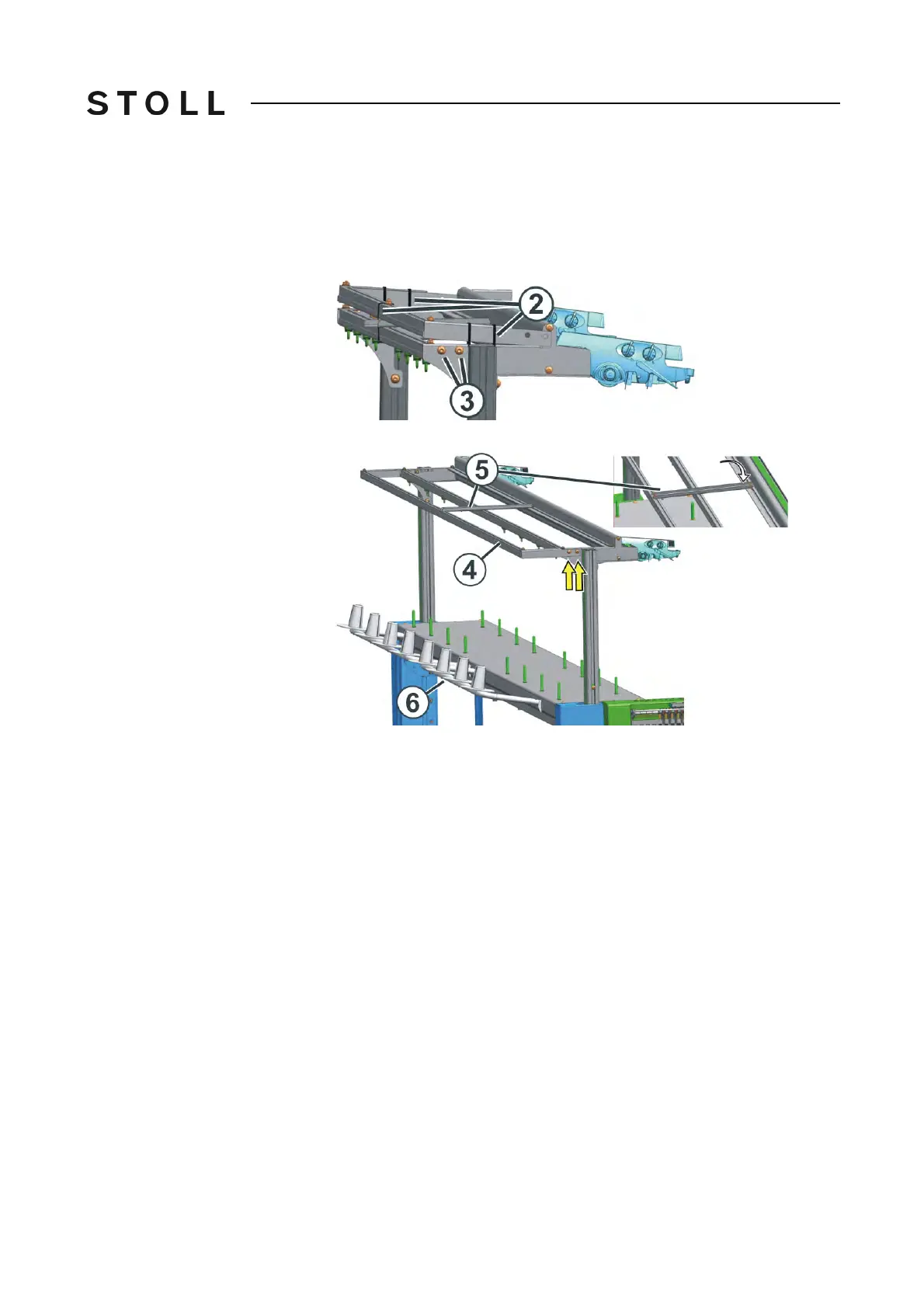

1. Removing transport locks (2).
2. Remove the screws (3) on the left and right sides of the machine.
3. Mount the rear track (4) of the yarn guide device.
4. Connect all the tracks of the yarn guide device with the help of th
e support
(5).
5. Hook in both additional bob
bin boards (6).
