7 Assembly and setting up
Assembling machine
Connecting the knitting machine (mains voltage 230 V)
7.2.2 Connecting the knitting machine (mains voltage 230 V)
This description is valid for:
Mains voltage 230 V
Countries e.g. Europe, China, Hong Kong
DANGER
Life-threatening high voltage!
Electrical shock may cause death or seri
ous injuries.
➜ Deenergize on-site mains supply.
The knittin
g machine is connected in the following steps:
 Connecting the mains supply
 Adapting the fluff absorption to the mai
ns frequency
Authorized personnel The knitting machine must be connected by an el
ectrician. Country-specific
laws and regulations are to be followed.
Operating the knitting
machine with a
generator
If the knitting machine is operated with a generator, make sure that the voltage
supplied by the generator meets the requirements of the EN 60204-1, Parag.
4.3.1.
In case of queries, please c
all the Stoll Helpline.
Connect m ains supp ly
Connect mains supply
DANGER
Life-threatening high voltage!
Electrical shock may cause death or seri
ous injuries.
➜ The knitting machine must be connected by an
electrician.
➜ Country-specific laws and regulations are to be
followed.

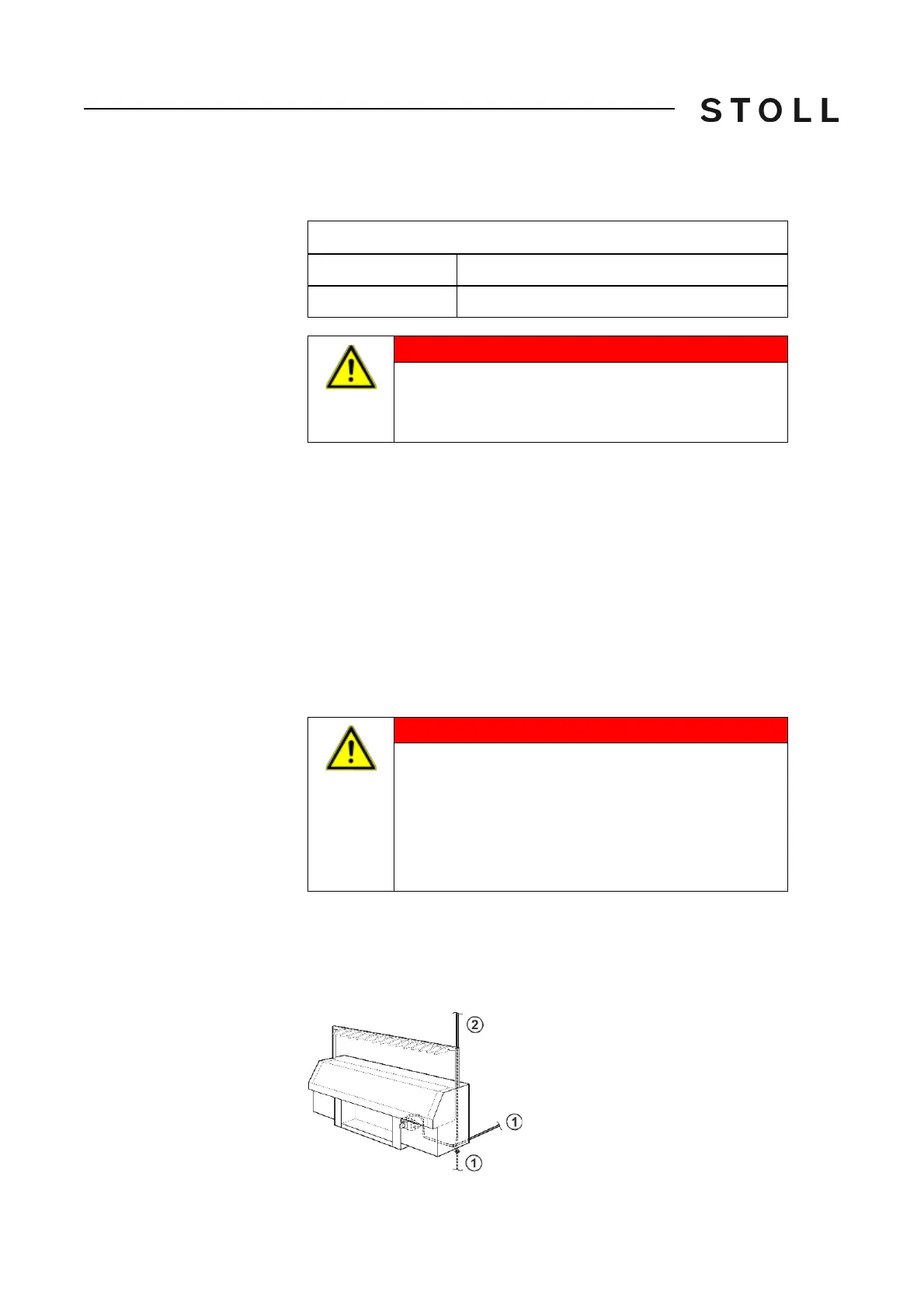

Le
ad the
mains supply cable to the ri
ght control cabinet:
 via the floor (1)
 coming from the ceiling (2) through the right support of the yarn guide
device
Mains supply
Mains supply
