67
Assembly and setting up
7
Assembling machine

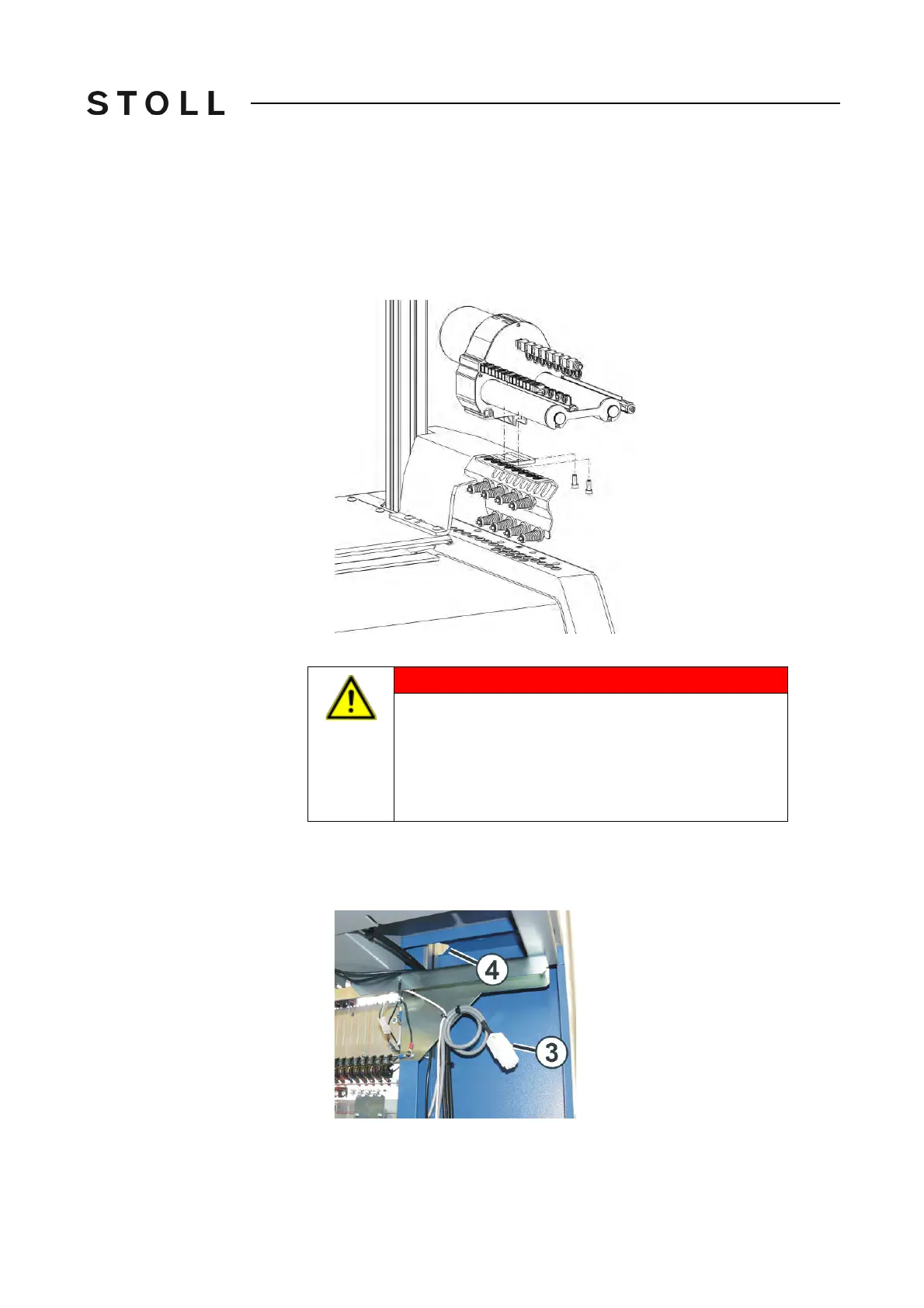

7.2.8 Mounting friction feed wheel
Depending on the machine type, the friction feed wheel is already mounted.
Mounting friction feed wheel:
1. Screw the friction feed whee
l on the holder.
Mounting the friction feed wheel
Mounting the friction feed wheel
DANGER
Life-threatening high voltage!
Electrical shock may cause death or seri
ous injuries.
➜ Set machine main switch to "0".
➜ Secure the machine against being switch
ed on
again.
2. Open the rear panel segments.
3. Route the cable (3) for the friction feed wheel toward the outside thro
ugh
the opening (4).
Laying the cable
Laying the cable
4. Plug the cable into the friction feed wheel.
5. Repeat the process on the other machine side.
