Assembly and setting up
7
Assembling machine

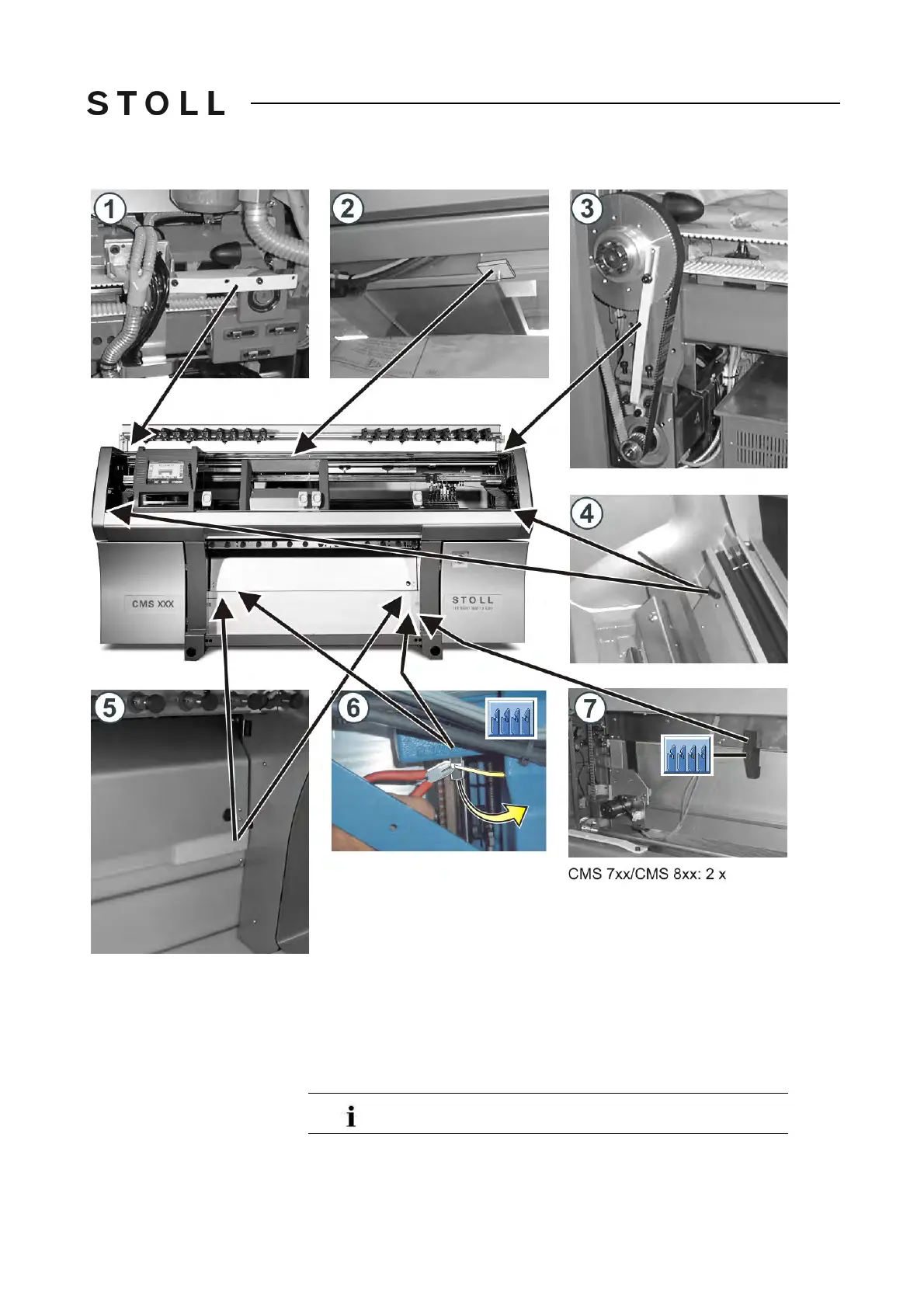

Fixing spots for transport locks
Fixing spots for transport locks
Transport lock for:
1 Carriage 5 Cover at comb take-down
2 Touch screen 6 Comb Take-down
3 Drive 7 Comb take-down (2 pieces for CMS 7xx and CMS 8xx)
4 Left and right cover
Preserve the transport locks.
