70
7 Assembly and setting up
Assembling machine
7. If the left edge of the carriage (1) is within the needle bed, press the
engaging rod downwards.

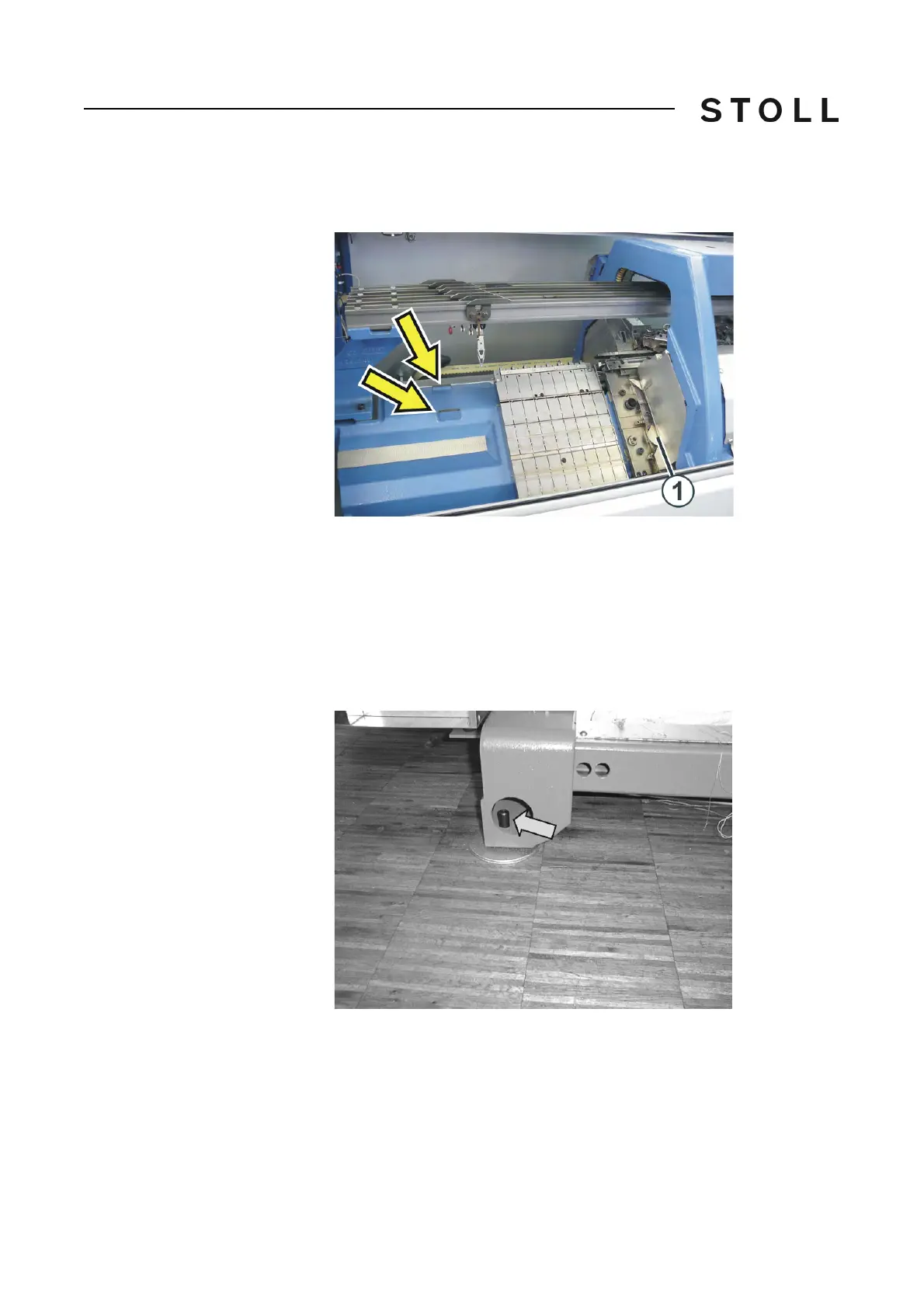

Carriage in the needle bed position (the covers were opened for a better overview)
"Carriage in the needle bed" position (the covers were opened for a better
overview)
8. Open covers.
9. Lay the spirit level on the support surface
s on the left side of the needle
bed.
10. Align the knitting machine with the grub scre
ws. Execute this at the front
and rear. The grub screws for aligning are in the accessories of the
machine.
Grub screws for aligning the machine
Grub screws for aligning the machine
