3.4 – Connecting the DVR to the Mains Supply

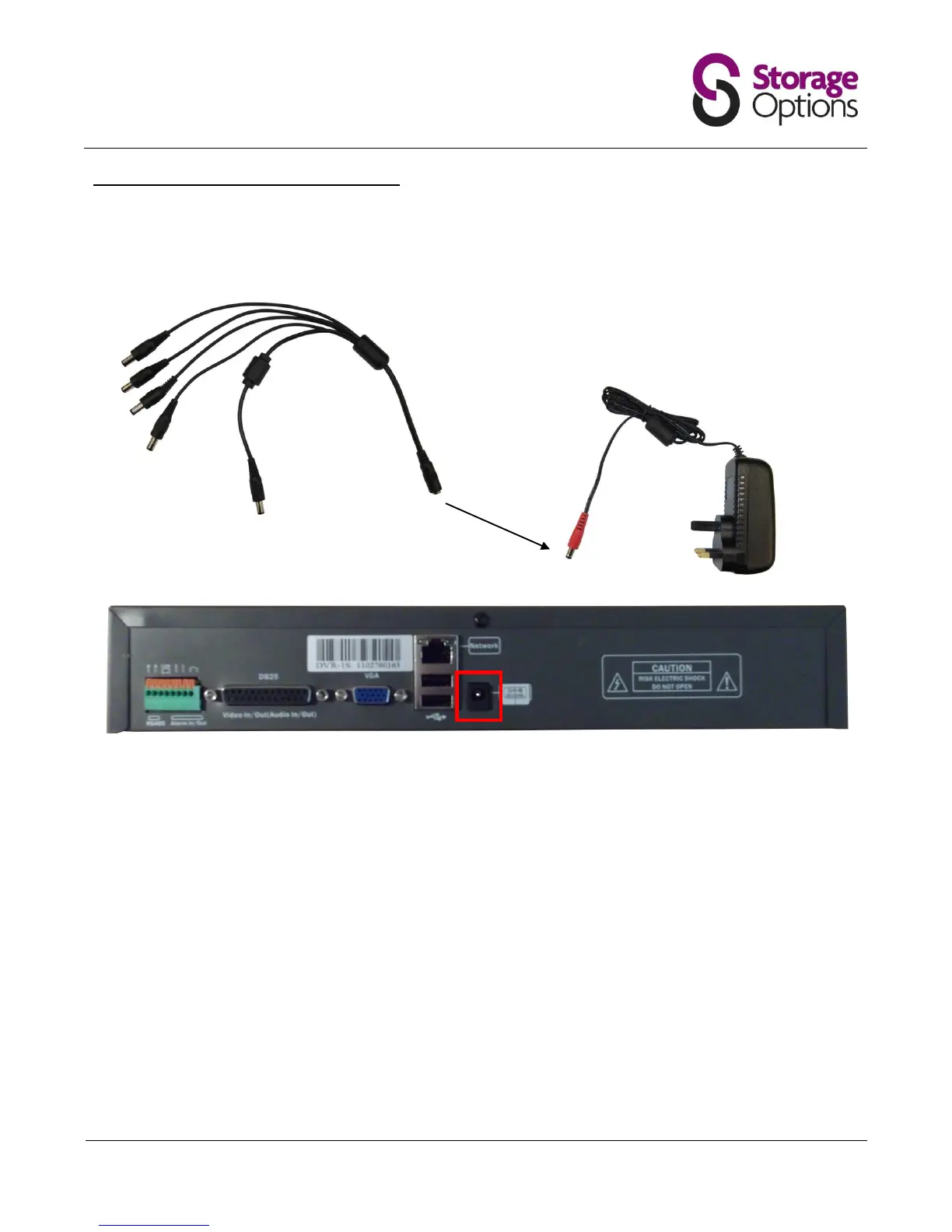

Please connect the included multi mains adapter to the “DC12V5A” connection on the back of the DVR and to each
camera as explained in the diagrams below.
A: 4x power plugs connect to each camera cable
B: 1x power plug to connect to “DC12V5A” on DVR unit
C: 1x power socket connects to mains adapter (below)
Connect the mains adapter to a standard 240V UK 3-pin mains socket. Connect the DVR to the mains last, as it will
automatically switch on when plugged in.
