Wiring Recommendations

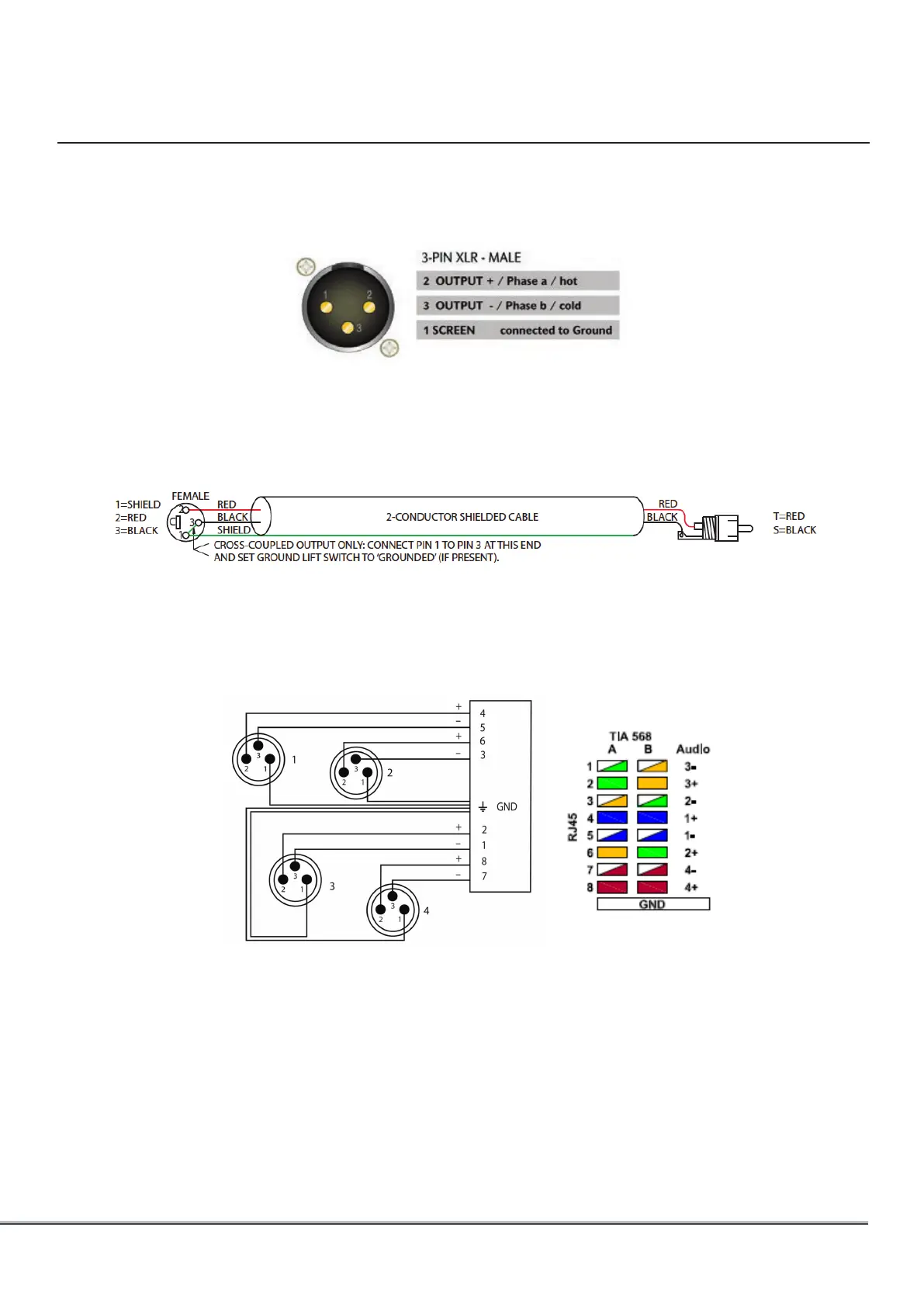

1. XLR pin out
To connect the ISP to an amplier, you must use male to female XLR cables. The connector in the ISP is
a Male XLR. We recommend up to 3m cables.
2. XLR to RCA unbalancing cable
In some cases, it might be required to connect to ampliers with unbalanced inputs. In such case, the
wiring should be done as shown.
3. AES/EBU RJ45 connector pin out
The Multichannel Digital Inputs and Outputs options use RJ45 cables to carry the AES/EBU signals. The
pinout of the RJ45 connectors on the ISP is described herewith with the corresponding XLR connector
wiring.
4. USB ports
There are two USB ports available used for StormMonitoring microphone connection and USB upgrade
when no network access is available. The 2x ports can be used to provide 5V power supply in the limit
of 500mA maximum total consumption for the two ports.
