ISP Immersive Sound Processor
7
11. IR
IR input and output are provided via 3.5mm
jacks for optional control via IR remote.
12. Trigger Out
Four separate trigger outputs are provided to
control power of certain connected devices.
See “Triggers” on page 32 for configuration
information. Each trigger is 12V / 150mA
max. and must not be used for passive daisy
chaining.
13. Digital Inputs
Three Coaxial and 3 TOSLINK Optical digital
inputs are provided for connection of legacy
digital sources.
14. Analog Inputs
Eight RCA inputs and one XLR balanced input
are provided and can be used as following
depending on the “Input Settings” on page 14:
• 4x stereo pairs,
• 1x 7.1 input,
• 3x stereo pairs with XLR input,
• 1x 5.1 input with XLR input.
When connected as a 7.1 input, the channel
assignment is as follows, clockwise from top
left: LF, CF, LS, LB, RB, RS, SUB, RF.
15. Downmix Output
A stereo pair of XLR outputs is provided as
a dedicated 2 channel downmix output. of
whatever audio is playing in the selected
theater or Zone2 source activated. To
configure, see “Parameters” on page 32.
Downmix may be enabled for selected
presets. See “Presets” on page 35.
16. Analog Outputs
Sixteen XLR analog audio outputs are
provided by default and fully assignable to
theaters or zones. See instructions starting
with “Building a Theater - Defining Channels”
on page 16. Outputs may also be remapped.
See “Output Mapping” on page 25. Pin 2 hot.
17. Optional Analog Outputs
One optional module is available to allow for
up to 16ch additional analog audio outputs,
offering total 32ch XLR outputs to the ISP.
18. Optional Digital Inputs
One optional module is available to allow for
up to 16ch of AES/EBU audio streams to be
provided through 2x RJ45 connectors. See
“Settings” on page 34.
19. Optional Digital Inputs/Outputs
Two optional modules are available to
support various digital audio interfaces.
One module with 32ch outputs in AES/EBU
format over 4x RJ45 connector and one with
32ch Inputs/Outputs in AES67/Dante Audio
over IP format over 2x RJ45. See “Settings” on
page 34.
20. Rear Panel Fan
From time to time, the ISP may automatically
turn on the fan to draw cool air through the
ISP and out the back. Do not obstruct the fan
or any airflow vents on the chassis.

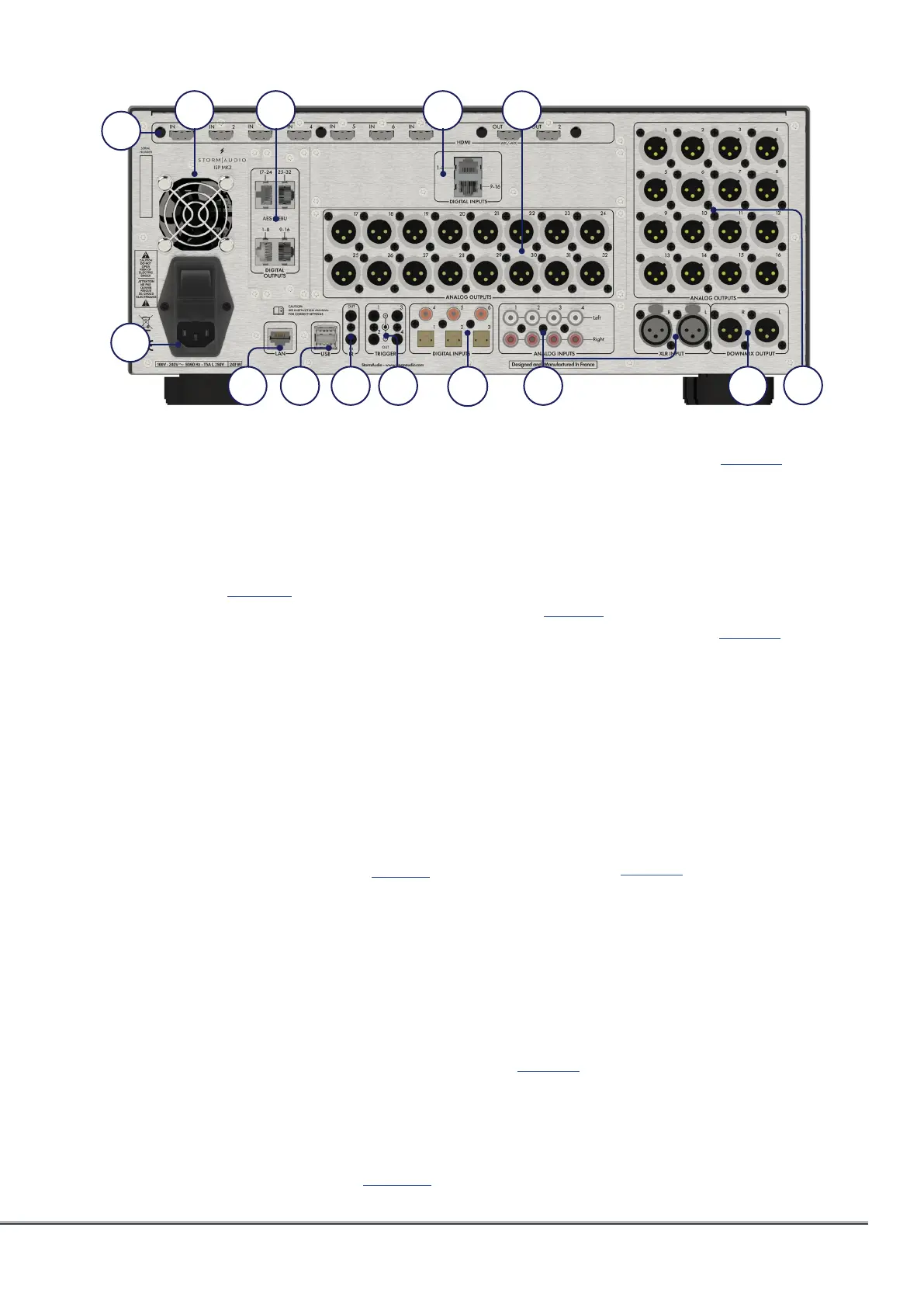

9 10 12
13
18
14 15
16
11
7
8
17
20 19
