Site Preparation Guide Site Preparation Tasks
Page 8

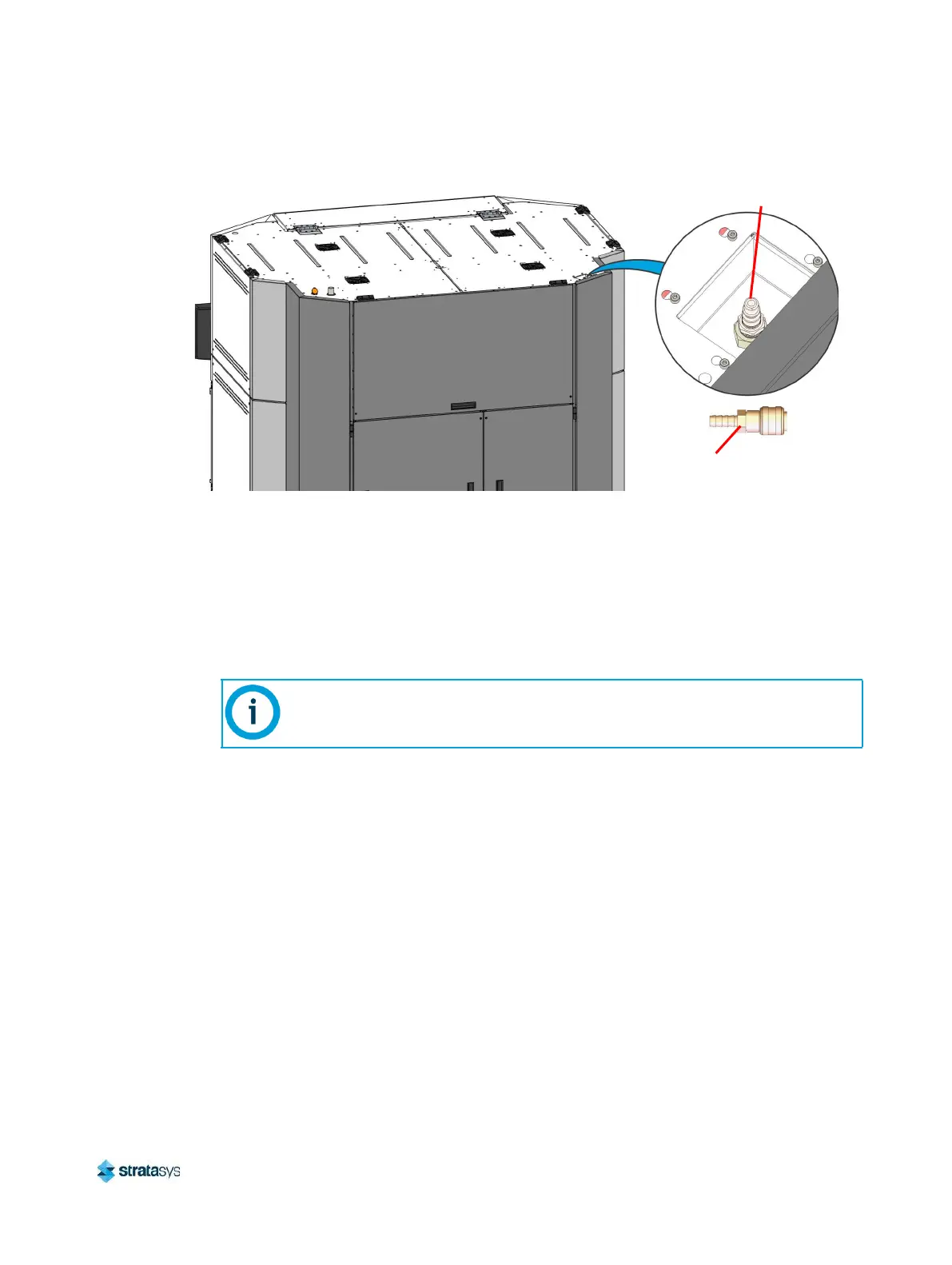

Figure 4: Compressed Air Connection Location
There are 3 options for coupling the compressed air source:
• Clamp a 3/8 inch ID hose to the installed female removable fitting (the female has a 3/8
inch hose barb).
• Attach the female half of the quick disconnect to the male coupling half (i.e., if the
installer does not want to use the hose barb). The female coupling must receive a male
nipple meeting dimensional standard A-A-59439,Body Size 3/8"/ISO-6150-B-15.
• Remove the installed male/female quick disconnect and attach to the 1/2 inch NPT(F)
thread.
This method will not allow a quick disconnection from the air supply.
3/8” Compressed Air Fitting
Female Fitting
(Included with Welcome Kit)
To Next Page
