Electrical Service Connection
1. Route the customer supplied power cable through the power inlet port at the top of the
printer down to the line filter inside the electrical disconnect box.

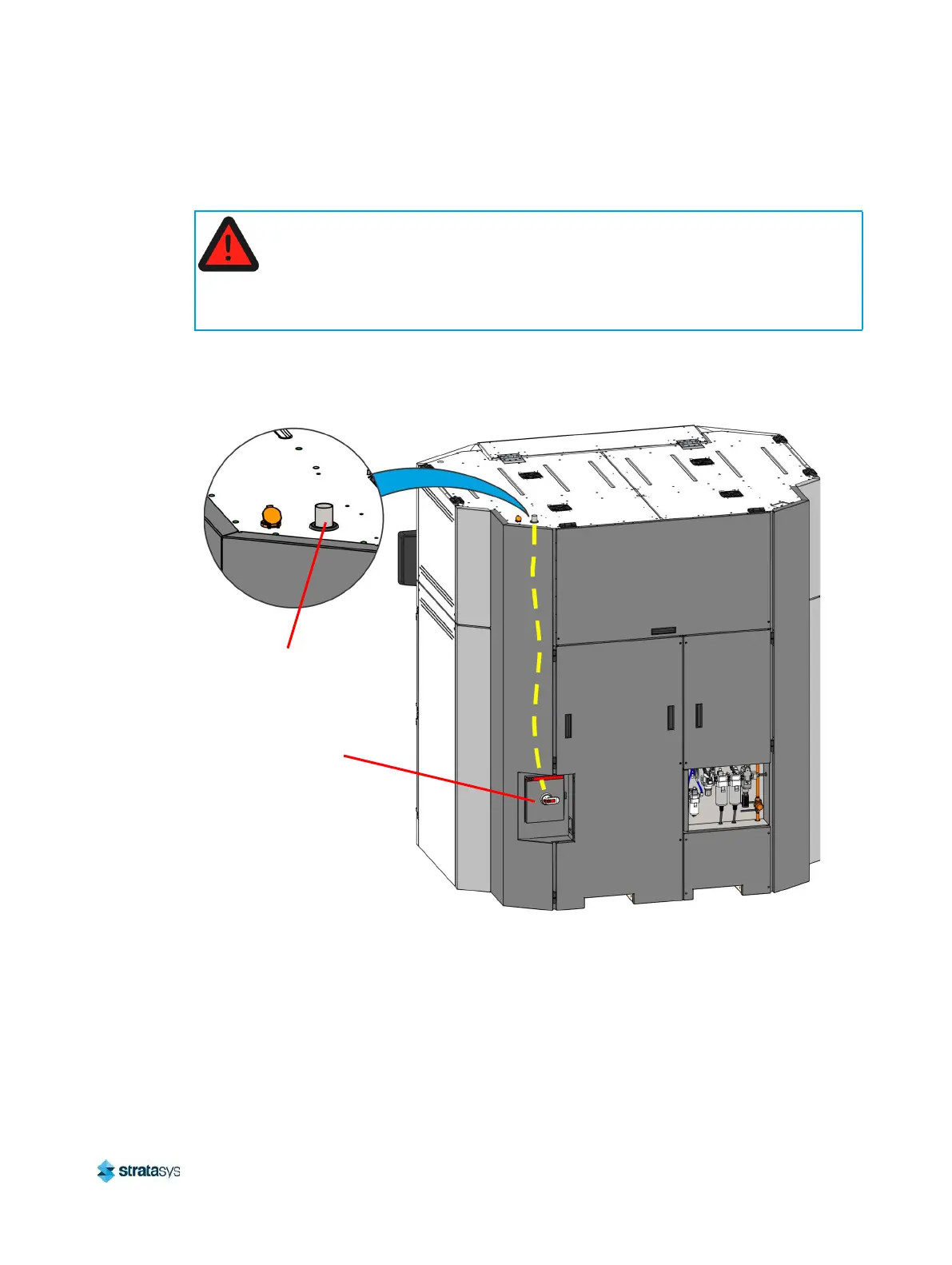

Figure 25: Routing the Power Cable
2. Open the electrical disconnect box.
Warning:
A licensed electrician must perform all wiring from the service connection to the
system - including all connectors, cables, and proper strain relief.
Comply with all applicable local and national electric codes.
Electrical
Power
Disconnect Box
Inlet Port
