Site Preparation Guide Site Preparation Tasks
Page 7
Compressed Air Requirements
The system has an onboard pressure regulator. The system has onboard particle
filtration, water, and oil separation.
• Supply pressure at the system: 90-110 psi
• Minimum flow of 13 SCFM
• Less than 35°C (95°F)
• Non-lubricated
• Non-condensing
• Connection: Dimensional standard A-A-59439, 3/8” Body Size (also
conforms to ISO 6150-B-15 standard)

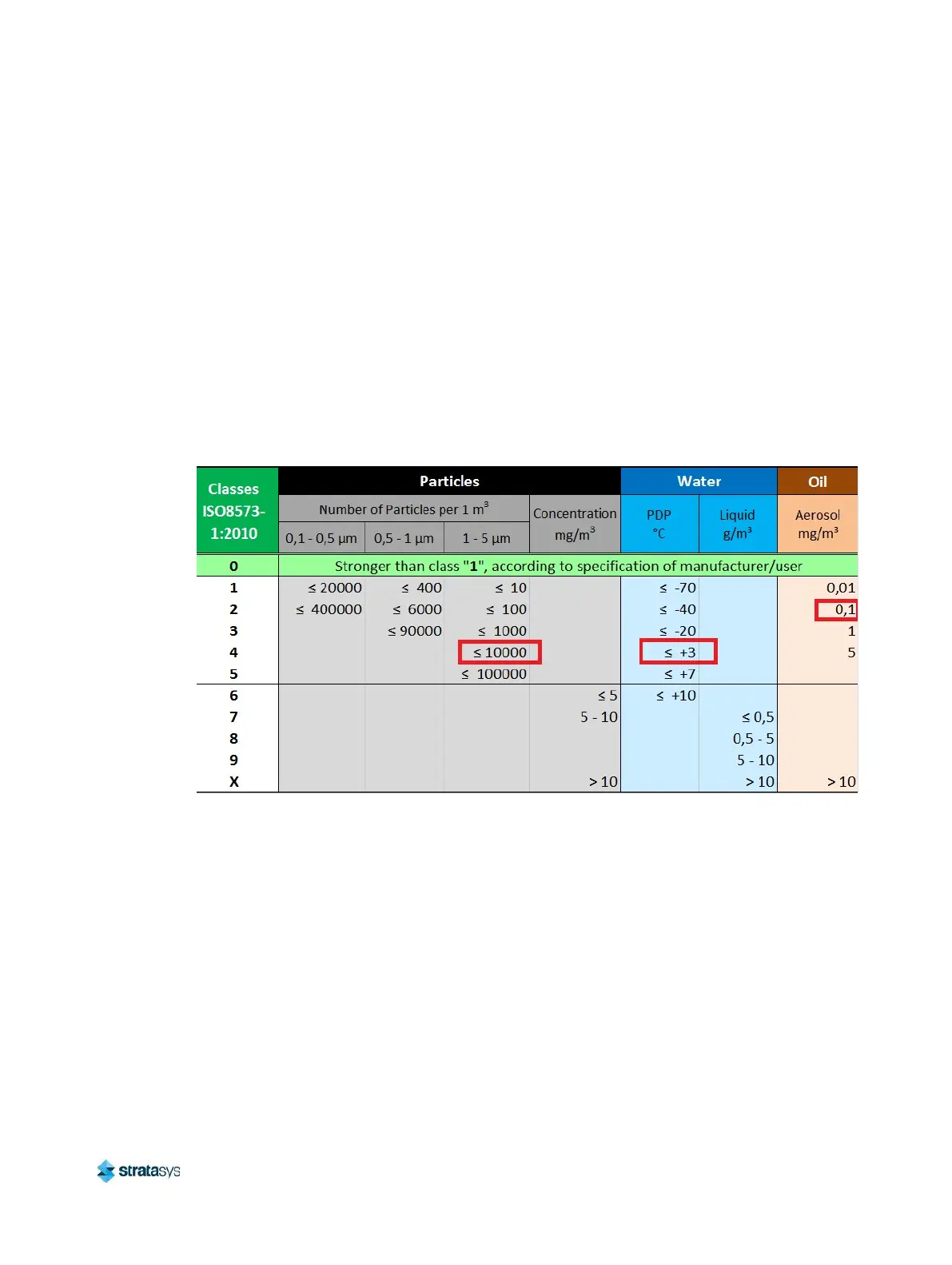

• DIN ISO 8573-1 Quality of Particles: Class 4, Humidity and liquid
water: Class 4, Oil: Class 2
