Site Preparation Guide Preparing for Installation
Page 21
28. Open the left gantry service access door.
29. Remove the tie wrap that secures the local Z assembly X-motion carriage to the end of the
X bridge. See Figure 23.
30. Remove the tie wraps (2) that secure the local Z-motion carriage. See Figure 23.

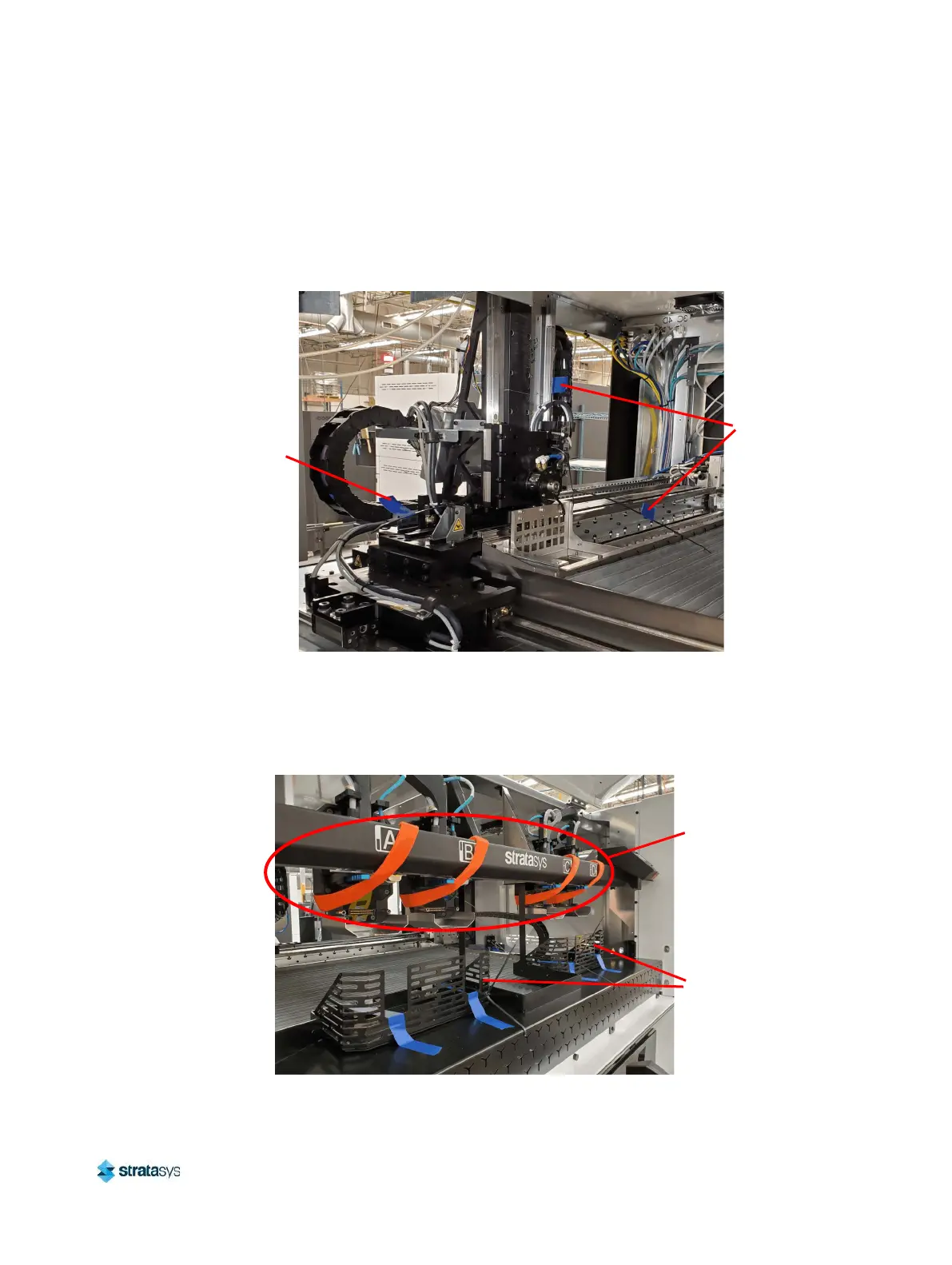

Figure 23: Local Z Assembly Shipping Tie Wrap Locations
31. Open the front gantry hood.
32. Remove the straps (4) that secure the tool bases to their individual extruder stations.
33. Remove the tie wraps and tape securing the hot end shields.
Figure 24: Extruder Tool Base Shipping Strap Locations
34. Remove the protective film from the front interface touchscreen and all glass surfaces.
Local Z Motion
Tie Wraps
Carriage
Tie Wrap
Carriage
X Motion
Tool Base Straps
Hot End Shields
To Next Page
