27. Using a 5 mm hex wrench, remove the screws (2) and the red blocks (2) that secure the X
bridge to the back of the gantry. Retain the red blocks and screws for shipping purposes.

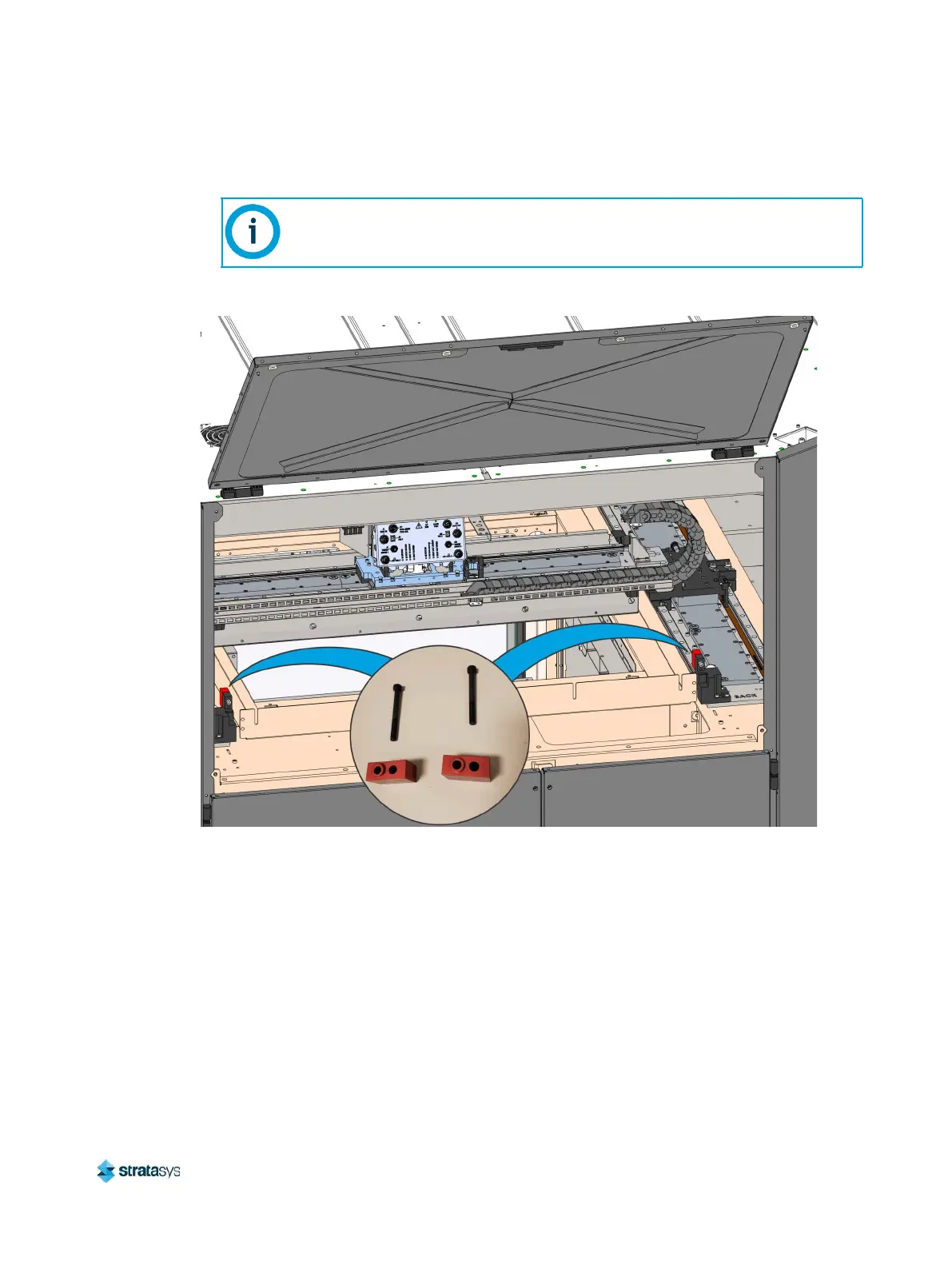

Figure 22: X-Bridge Shipping Blocks
Hold the red blocks while removing the screws to prevent them from falling into
the gantry.
