Site Preparation Guide Electrical Service Connection
Page 23
3. Connect the power cable wires to the line filter as described below:
a. Connect the ground wire to the printer grounding lug.
b. Connect the supply wires.
• Line A connects to terminal L1.
• Line B connects to terminal L2.
• Line C connects to terminal L3.
• Neutral connects to terminal N.

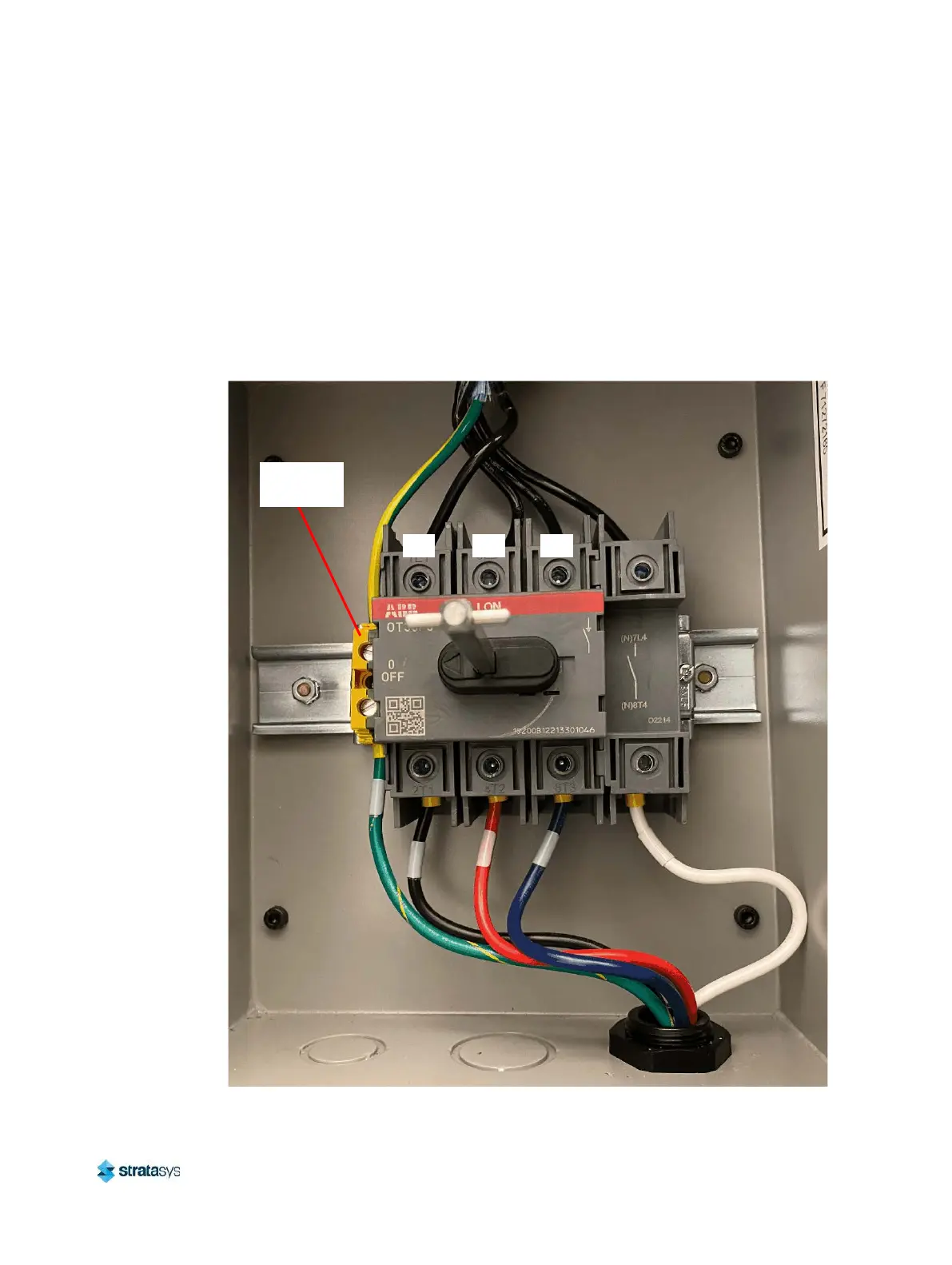

Figure 26: Line Connections
4. Close the electrical disconnect box.
