Stratasys J826 User Guide 4 Operating and Maintaining the Printer
DOC-28000 Rev. I 4-44
To clean the roller waste collector:
1. Prepare—
❒ M2.5 and M2 Hex (Allen) keys
❒ disposable cleaning gloves
❒ 90% isopropanol (IPA—isopropyl alcohol) or ethanol (ethyl alcohol)
❒ cleaning cloth
❒ cotton swabs (Q-tips or similar)
❒ mirror
❒ flashlight
2. From the Option menu, select Go to Head Inspection Position.
3. Put on the gloves.
4. Remove the right UV-lamp assembly:
a. Disconnect the UV power cable and the fan power cable.

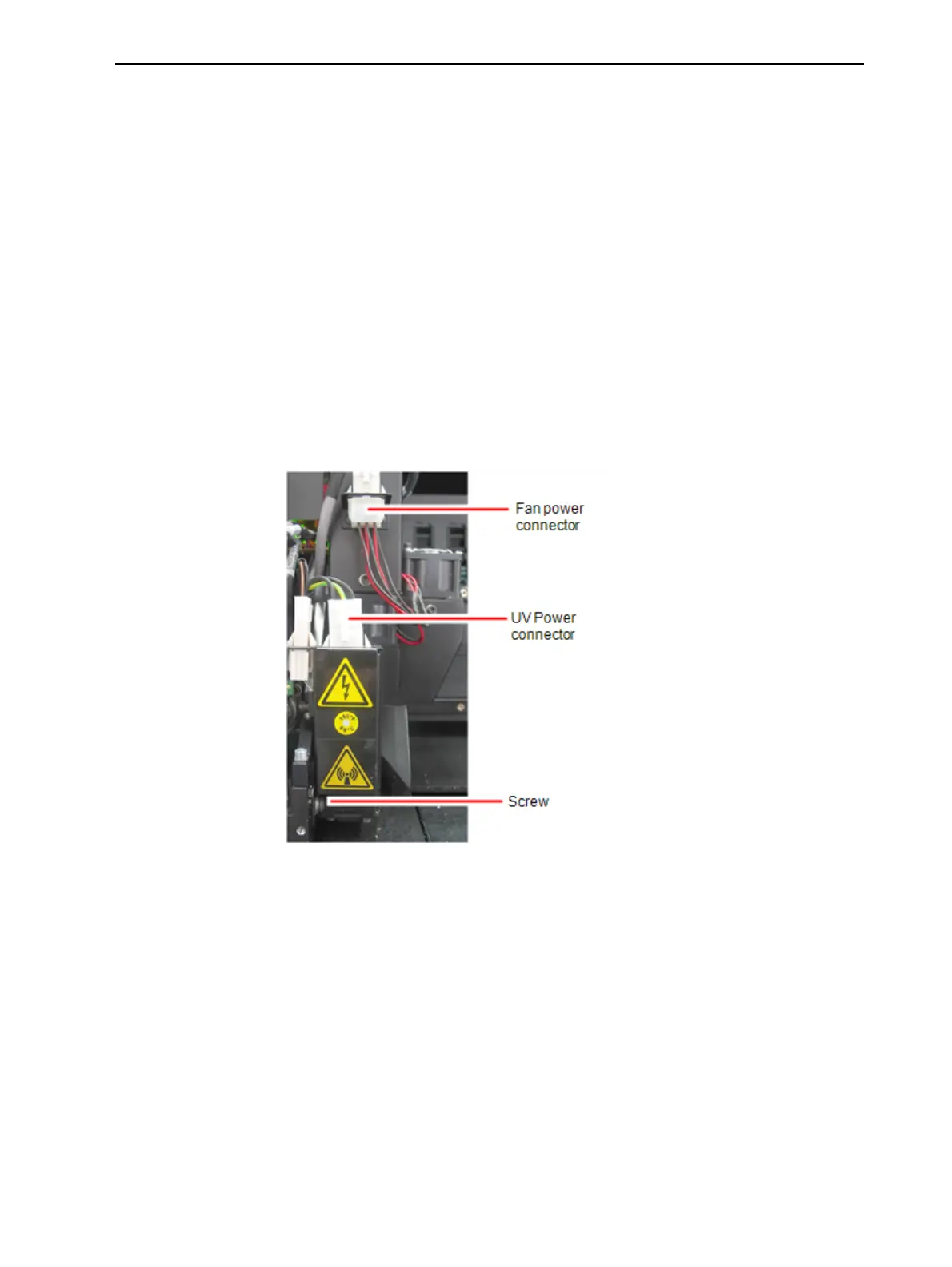

Figure 4-51 Disconnecting the right UV assembly
b. Remove the screw that secures the right UV lamp, and then pull and lift
up the UV lamp.
