5. Wheninstructedtodoso,placethetransparencyonthebuildtray—next
totheleftandrearedgesofthetray,asshowninthefollowingfigure.

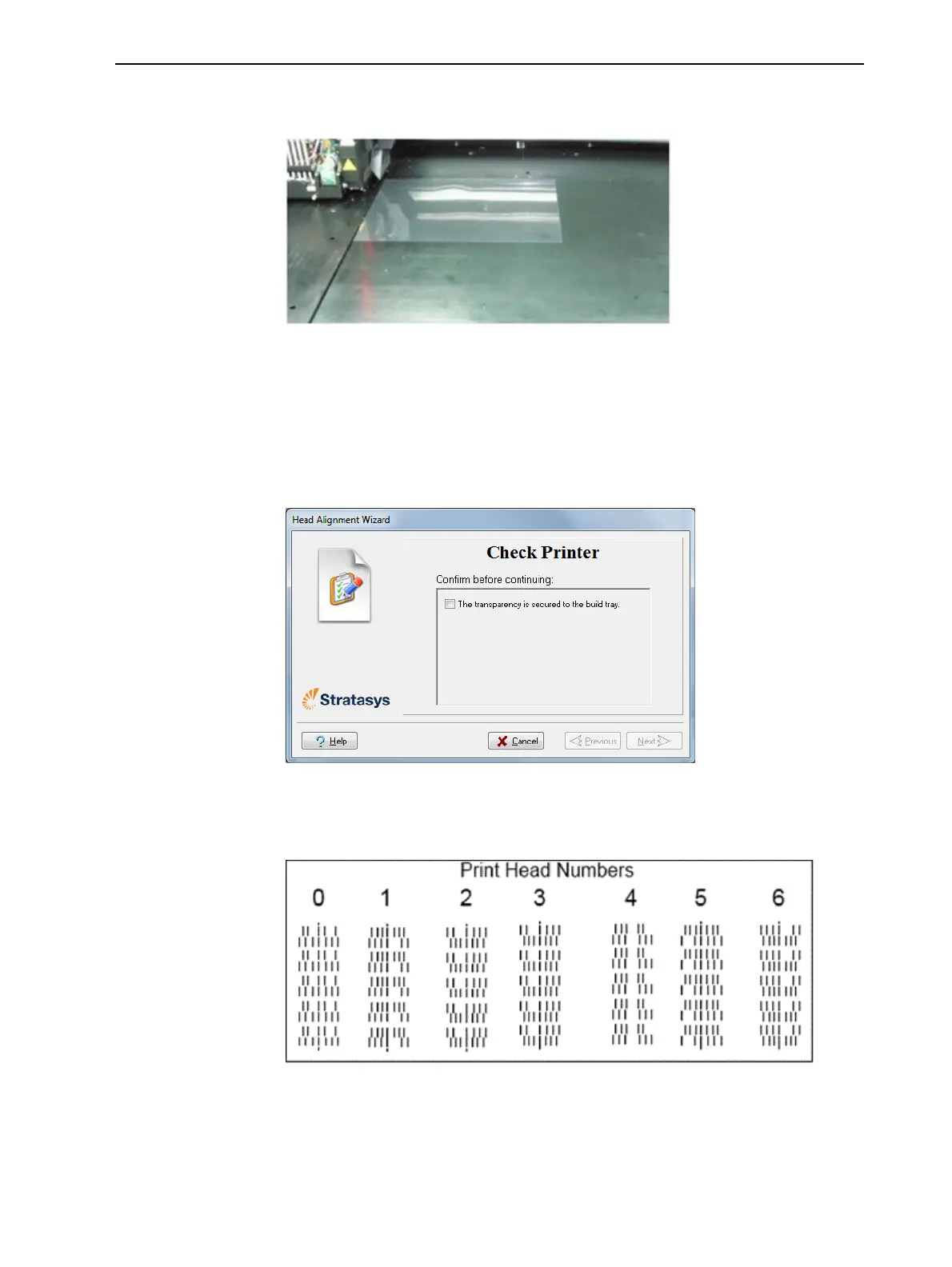

Figure6-47Positioningthetransparencyonthebuildtray
6. Makesurethatthetransparencysheetislyingflat,andtapeittothetray.
7. Inthewizardscreen,selectthecheckboxtoconfirmthatthe
transparencysheetisonthebuildtray,andclickNext.
Theprinterprintstheheadalignmenttestonthetransparency.
8. Whenthefollowingscreenappears,removethetransparency.
Figure6-48HeadAlignmentwizard—steps8–10
Thetransparencysheetisprintedwithsetsofverticallinesinseven
columns,eachshowingtheresultsfromadifferentprinthead.
Figure6-49Samplehead-alignmenttest
Note: ThereisnocolumnforheadH7becauseitsalignmentisusedasa
referenceforaligningallotherheads.
