Objet500 User Guide 6 Operating and Maintaining the Objet500 3DPrinter
DOC-07027 Rev.E 6-55

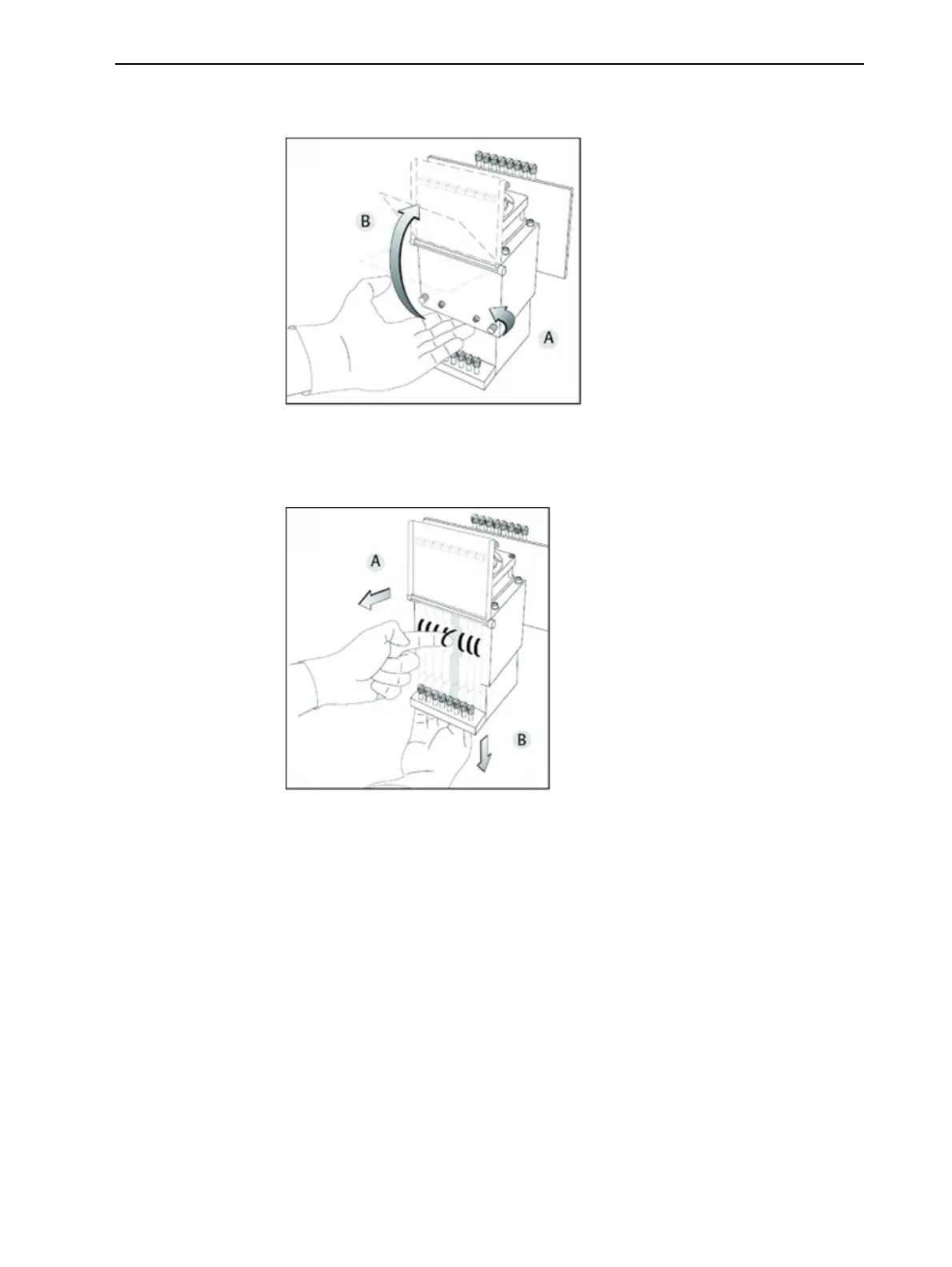

12.Loosenthescrewsonthedoorofthecompartmentprotectingthe
print-headdrivercards(A),thenpullandliftupthedoor(B).
Figure6-74Openingtheprint-headcompartment
13.Pulltheprint-headdrivercardoutofitssocketsothattheheadisfree(A),
andremoveitfromthebottomoftheprintblock(B).
Figure6-75Releasingtheprint-headdrivercardtoremovethehead
