Objet500 User Guide 6 Operating and Maintaining the Objet500 3DPrinter
DOC-07027 Rev.E 6-67

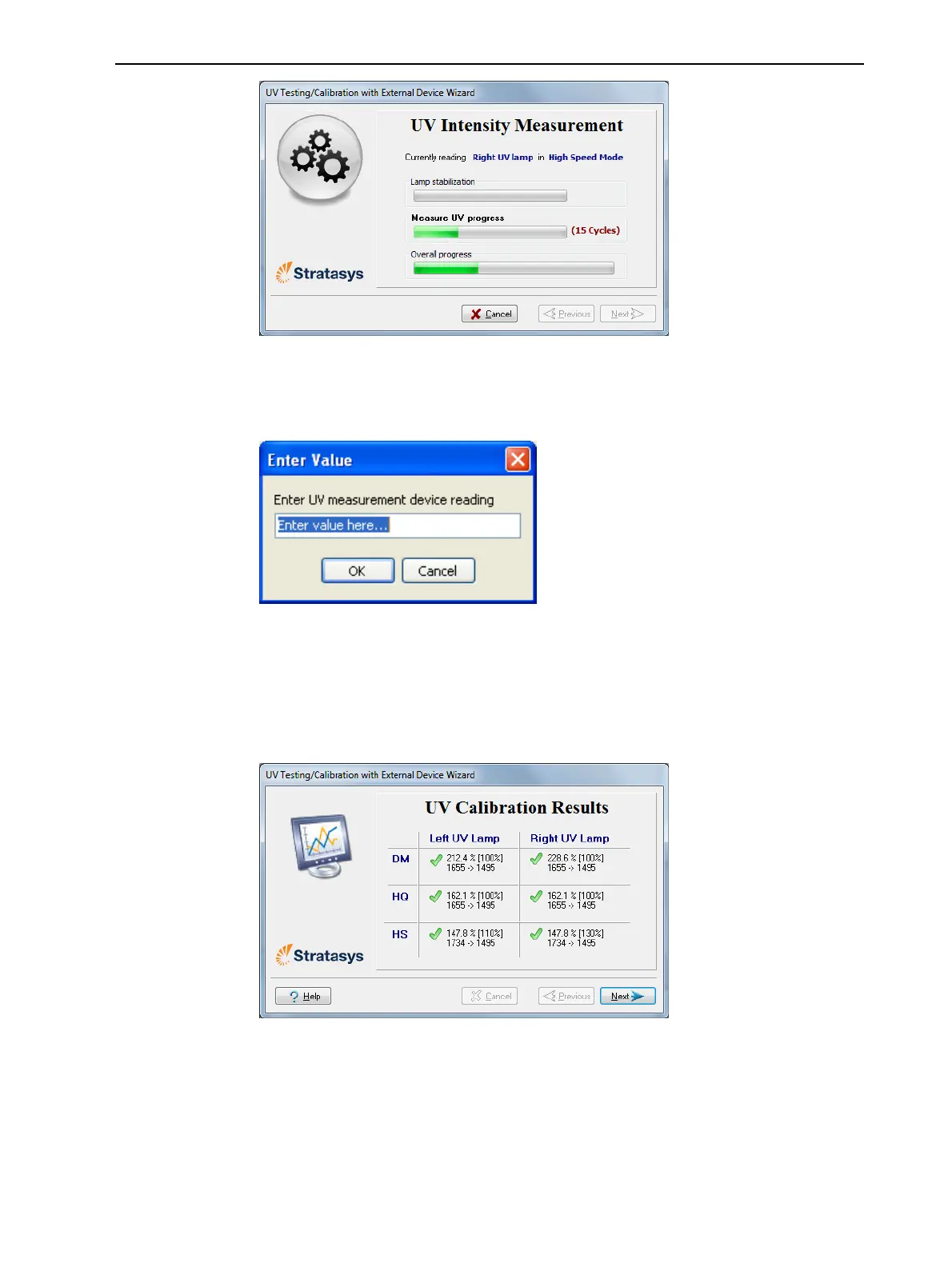

Figure6-97UVmeasurementprogress
Whenusingastand-aloneradiationmeter,resetthemeterandenterthe
reading(measurement)whenyouarepromptedtodoso.

Figure6-98UVMeasurementdialogbox
IftheUVlevelmeasuredisnotacceptable,thewizardcalibratestheUVlamp
byadjustingthecurrentsuppliedtoit,andthentestsitagain.
WhenallUVtestshavefinished,theresultsaredisplayed,showingthe
conditionofthelampsaftercalibration(seeFigure6-99below).
Figure6-99ResultsandconditionofUVlampsaftercalibration
AfterexaminingtheUVcalibrationresults:
1. ClickNext.
2. RemovetheUVsensorandclosetheprintercover.Afterconfirmingthe
itemslistedinthewizardscreen,clickNext.
