Machine with or without gathering device:
The machine requires two needle positions and, depending on sewing drive,
possibly also a reference position.

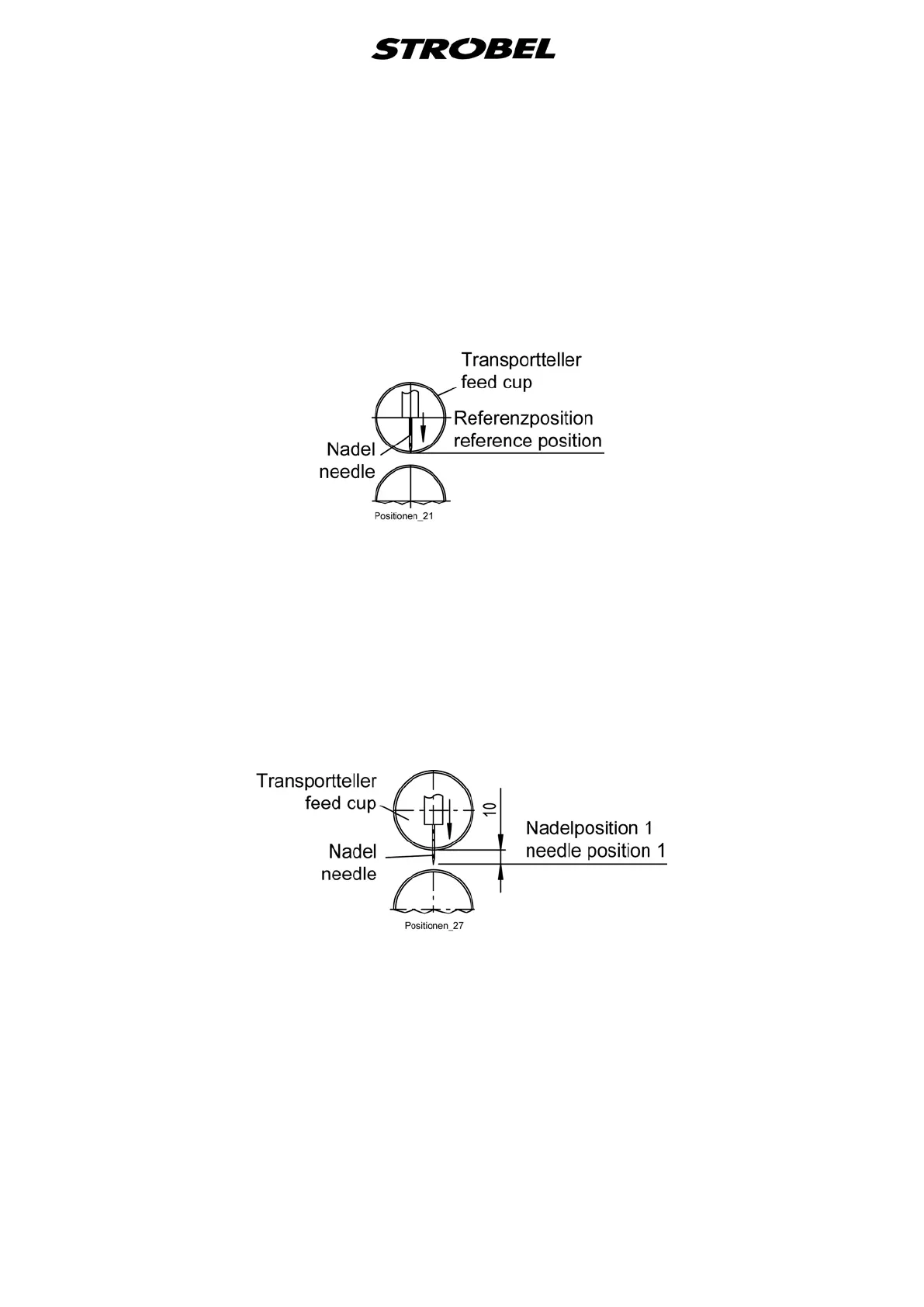

Reference position (Fig. 16):
The reference position needs to be set so that the point of the needle
concludes with the outer plate edge in the direction of the piercing.
Fig. 16
Refer to the enclosed sewing drive instructions for the programming of the
positions on the motor.
Needle position (when stop inside the stitch with pedal position “0” (Fig. 17)):
The needle position needs to be set so that the distance between the
outer plate edge in the direction of the piercing and the point of the needle
is about 10 mm.
The needle position is position 1 at the sewing drive.
Fig. 17
