Strobel 441-1 - Page 54

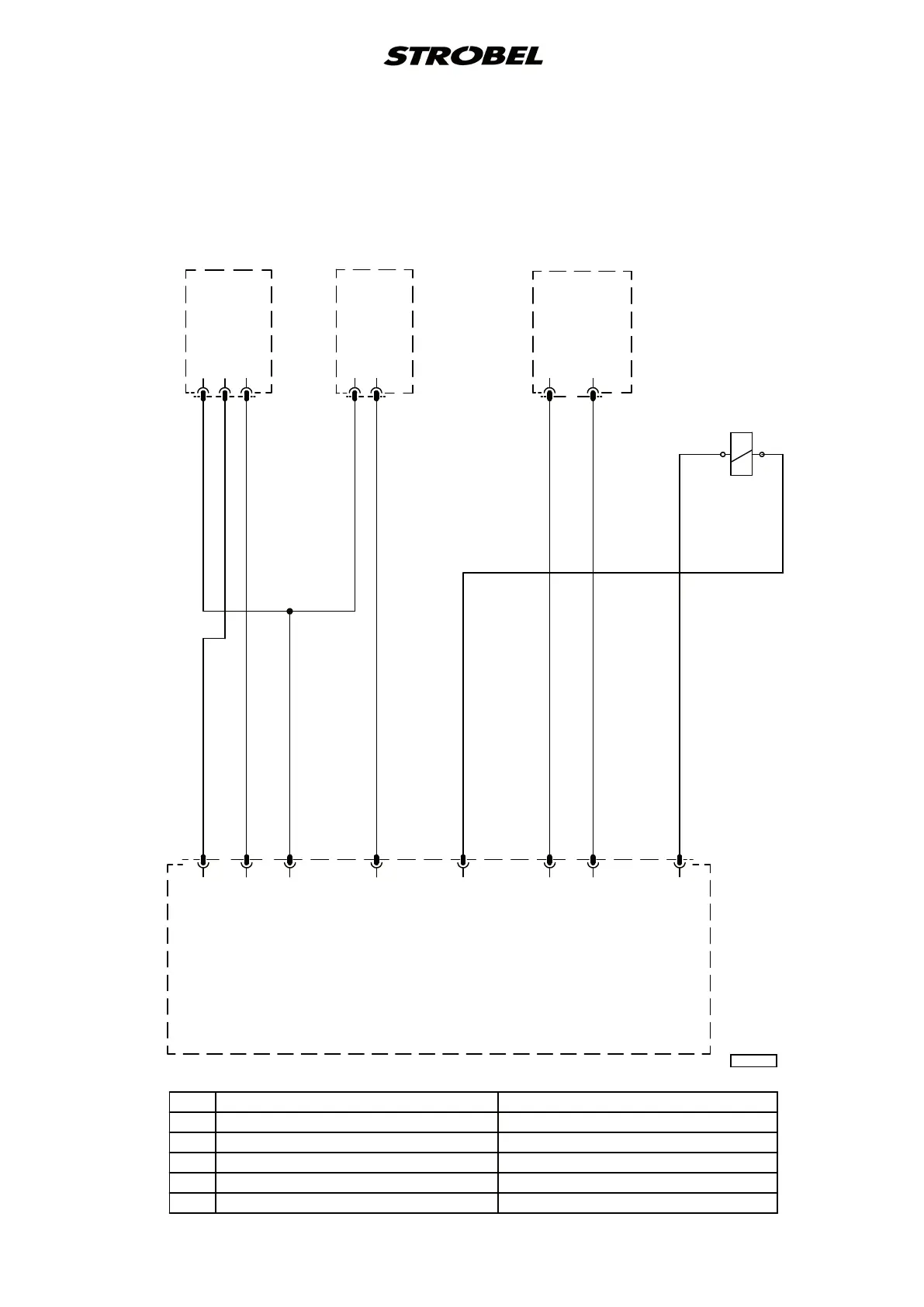

Elekrischer Schaltplan AB425S Kl. 441-2 ab Ausf. 1
Electrical wiring diagram AB425S Cl. 441-2 as of version 1
2 3 4 11 18 26 27 29
1 5 7
2 3
1 2
0V +5V Analog1
+5V
Analog1
0V
Knietaster
knee switch
+24V +24V
Impuls FA
impulse FA
Einhaltevorrichtung (EV)
gathering device (EV)
EV 1V1
X10
X11
X12
ST2
Nähantriebsteuerung
Sewing drive control
br - bn
br - bn
ws - wh
ws - wh
ws - wh
ws - wh
br - bn
br - bn
br - bn
br - bn
gn - gn gn - gn
ws - wh
ws - wh
ws - wh
br - bn
br - bn
1V1 Magnetventil "Lüftung" (LÜ) solenoid valve "lifting" (LÜ)
EV Einhaltevorrichtung gathering device
ST2 Stecker Steuerkasten (Nähantrieb) plug control box (sewing drive)
X10 9-poliger Stecker "Sollwertgeber" 9-pin plug "setpoint device"
X11 RJ12 Buchse "Knietaster" RJ12 bush "knee switch"
X12 2-poliger Stecker "Fadenabschneider" 2-pin plug "thread trimmer"
0V Knietaster knee switch
+24V Impuls FA impulse FA
195.0064
258.10.28
