259.00.67

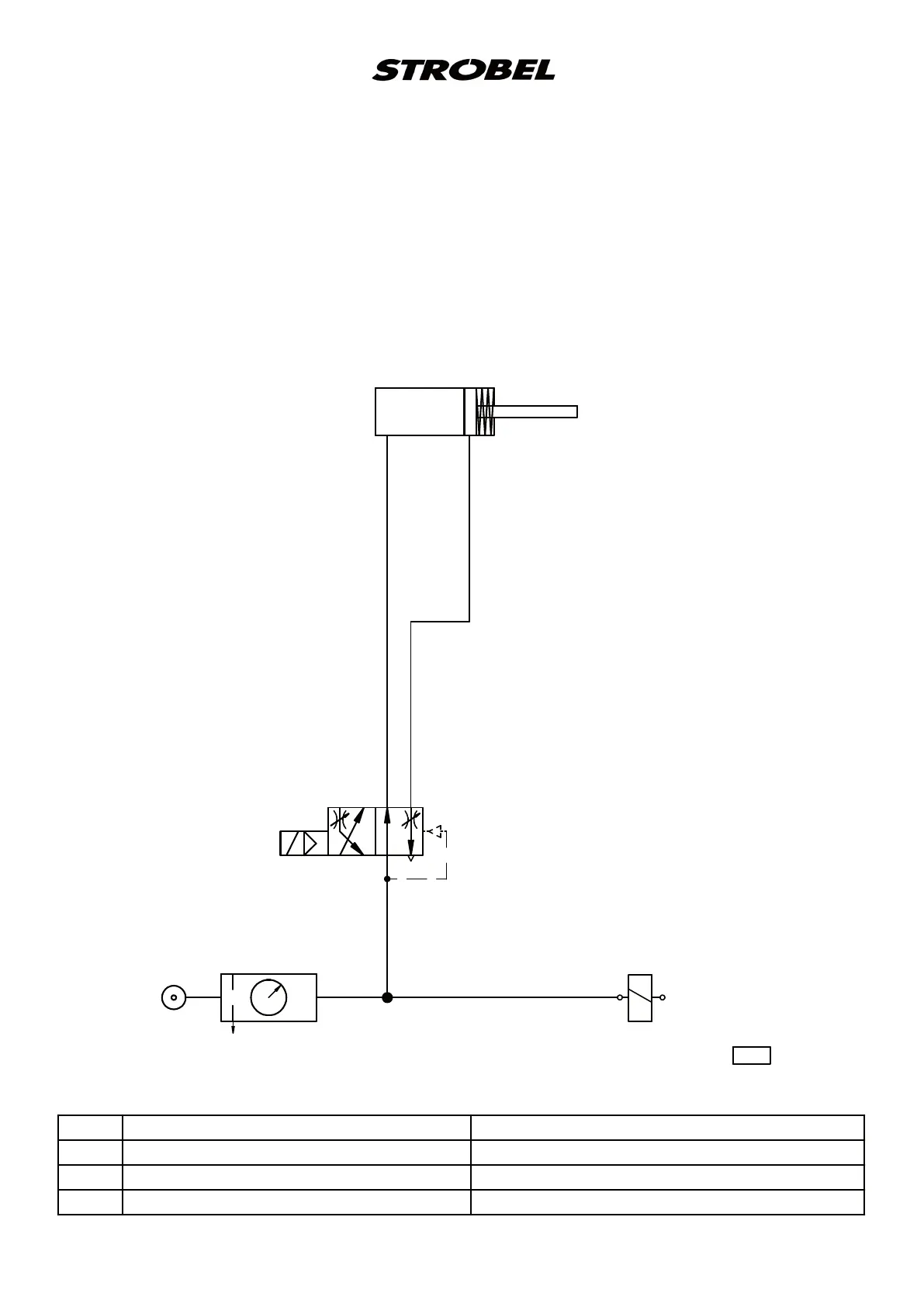

Pneumatischer Schaltplan Kl. 441-2 ab Ausf. 1
Pneumatic circuit diagram cl. 441-2 as of version 1
1 V 1
B
P R
A
0 Z 1 Wartungseinheit service unit
1 V 1 4/2-Magnetventil "Einhaltevorrichtung" (P-EV) 4/2-solenoid-way valve "gathering device" (P-EV)
1 A 1 Zylinder "Einhaltevorrichtung" (P-EV) cylinder "gathering device" (P-EV)
FA Fadenabschneider thread trimmer
B
A
0 Z 1
6bar
10bar max
195.0553
1 A 1
FA
