Strong SRT 6010 - Connecting to Digital Audio Amplifier

PART 1
z
English
11

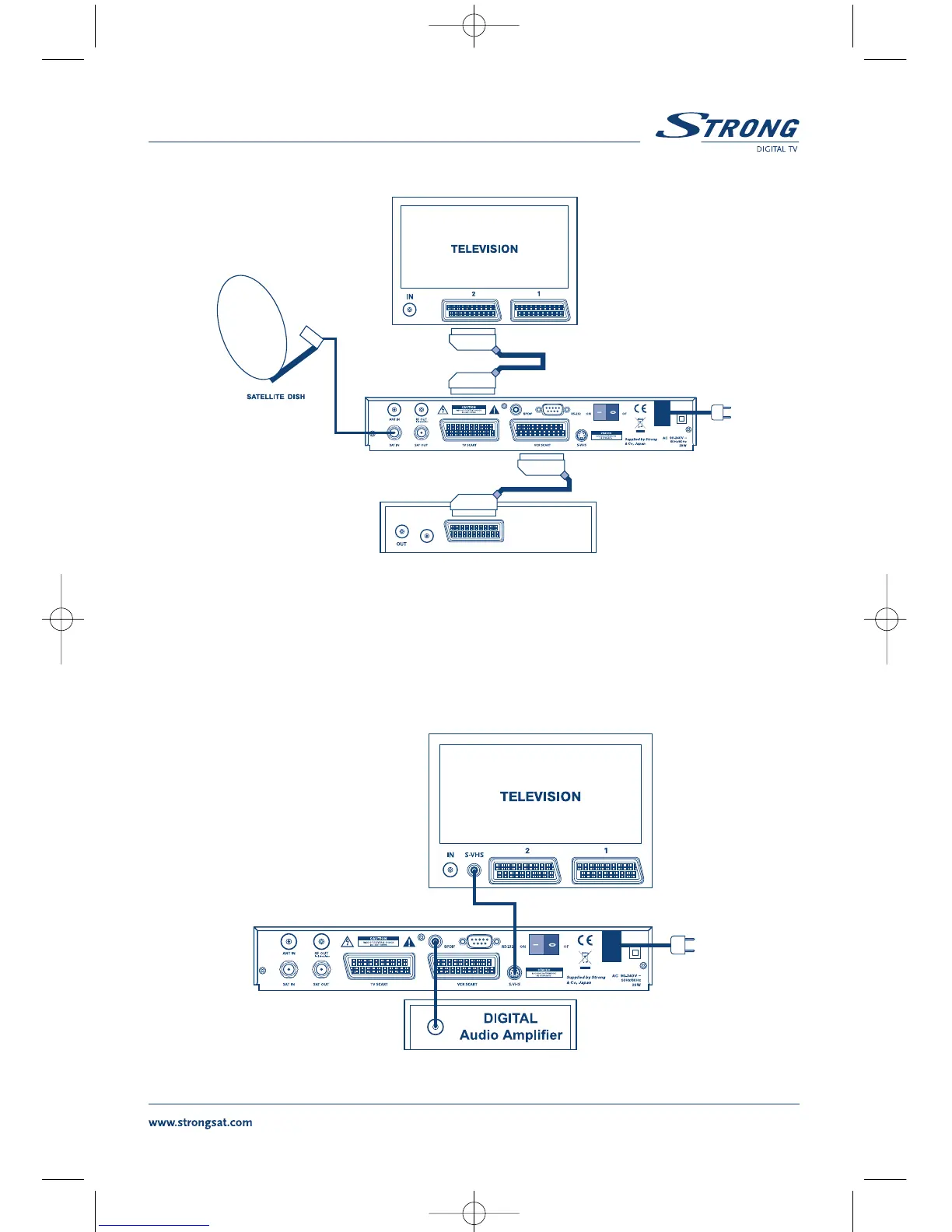

FIGURE 5. Advanced connection of the receiver to the TV set and VCR
3.2 Connecting to Digital Audio Amplifier and to TV-set with
S-VHS connection.
The Digital Audio Amplifier is connected with the receiver from the S/PDIF connector. The TV-set is
connected with the receiver on both S-VHS connectors.
FIGURE 6
IN
VIDEORECORDER
UM 6005-15 ENG 1/26/06 4:18 PM Page 11
